Honeywell Notifier NFS2-640/E User Manual

90 NFS2-640/E Programming Manual — P/N 52742:L2 7/17/14
Releasing Applications How to Program a Releasing Zone
REL CODE BELL Type Code
The following contains information needed to program a Release Code Bell circuit for a NAC
.
 Description
A NAC programmed to pulse an audio or visual device as follows:
• 20 ppm when a the initial zone of a cross-zone activates.
• 120 ppm when a Cross Zone is satisfied.
• Steady when a release occurs.
 Programming
1. Select a NAC (refer to “Modify NAC Points” on page 24) to use as a Release Code Bell
Circuit.
2. Select the
REL CODE BELL Type Code, as shown in the following example (NAC shown).
3. Select the Releasing Zone (R0-R9) for your releasing application.
4. Press the
ENTER key to save, then press the ESC key two times to return to the Program Change
screen.
 Example

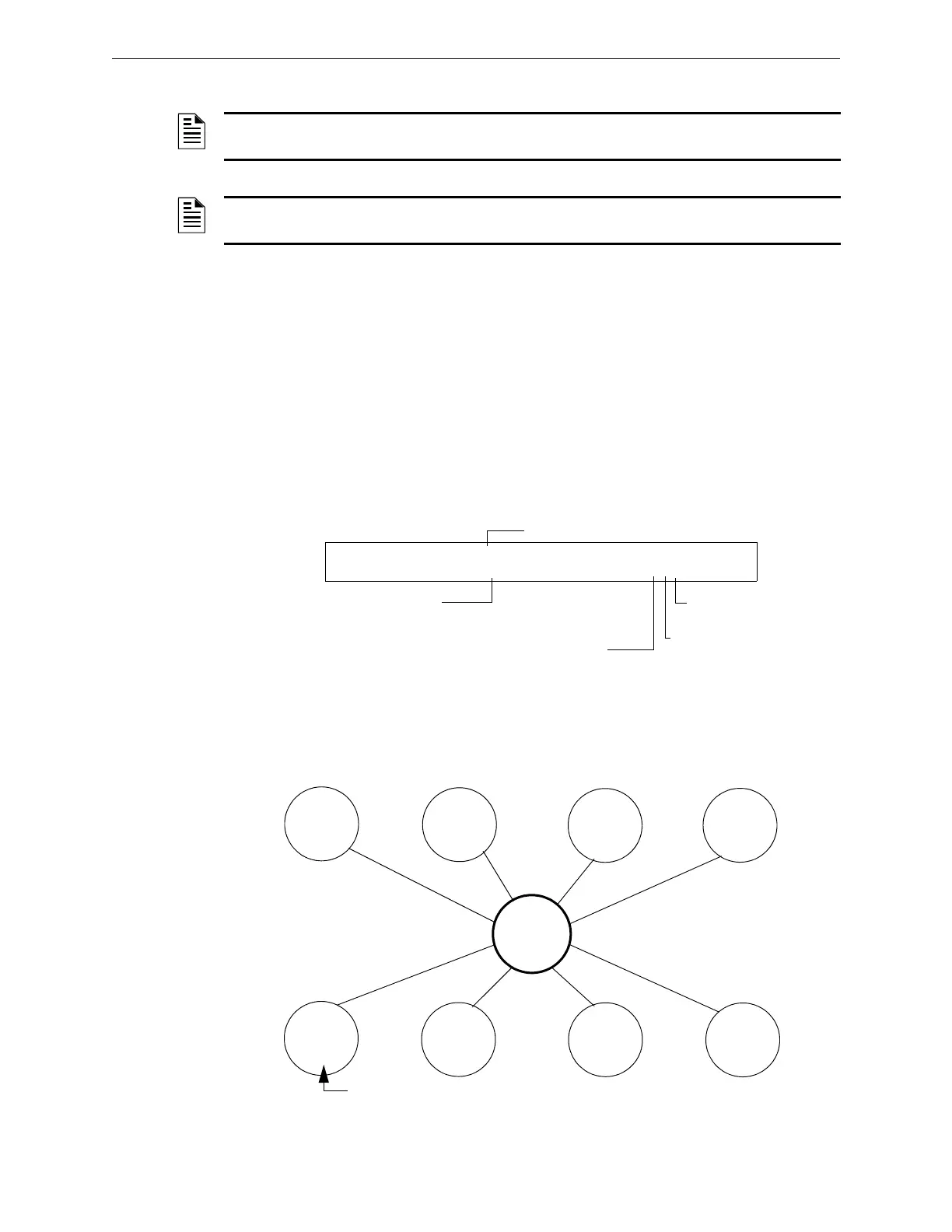

A programming example of a NAC programmed as a Release Code Bell circuit for Releasing Zone R5.
Figure A.20 NAC Configured as a Release Code Bell Circuit
NOTE: An output with a REL CODE BELL Type Code requires the following selections: A
Releasing Zone selection (R0-R9); An input circuit mapped to the same Releasing Zone.
NOTE: For instructions on programming Switch Inhibit, Silenceable, and Walk Test, refer to
“Modify NAC Points” on page 24.
Type Code selection: REL CODE BELL
PROGRM REL CODE BELL FRONT HALLWAY NO. 3
R5 __ __ __ __ I** B03
Releasing Zone
selection (R5 shown)
Walk Test
Selection: * = off
Silenceable: * = off
Switch Inhibit: I = selected
Type Code
REL CODE BELL
Control
Module
B02
B01
B03
R05
Monitor
Module
Detector
Detector
Detector
A NAC programmed with the
REL CODE BELL Type Code activates
simultaneously with other outputs programmed for R05 (B01 and B02).
