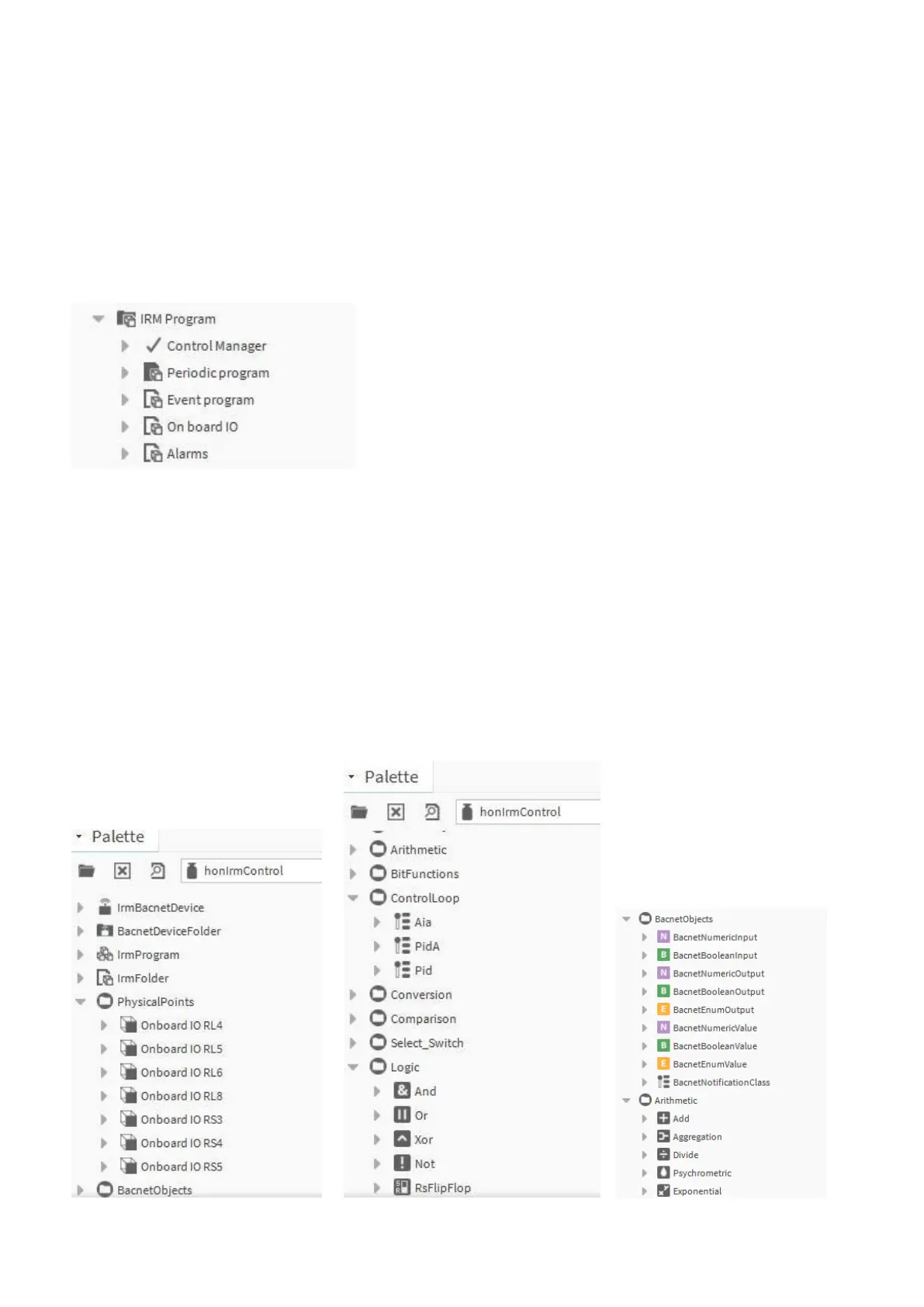

IRM Program in Nav tree
The IRM Program is part of the device and includes the following components:
• Control Manager
• Periodic program
• Event program
• Onboard IO
• Alarms
Wire Sheet and Property Sheet View
The component’s work space can be shown by double-clicking it in the tree and selecting the Wire Sheet view. For the
Control Manager, the Property Sheet displays after double-clicking on the item.
For detailed functional descriptions, please refer to the following sections:
• The Control Manager, p. 50
• Periodic Program, p. 53
• Event Program, p. 54
• Onboard IO, p. 55
• Alarms, p. 58
Control Logic Source / Palette
For creating the application, the “honIrmControl” palette is used which includes all necessary components such as logic
function blocks, terminals, and templates for IRM BACnet devices, IRM programs, and folders
