SPYDER MODEL 5 ENGINEERING TOOL – USER GUIDE
45 31-00282ES-01
WORKING WITH APPLICATIONS – THE IRM PROGRAM
Application engineering includes the creation of:
• Periodic control strategy and/or
• Event driven control strategy
• Hardware layout (onboard IO)
• Alarming settings
Preparing Niagara Work Environment
For working conveniently during application engineering, prepare the work environment by enabling the following
functions in the Spyder Model 5 Engineering Tool:

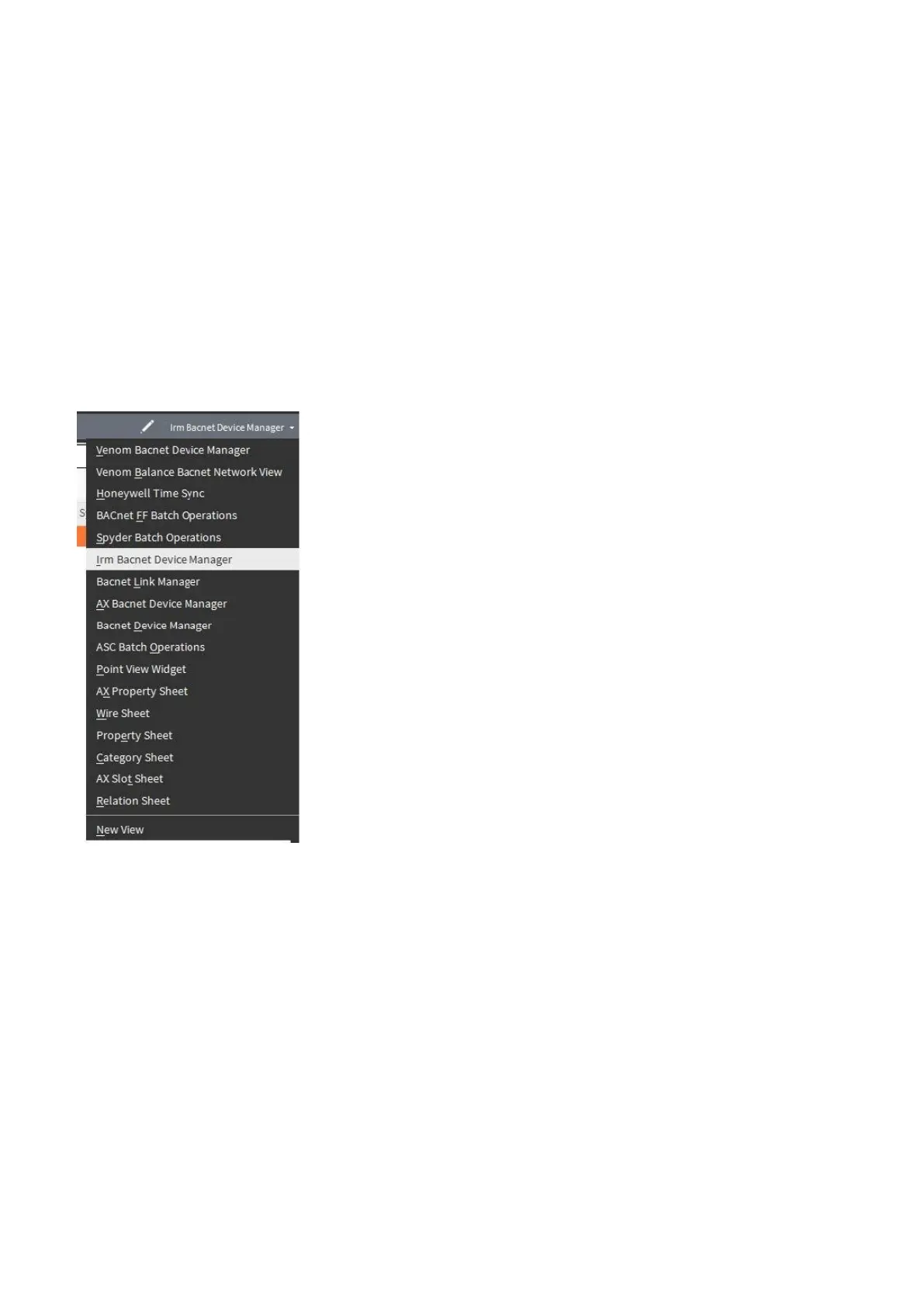

BACnet Device Manager View
Double-click the BACnet network folder in the Nav tree, and then select the IRM BACnet Device Manager view.
IRM Palette
The following palette is available for creating the application:
• honIrmControl - provides control function blocks and templates for IRM BACnet devices, IRM programs, and folders
Open the palette in the Palette pane
• honIrmAppl - provides standard FCU application with all commonly used functionalities.
