SPYDER MODEL 5 ENGINEERING TOOL – USER GUIDE
65 31-00282ES-01
Manual Creation and Mapping of Reference Points (A)
Example:
Two IRM controllers and a wall module are on the MSTP bus in master-slave configuration:
• WEB-RL6N (Master)
• WEB-RS5N (Slave)
• External BACnet wall module
o The WEB-RL6N master controller:
- reads the window contact status [EffWindow] from the slave controller via RefIn
- reads the room temperature [ExtWmRmTemp] from the BACnet Wall Module via RefIn
- writes the occupancy status [EffOccMd] to an external BACnet Wall Module via RefOut
o The RS5N slave controller:
- reads the fan output status [FanStage] of the staged fan (slow, medium, high) from the master
controller via RefIn
Reference Inputs
Based on the example above, the reference input functions of the WEB-RL6N master controller are described in the
following.
• The WEB-RL6N master controller
- reads the window contact status [EffWindow] from the slave controller via RefIn
- reads the room temperature [ExtWmRmTemp] from the BACnet Wall Module via RefIn
NOTE: The read function of the WEB-RS5N slave controller is described using the automatic creation via drag &
drop (see “Automatic Creation and Mapping of Reference Points via Drag & drop (B)“ section, p. 76).
Procedure

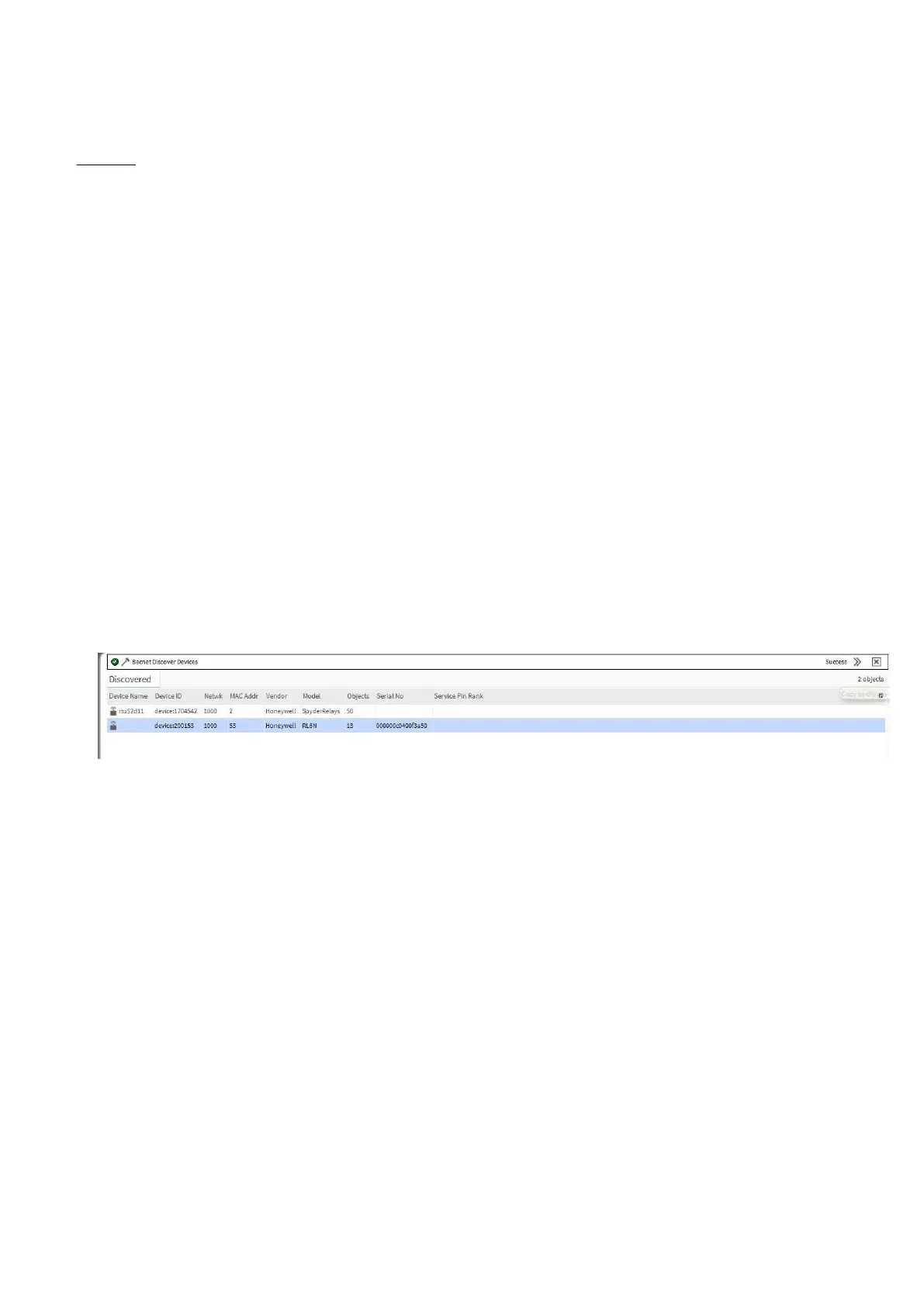

1. Note the device IDs of the WEB-RL6N master and WEB-RS5N slave controllers, in this case ´5003` and ´5001`
(displayed in the Discovered and Database pane).
2. In the Nav tree, expand the BACnet network and browse to the Points folder of the RS5N slave controller.
