SPYDER MODEL 5 ENGINEERING TOOL – USER GUIDE
31-00282ES-01 28
Matching Devices
Purpose
This function matches an offline-configured, disconnected IRM device to an online discovered IRM controller on the
BACnet network.
The offline-configured, disconnected IRM device will be configured according to the properties of the online discovered
IRM device.
Inconsistencies may occur and can be solved by using the corresponding actions to establish synchronicity.
Procedure
1. Press the service pin at the device you want to match to the offline created IRM BACnet device. Do this for all devices,
you want to match.
2. On the Discovered pane, click Discover.
RESULT: All devices available in the BACnet network are discovered.
RESULT: In the Service Pin Rank column, the service pin action is indicated by consecutive numbers depending on
the time when the service pin was pressed at the device.

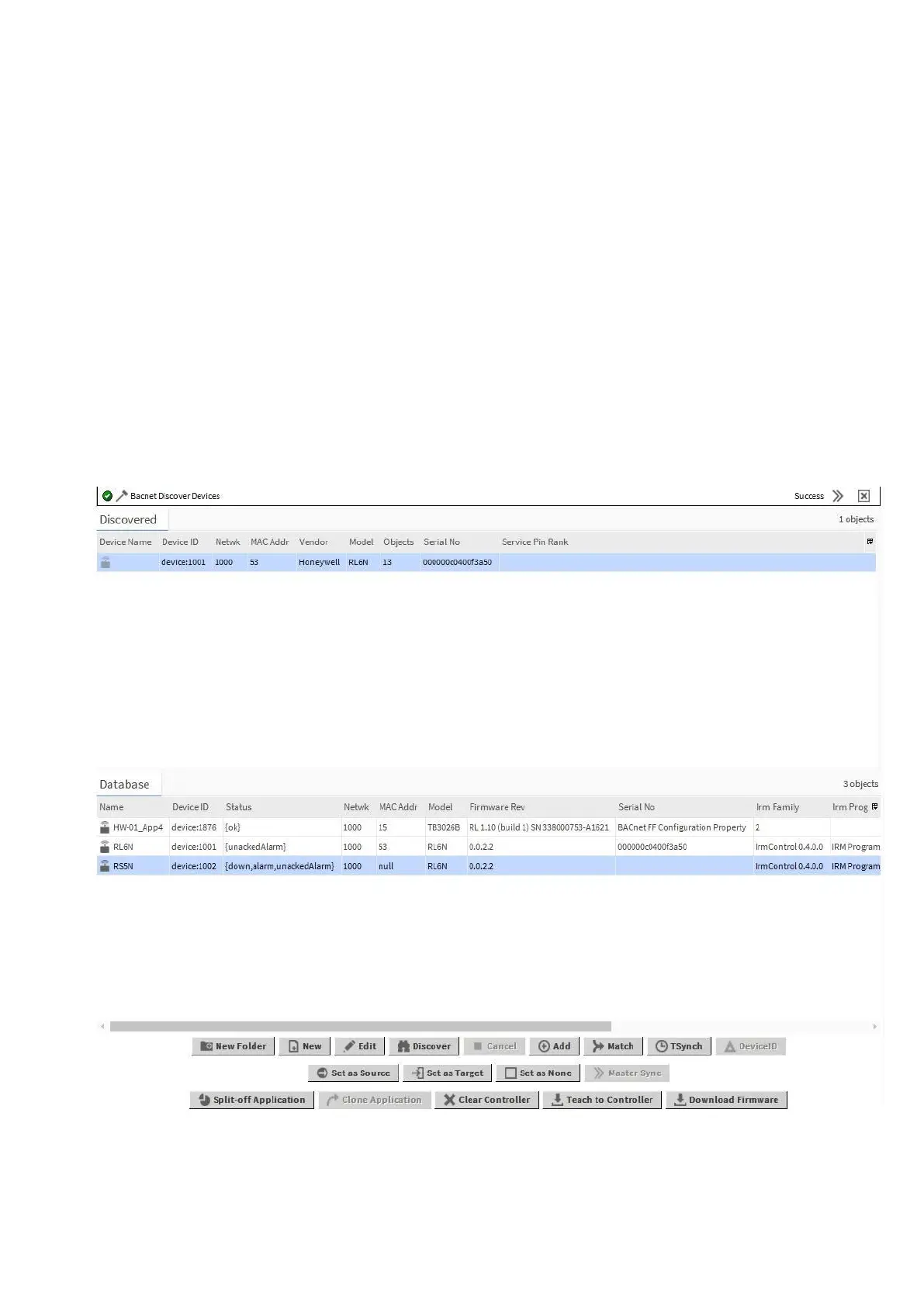

3. On the Discovered pane, select the online device and in the Database pane, select the offline created IRM BACnet
device.
4. At the bottom, click Match.
RESULT: The Match dialog box displays.
