SPYDER MODEL 5 ENGINEERING TOOL – USER GUIDE
31-00282ES-01 50
The Control Manager Procedure
1. In the Nav tree, expand the IRM Program folder.
2. Double-click on Control Manager icon.

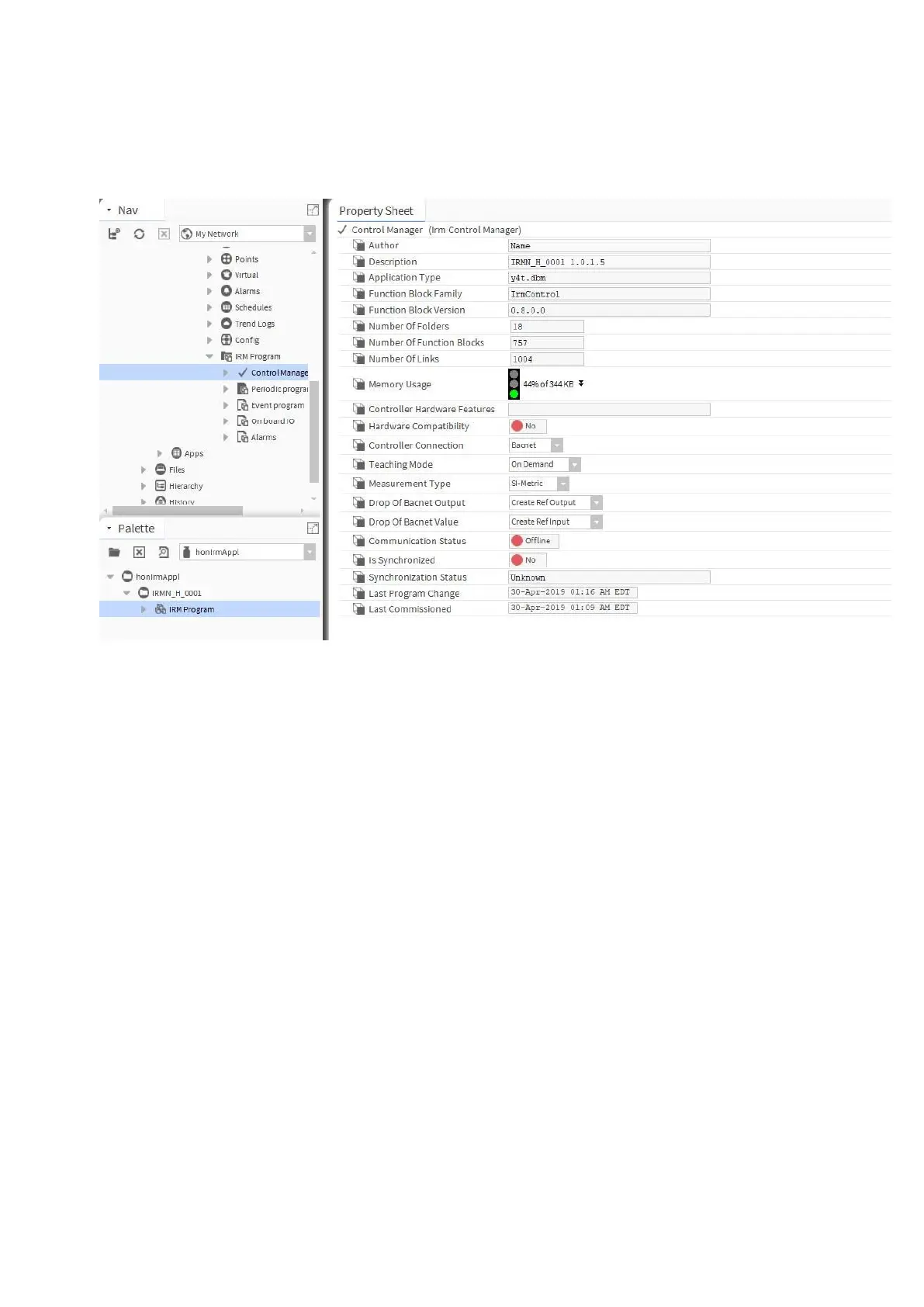

RESULT: On the Property Sheet, the following information is displayed.
• Author of the application.
• Description.
• Application Type.
• Function Block Family.
• Function Block Version.
• Number of Folders.
• Numver of function blocks.
• Number of Links.
• Memory usage shows the memory usage of the device, application and parameters in percentage and graphically.
• Controller Hardware features displays the I/O configuration (Online available in Online mode).
• Hardware compatibility indicates weather the terminal layout of the application is compatible with the hardware
layout of the physical controller.
• Controller connection allows selecting the connection type from: network, offline, and simulation.
• Teaching mode allows selecting the teaching mode from on demand and immediate .
• Measurement Type allows selecting the type of engineering units from SI-metric or Imperial.
• Drop of BACnet Output defines which type of reference point, reference input or output is created when dropping a
BACnet output from another device.
• Drop of BACnet Value defines which type of reference point, reference input or output is created when dropping a
BACnet value point from another device.
• Communication Status displays the communication status of the device: online or offline.
• Is Synchronized indicates whether the project and the controller are synchronized (yes) or not (no).
• Synchronization status displays a message describing the cause of the current synchronization status.
• Last program change displays the date of the last program change.
• Last Commissioned displays the date of the last commissioning.
3. Do any of the following if desired:
a. In Controller Connection, select the connection type for the devices from:
- Network connects to the physical BACnet network.
- Offline disables the connection to the network. This is useful in case you want to reduce bus traffic if the
application has not been swapped out.
