SPYDER MODEL 5 ENGINEERING TOOL – USER GUIDE
31-00282ES-01 80

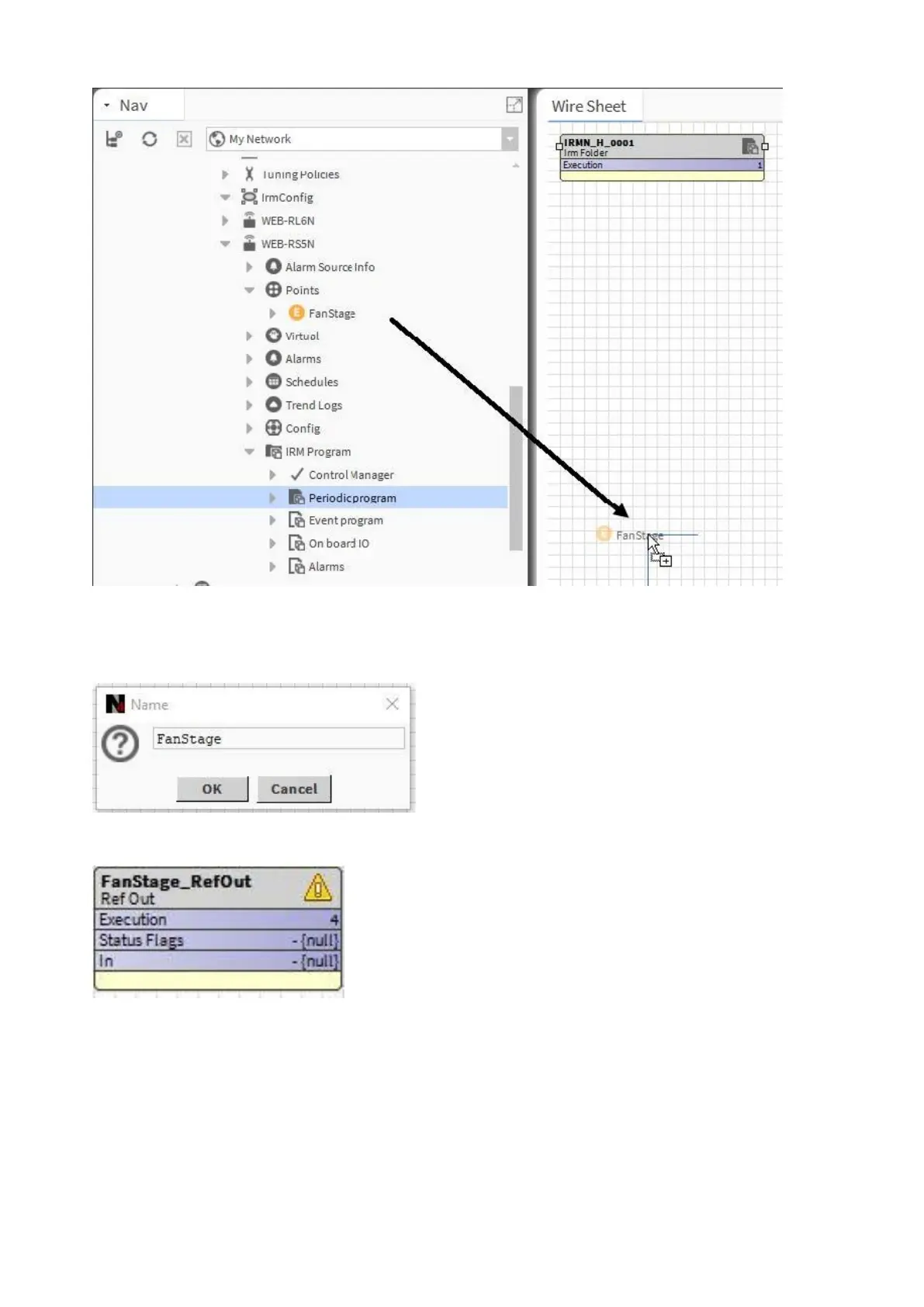

11. From the Points folder of the WEB-RL6N master controller, drag & drop the ´FanStage` BACnet point to the
wiresheet of the WEB-RS5N slave controller.
12. In the Name dialog box, click OK.
A reference input point with the name of the dropped BACnet point, in this case ´FanStage`, is created.
13. Double-click the symbol of the reference input point to display the property sheet.
