SPYDER MODEL
5 ENGINEE
RING TOOL
–
USER G
UIDE
91
31
-00282ES
-
01

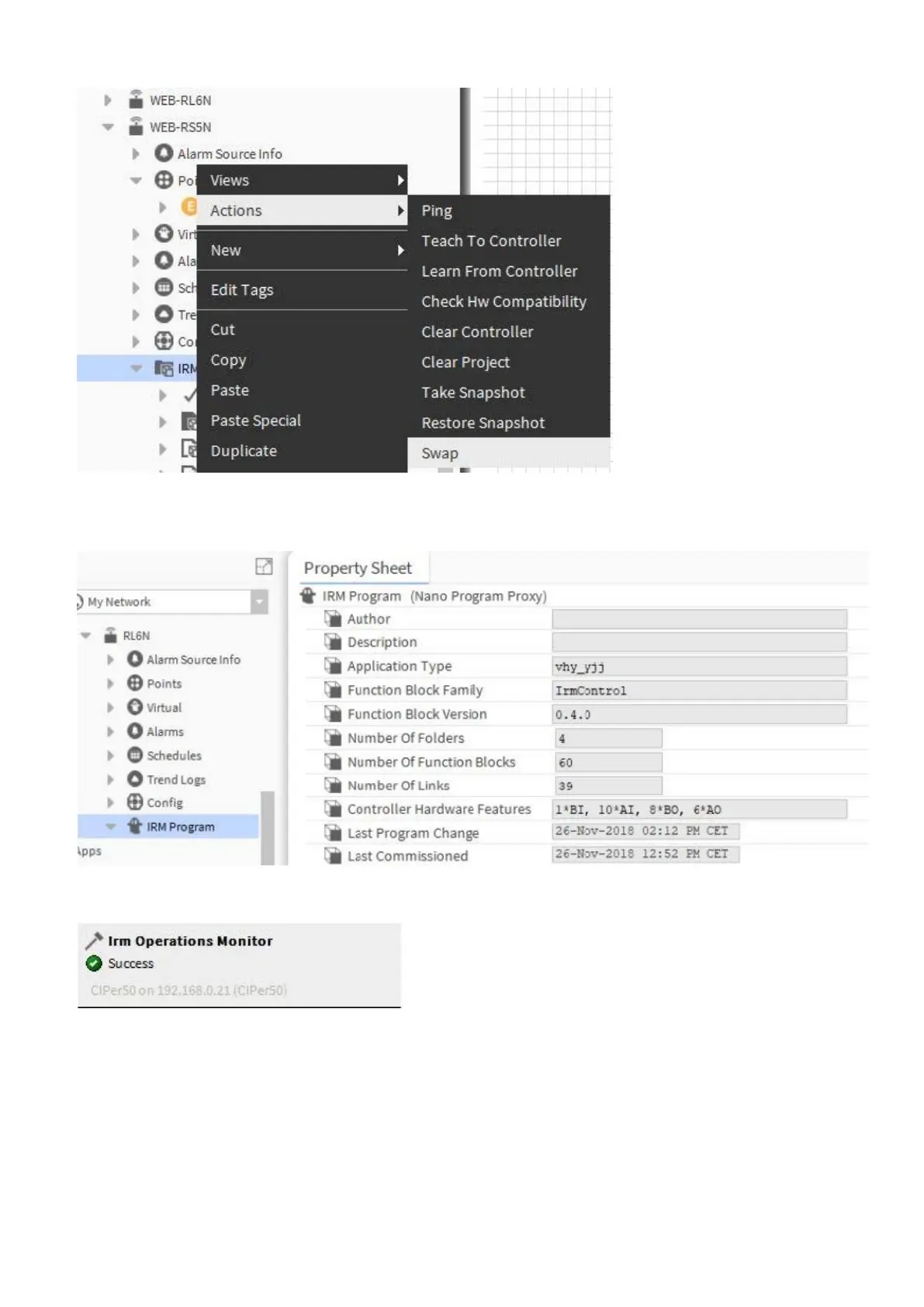

RESULT: The device is swapped out. On the
Property Sheet
the proxy is displayed. In the tree, the
IRM program is shown
without any subfolders.
The successful swap-out is displayed in the
I
rm
Operations Monitor
.
90
92
Table of Contents
Table of Contents
2
About this User Guide
4
Applicable Technical Literature
4
System Requirements
4
Restrictions and Recommendations
4
Security Best Practices
4
Security Check List
5
Introduction
6
Basic Concepts
6
System Architecture
9
Prerequisites
10
Adding Irm Application Template to Palette
10
Setting up Ciper Model 50 Controller
14
Creating Ciper Model 50 Station
16
Configuring Ciper Model 50 Controller as BACNET IP - MSTP Router
17
Engineering Modes
22
Offline Engineering
22
Creating IRM Bacnet Device
25
Matching Devices
28
Online Engineering
32
Synchronicity Check Via Control Manager
35
Factory Device Handling
37
Detailed Offline Procedure
39
Detailed Online Procedure
43
Working with Applications - the Irm Program
45
Preparing Niagara Work Environment
45
Irm Program Components
48
The Control Manager Procedure
50
Periodic Program
53
Event Program
54
Onboard IO
55
Alarms
58
Application Engineering Guidelines
59
Commissioning and Station Copier Usage
59
Final Step after Application Engineering
59
Memory and Folder Usage
59
IRM Function Blocks and External Application Components
60
Application Templates Usage
60
Reference Datapoints Usage
60
Manual Creation and Mapping of Reference Points (A)
65
Automatic Creation and Mapping of Reference Points Via Drag & Drop (B)
76
Application Management
82
Teaching and Learning
82
Teaching to Controller
82
Learning from Controller
83
Clearing Controller
85
Clearing Project
85
Checking Hardware Compatibility
86
Taking Snapshot
88
Restoring Snapshot
89
Swapping IRM Program
90
Master Sync
93
Cloning Application
94
Applying Master Sync
95
Excluding Function Block Items from Master Sync
97
Splitting-Off Application
99
Controller Mac Address Assignment
102
Setting MAC Address of Controller
104
Synchronizing Device Time
106
Firmware Dowload
107
Alarming
108
Miscellaneous
108
Value Updates after Device Power Failure
108
Hiding Slots
108
Sylk Wall Module Usage
110
