Battery Port Indicators

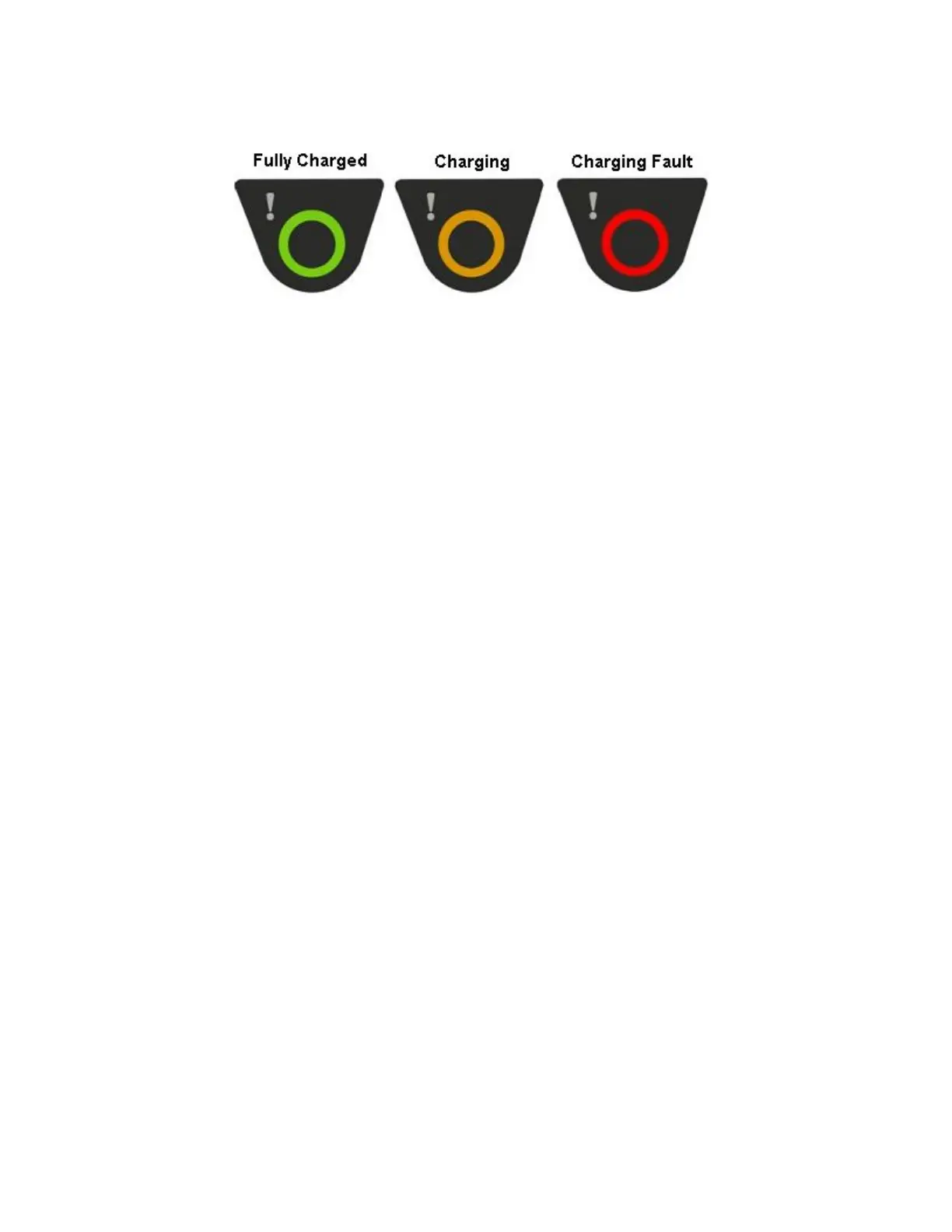

The following chart describes the patterns for the battery port LED indicator
lights.
Ring LED (Charge Status) Alert LED (Battery Health) SRX2 Battery Status
Solid Green Off Battery is fully charged
Solid Yellow Off Battery is charging
Blinking Red Off Charging fault detected
Solid Green Solid Red Battery alert condition; fully charged
Solid Yellow Solid Red Battery alert condition; charging
Blinking Red Solid Red Battery alert condition; fault detected
A700x Product Guide 38
