102 Xenon/Granit User Guide
Batch Mode Quantity
When in Batch Mode, you may wish to transmit the number of multiple bar codes
scanned, rather than a single bar code multiple times. For example, if you scan
three bar codes called XYZ with Batch Mode Quantity Off, when you transmit your
data it will appear as XYZ three times. Using Batch Mode Quantity On and the
Quantity Codes (page 103), you could output your data as “XYZ, 00003” instead.
Note: If you wish to format your output, for example, place a CR or tab between the bar code
data and the quantity, refer to Data Format beginning on page 167.
Default = Batch Mode Quantity Off.
Enter Quantities
Quantity Codes (page 103) allow you to enter a quantity for the last item scanned,
up to 9999 (default = 1). Quantity digits are shifted from right to left, so if a 5th digit
is scanned, the 1st digit scanned is discarded and the 2nd, 3rd and 4th digits are
moved to the left to accommodate the new digit.
For example, if the Quantity 5 bar code is scanned after the quantity has been set
to 1234, then the 1 is dropped, the quantity will be 2345.
Example: Add a quantity of 5 for the last item scanned.
1. Scan the item's bar code.
2. Scan the quantity 5 bar code.

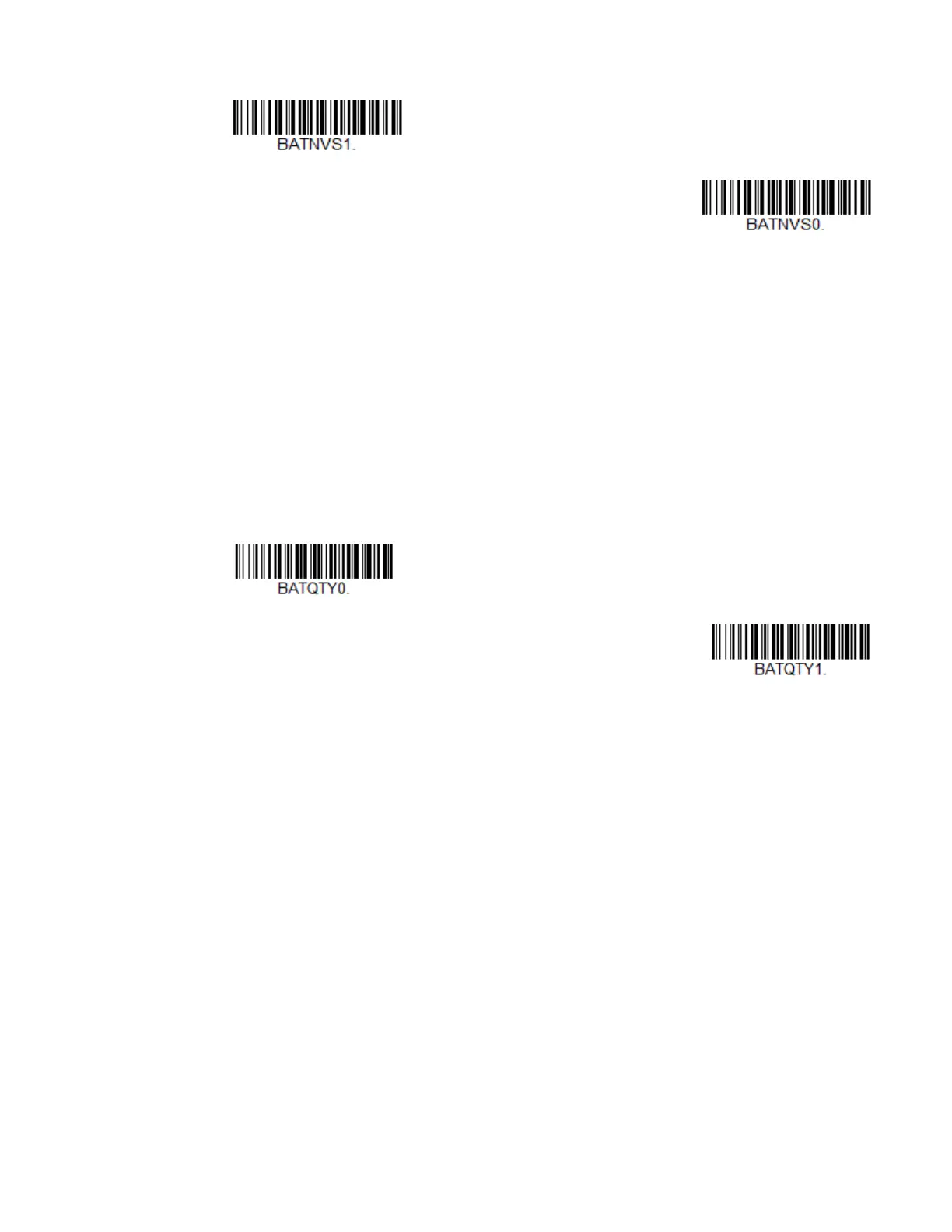

* Flash Storage
RAM Storage
* Batch Mode Quantity Off
Batch Mode Quantity On

Honeywell XENON 1900 Specifications

General

Type	Handheld bar code reader
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Linear (1D) barcodes supported	-
Standard interfaces	USB, Keyboard wedge, RS-232, RS-485
Connectivity technology	Wired
Input voltage	4 - 5.5 V
Power consumption	450 mA
Power source type	DC
Power consumption (standby)	0.45 W
Power consumption (typical)	2.3 W
Shockproof	Yes
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	147 g
