220
Xenon/Granit User Guide

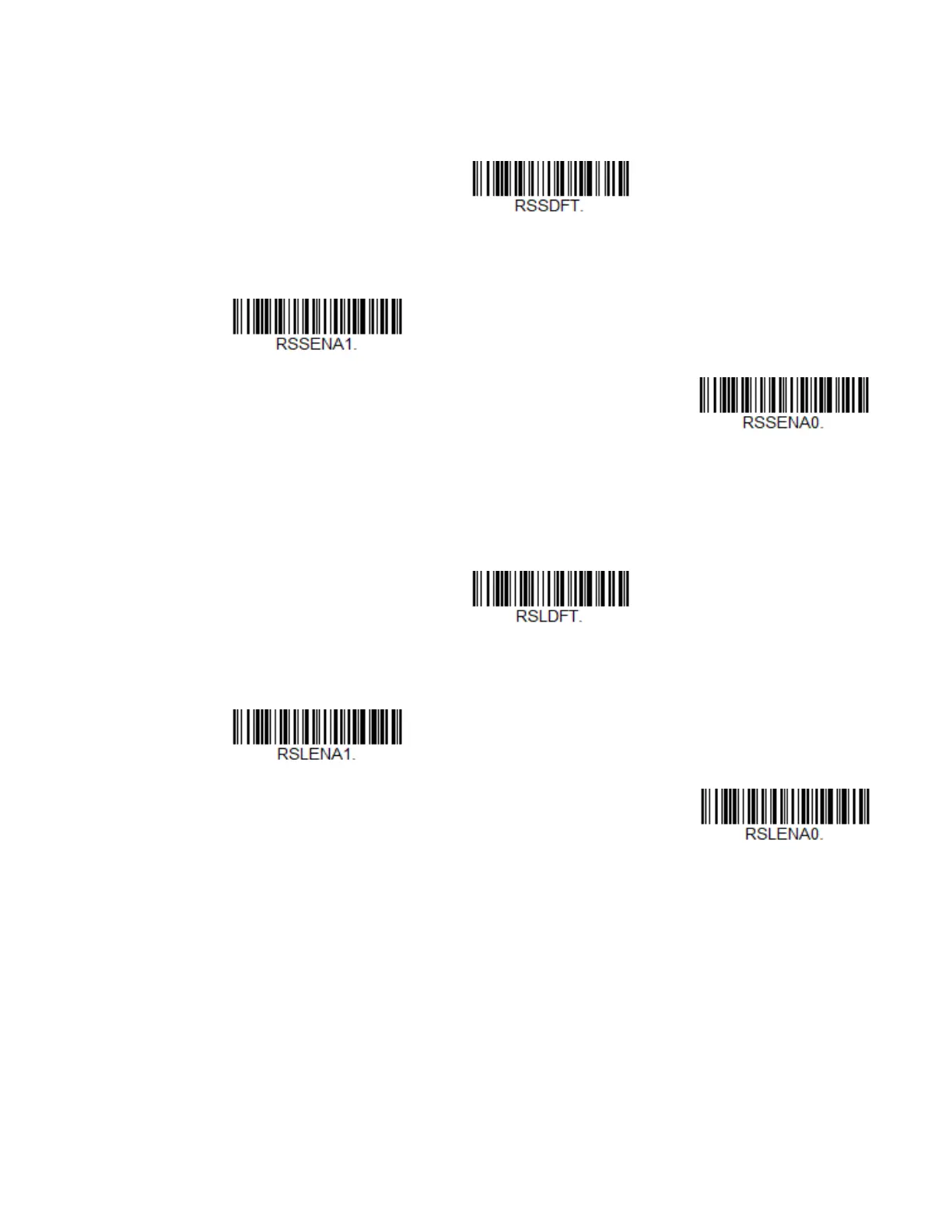

GS1 DataBar Omnidirectional
< Default All GS1 DataBar Omnidirectional Settings >
GS1 Data
Bar Omnidirectional On/Of
f
GS1 DataBar Limited
< Default All GS1 DataBar Limited Settings >
GS1 Dat
aBar Limited On/Of
f
* On
Off
* On
Off
