Xenon/Granit User Guide 195

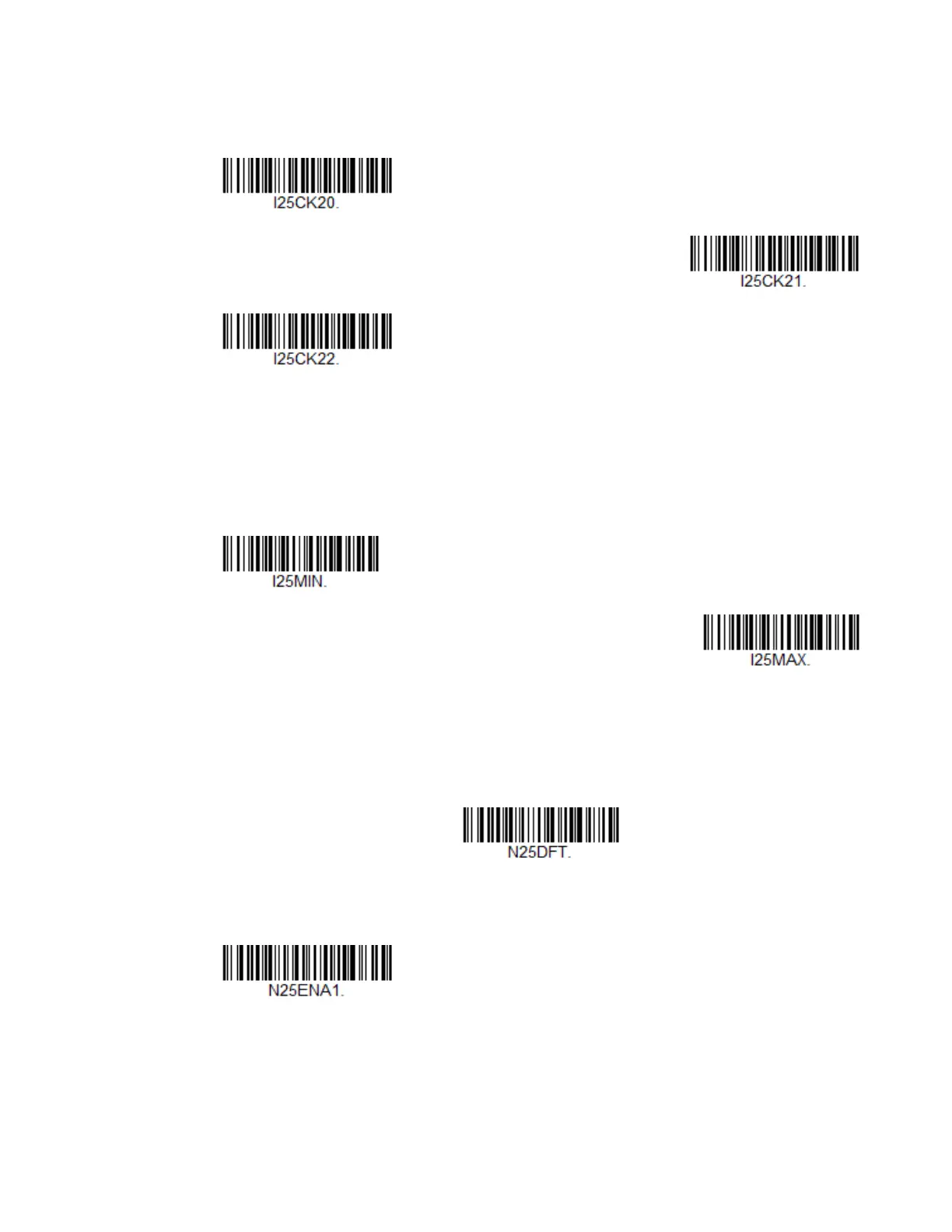

When Check Digit is set to Validate and Transmit, the scanner only reads Inter-
leaved 2 of 5 bar codes printed with a check digit, and will transmit this digit at the
end of the scanned data. Default = No Check Digit.
Interleaved 2 of 5 Message Length
Scan the bar codes below to change the message length. Refer to Message Length
Description (page 188) for additional information. Minimum and Maximum
lengths = 2-80. Minimum Default = 6, Maximum Default = 80.
NEC 2 of 5
< Default All NEC 2 of 5 Settings >
NEC 2 of 5 On/Off
* No Check Digit
Validate, but Don’t Transmit
Validate and Transmit
Minimum Message Length
Maximum Message Length
* On

Honeywell XENON 1900 Specifications

General

Type	Handheld bar code reader
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Linear (1D) barcodes supported	-
Standard interfaces	USB, Keyboard wedge, RS-232, RS-485
Connectivity technology	Wired
Input voltage	4 - 5.5 V
Power consumption	450 mA
Power source type	DC
Power consumption (standby)	0.45 W
Power consumption (typical)	2.3 W
Shockproof	Yes
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	147 g
