Honeywell XENON 1900 User Manual

Xenon/Granit User Guide 21
USB HID

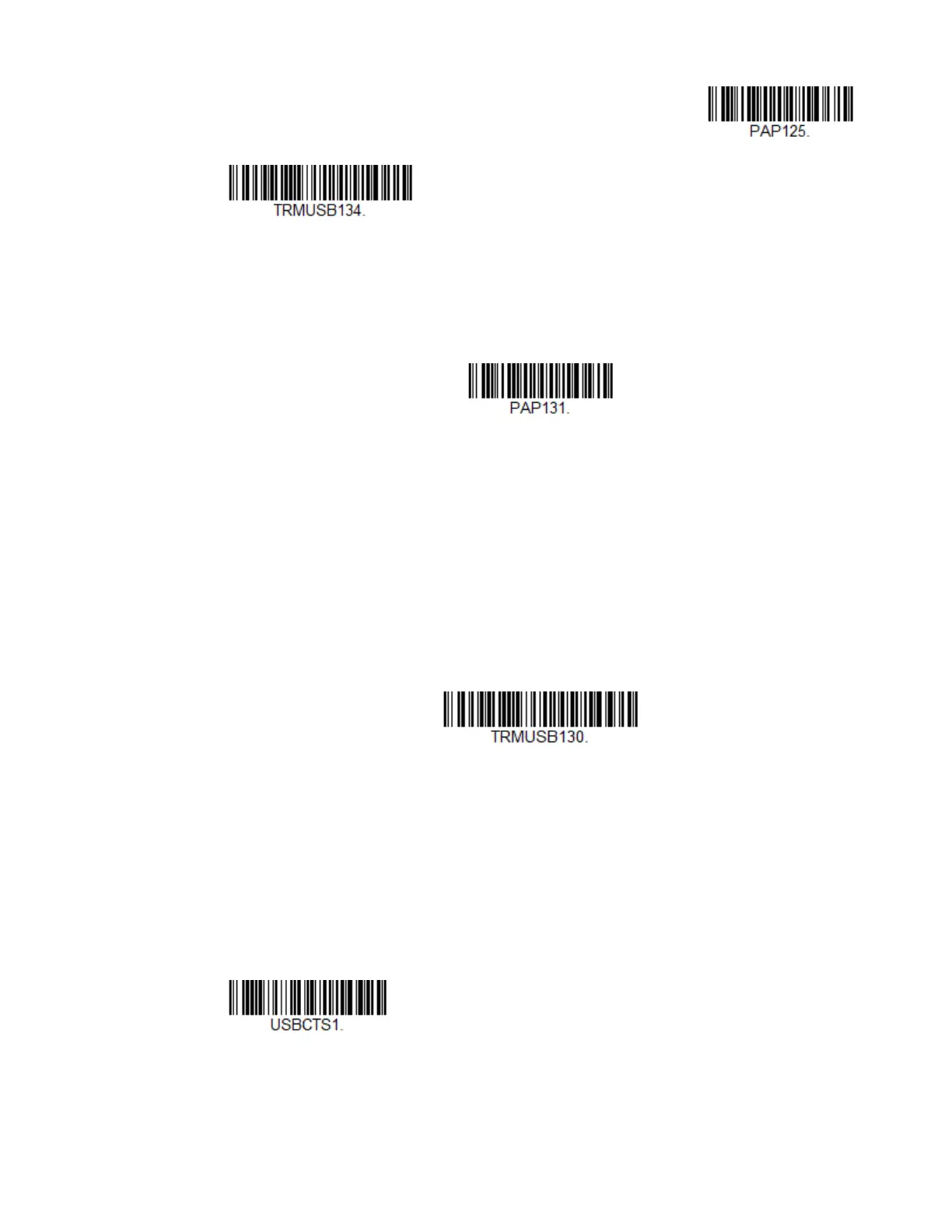

Scan the following code to program the scanner for USB HID bar code scanners.
USB Serial
If you are using a Microsoft® Windows® PC, you will need to download the latest
driver from the Honeywell website (www.honeywellaidc.com) and go to Get
Resources - Downloads - Software. The driver will use the next available COM Port
number. Apple® Macintosh computers recognize the scanner as a USB CDC class
device and automatically use a class driver.
After the driver is downloaded, scan the following code to program the scanner to
emulate a regular RS232-based COM Port.
No extra configuration (e.g., baud rate) is necessary.
Note: If you scan the USB Serial bar code either with an older Honeywell serial driver, or no
driver installed, you may no longer be able to scan bar codes. If this happens, either
uninstall the older driver versions and install the latest driver, or delete the specific
device entry in Device Manager.
CTS/RTS Emulation
USB Keyboard (Mac)
USB Japanese Keyboard (PC)
USB HID Bar Code Scanner
USB Serial
CTS/RTS Emulation On

Honeywell XENON 1900 Specifications

General

Type	Handheld bar code reader
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Linear (1D) barcodes supported	-
Standard interfaces	USB, Keyboard wedge, RS-232, RS-485
Connectivity technology	Wired
Input voltage	4 - 5.5 V
Power consumption	450 mA
Power source type	DC
Power consumption (standby)	0.45 W
Power consumption (typical)	2.3 W
Shockproof	Yes
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	147 g
