Honeywell XENON 1900 User Manual

6 Xenon/Granit User Guide
Note: The power supply must be ordered separately, if needed.
4. If you are connecting a CCB01-010BT or CCB01-010BT-07N-BF Base, make
sure the cables are secured in the wireways in the bottom of the cordless base
and the base sits flat on a horizontal surface. If you are connecting a CCB02-
100BT or CCB05-100BT Base, see Mount a CCB02-100BT/CCB05-100BT
Base on page 10.
5. Turn the terminal/computer power back on. The scanner beeps.
6. Verify the scanner or cordless base operation by scanning a bar code from the
Sample Symbols, beginning on page 351. The scanner beeps once. If using a
Granit scanner, it also vibrates.
The unit defaults to an IBM PC AT and compatibles keyboard wedge interface with
a USA keyboard. A carriage return (CR) suffix is added to bar code data.
Connect with RS232 Serial Port
1. Turn off power to the terminal/computer.
2. Connect the appropriate interface cable to the scanner.
Note: For the scanner or cordless base to work properly, you must have the correct cable for
your type of terminal/computer.

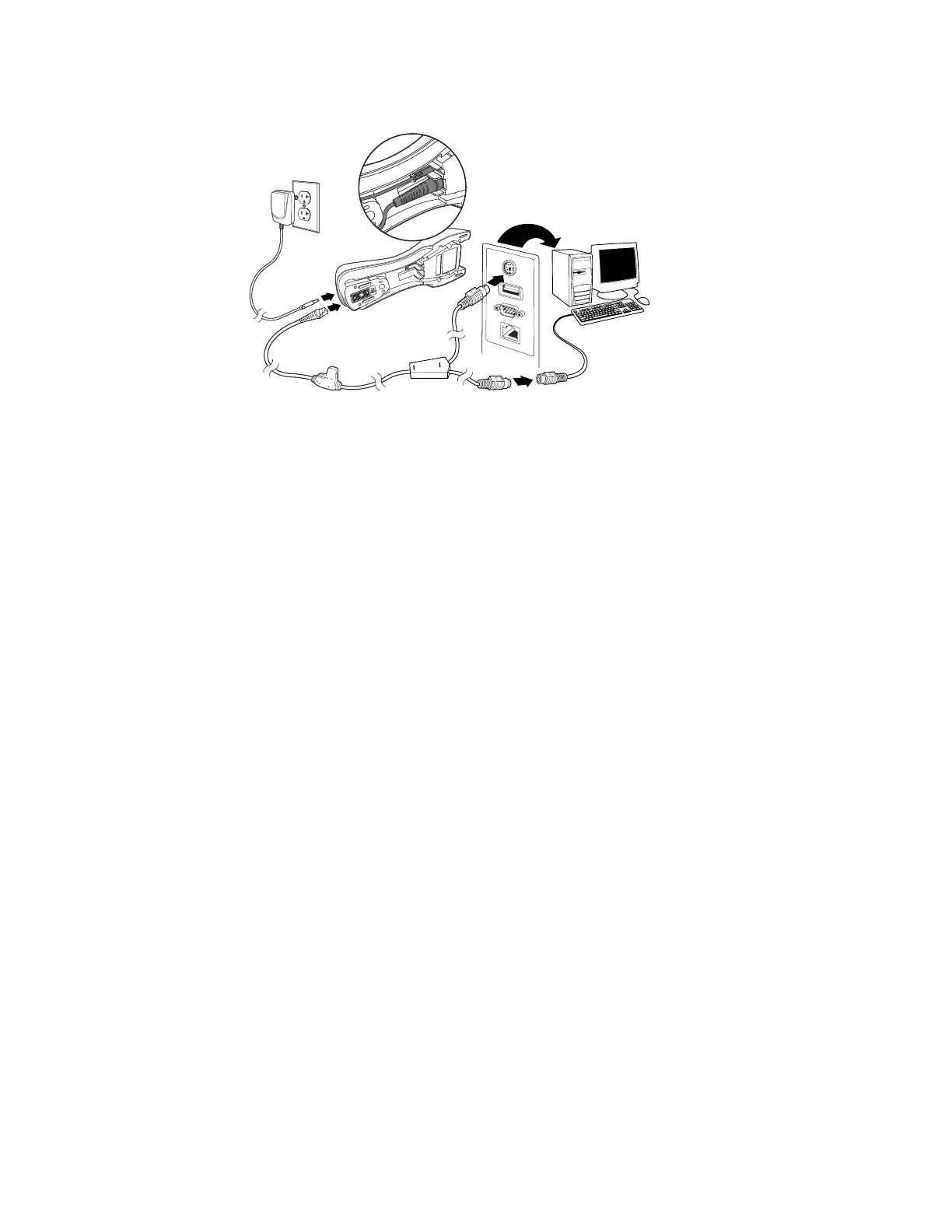

CCB02-100BT/CCB05-100BT Base Keyboard Wedge Connection:

Honeywell XENON 1900 Specifications

General

Type	Handheld bar code reader
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Linear (1D) barcodes supported	-
Standard interfaces	USB, Keyboard wedge, RS-232, RS-485
Connectivity technology	Wired
Input voltage	4 - 5.5 V
Power consumption	450 mA
Power source type	DC
Power consumption (standby)	0.45 W
Power consumption (typical)	2.3 W
Shockproof	Yes
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	147 g
