Honeywell XENON 1900 User Manual

324 Xenon/Granit User Guide
Standard Connector Pinouts
Note: The following pin assignments are not compatible with Honeywell legacy products.
Use of a cable with improper pin assignments may lead to damage to the unit. Use of
any cables not provided by the manufacturer may result in damage not covered by
your warranty.
Keyboard Wedge

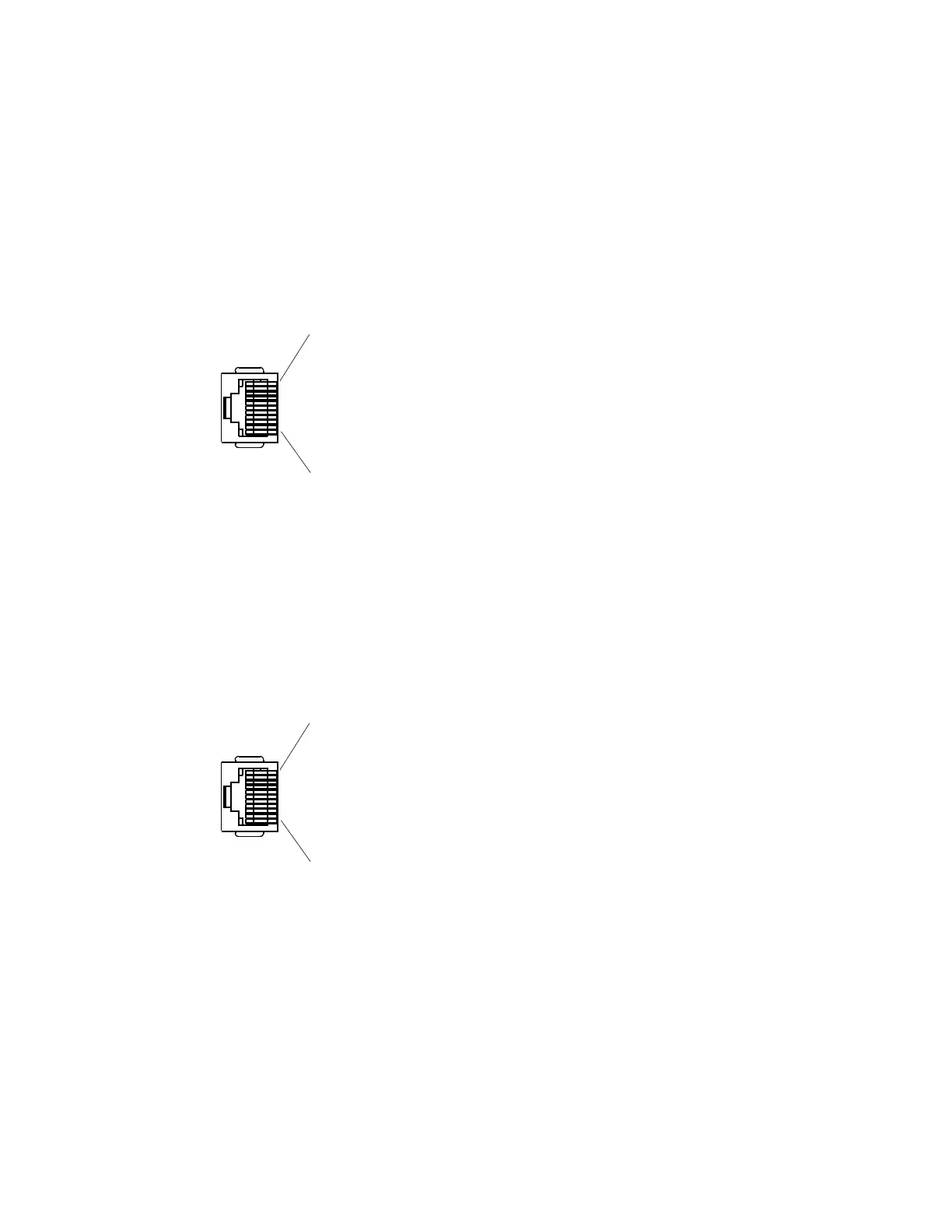

10 Pin RJ41 Modular Plug - connects to the base
Serial Output
10 Pin RJ41 Modular Plug - connects to the base
1Cable shield
2Cable select
3Supply ground
4Terminal data
5Terminal clock
6Keyboard clock
7+5V power
8Keyboard data
9
10
1Cable shield
2Cable select
3Supply ground
4Transmit data
5Receive data - serial data to scanner
6CTS
7+5V power
8RTS
9
10

Honeywell XENON 1900 Specifications

General

Type	Handheld bar code reader
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Linear (1D) barcodes supported	-
Standard interfaces	USB, Keyboard wedge, RS-232, RS-485
Connectivity technology	Wired
Input voltage	4 - 5.5 V
Power consumption	450 mA
Power source type	DC
Power consumption (standby)	0.45 W
Power consumption (typical)	2.3 W
Shockproof	Yes
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	147 g
