Horton 4100-PLUS - Page 3

I
I
B
25mm
A
100 min
"A"
Spindle Part No. Dimension
30 PF18.07 35
50 PF18.08 55
70 PF18.09 75
90 PF18.10 95
"B"
0 ~ 150mm Standard arm
150 ~ 300mm Extended arm
0

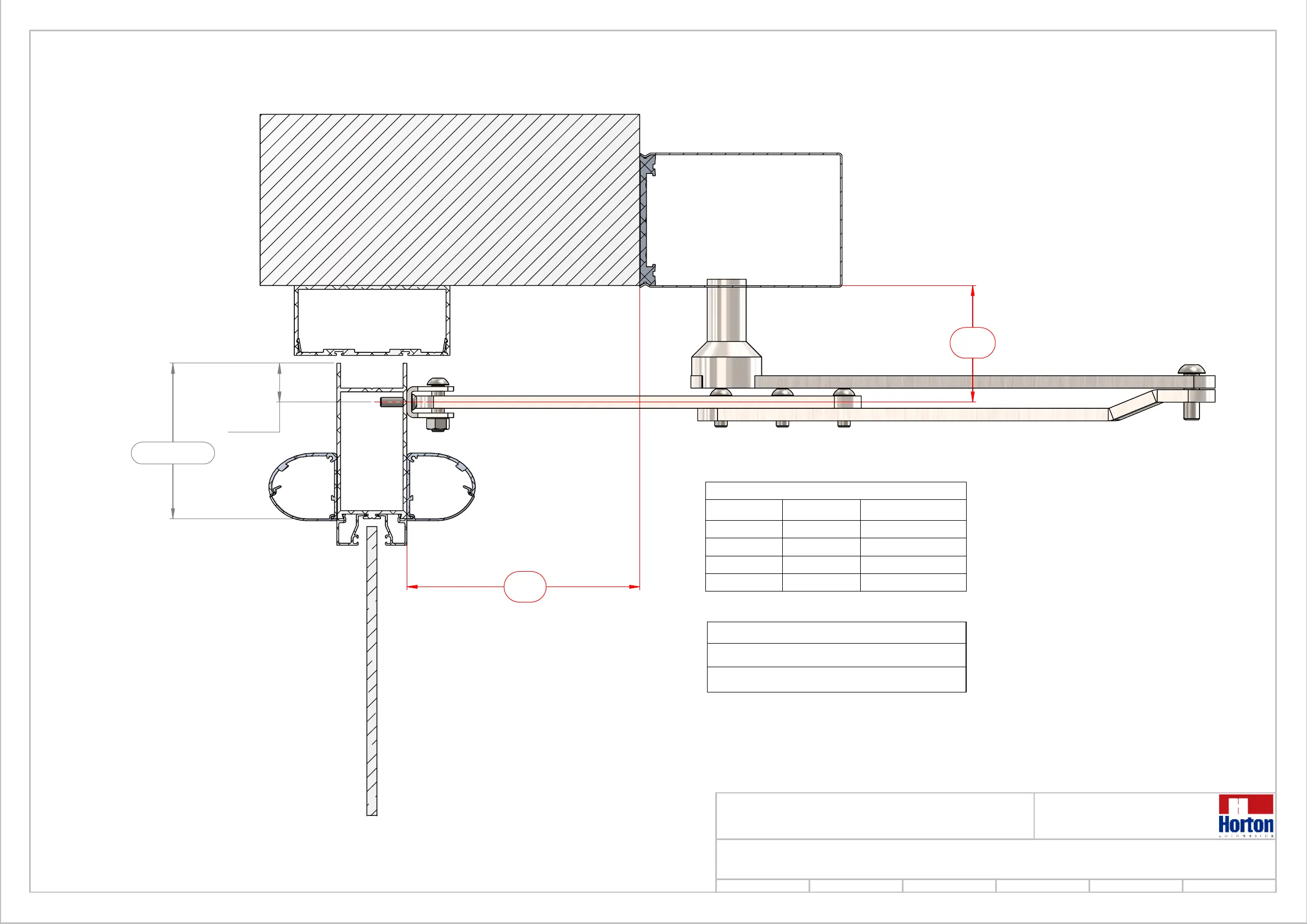

Push Arm Section View
Horton Automatics Ltd
Unit A - Hortonwood 31
Telford, Shropshire TF1 7YZ
Adam Wiggans
07/11/2016
SHEET 1 OF 2
SCALE:1:2
DESCRIPTION:
REVISION
DO NOT SCALE DRAWING
DATE:
DRAWN
DWG NO:
4100 - Plus S
DIMENSIONS IN MM
