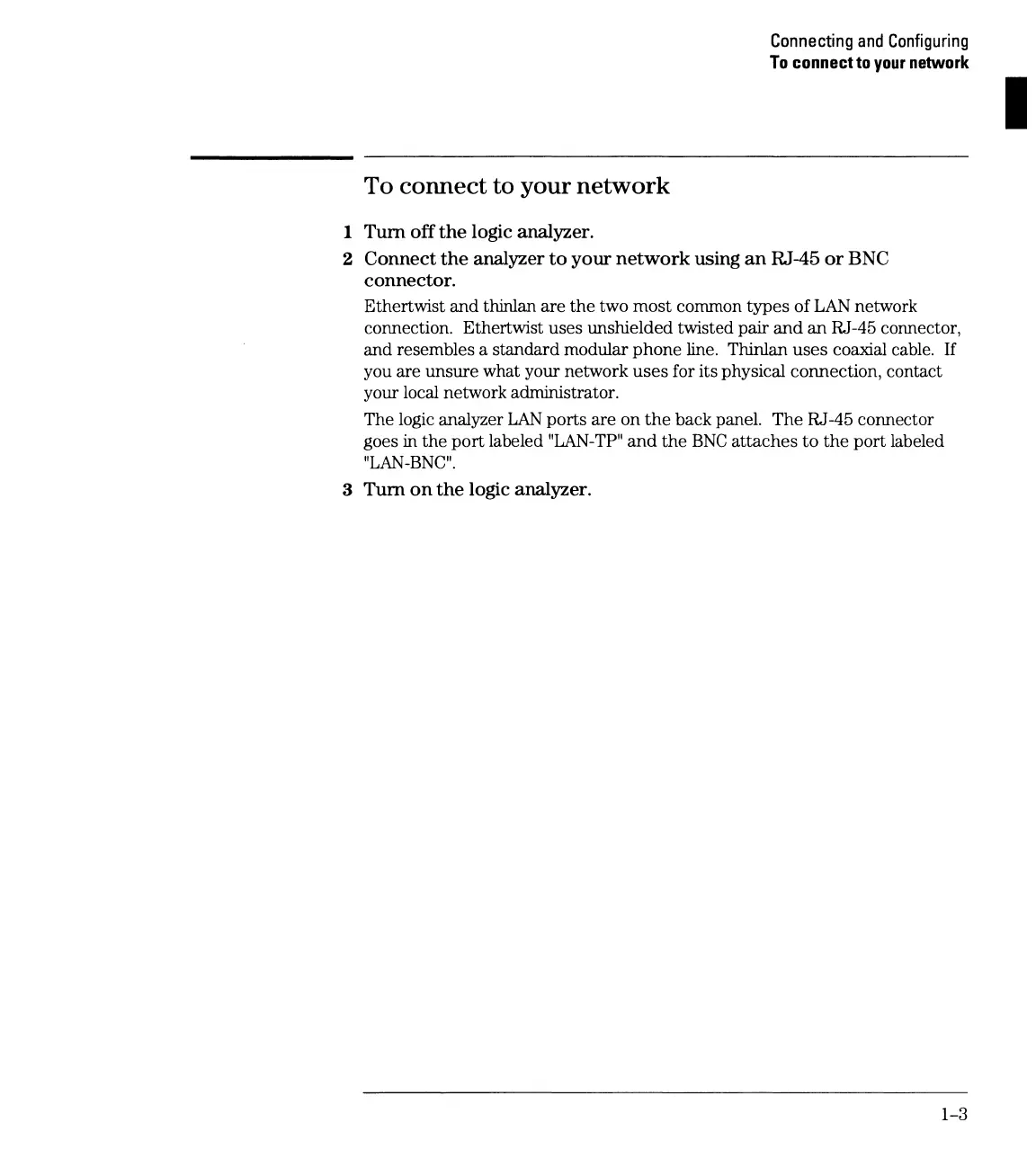

To
connect
to
your
network
1
Tum
off
the
logic analyzer.
Connecting
and
Configuring
To
connect
to
your
network
2 Connect
the
analyzer
to
your
network
using
an
RJ-45
or
BNC
connector.
Ethertwist
and
thinlan are
the
two
most
common types of LAN network
connection. Ethertwist uses unshielded twisted pair
and
an
RJ-45 connector,
and resembles a standard modular
phone
line. Thinlan
uses
coaxial cable.
If
you are unsure what your network
uses
for its physical connection, contact
your local network administrator.
The logic analyzer
LAN
ports are on
the
back panel.
The
RJ-45 connector
goes in
the
port
labeled
"LAN-TP"
and
the
BNC
attaches
to
the
port
labeled
"LAN-BNC".
3
Tum
on
the
logic analyzer.
1-3
I
