HP 1670A Series User Manual

Programming the Logic Analyzer

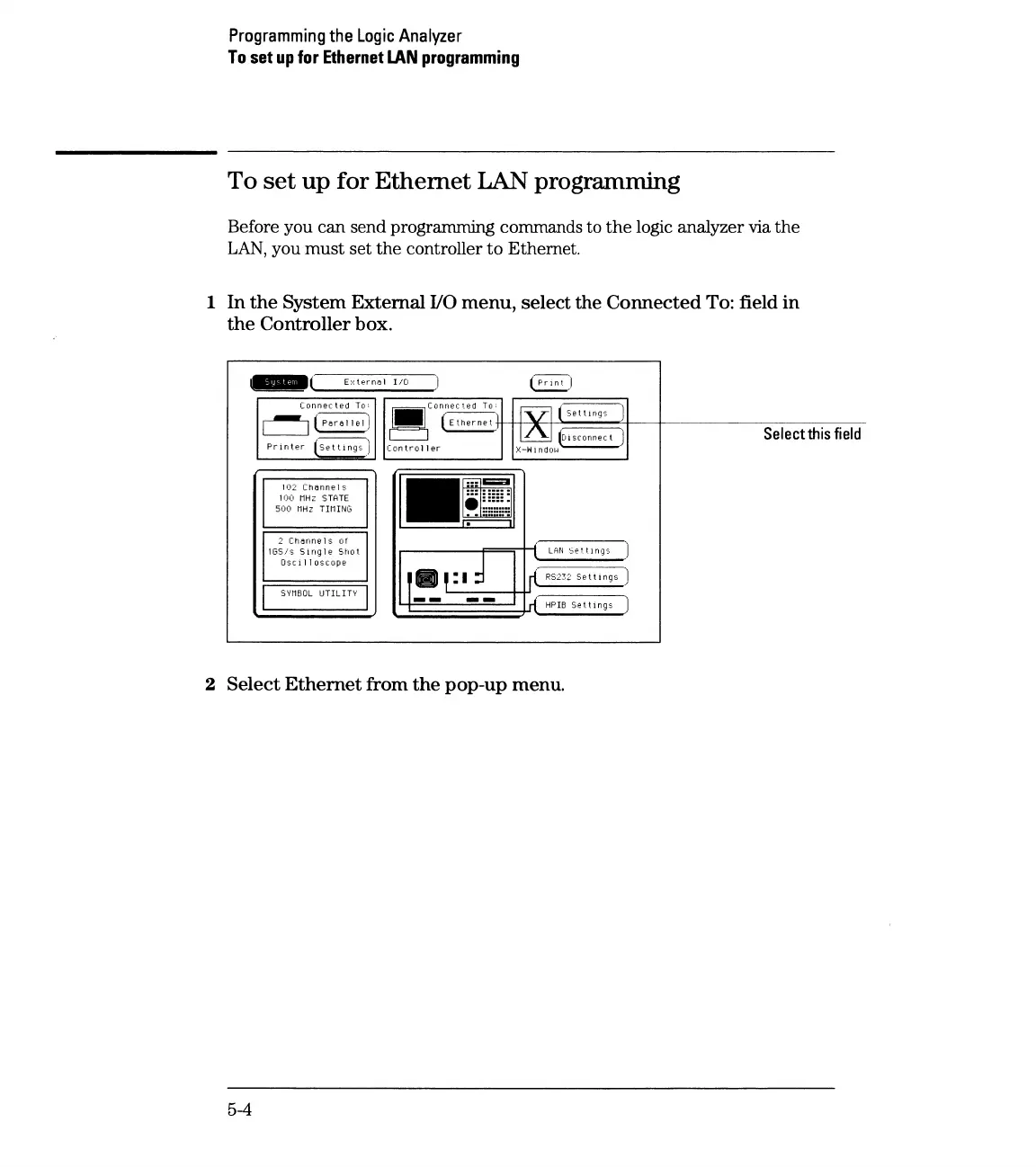

To set up for Ethernet LAN programming
To set up for Ethernet LAN programming
Before you can send programming commands to the logic analyzer via the
LAN, you must set the controller to Ethernet.
1 In the System External 1/0 menu, select the Connected To: field in
the Controller box.
M*f!f t ..... __ ._, •-·'-""-'-'-'"-_,
Connec led To:
~~
Pr 1n ter (sett ingsJ
102 Channels
100 MHz STATE
500 MHz TIMING
2 CMnnel s of
lGS/s Single ShOt
Osei I I oscope
S VMBOL UTIL !Tl/
Controller
Set tings
I
.
rr===i
LAN Set tings
RS232 Settings
HPIB Settings
2 Select Ethernet from the pop-up menu.
5-4
