Concepts
LAN-related
fields
in
the
logic
analyzer's
menus

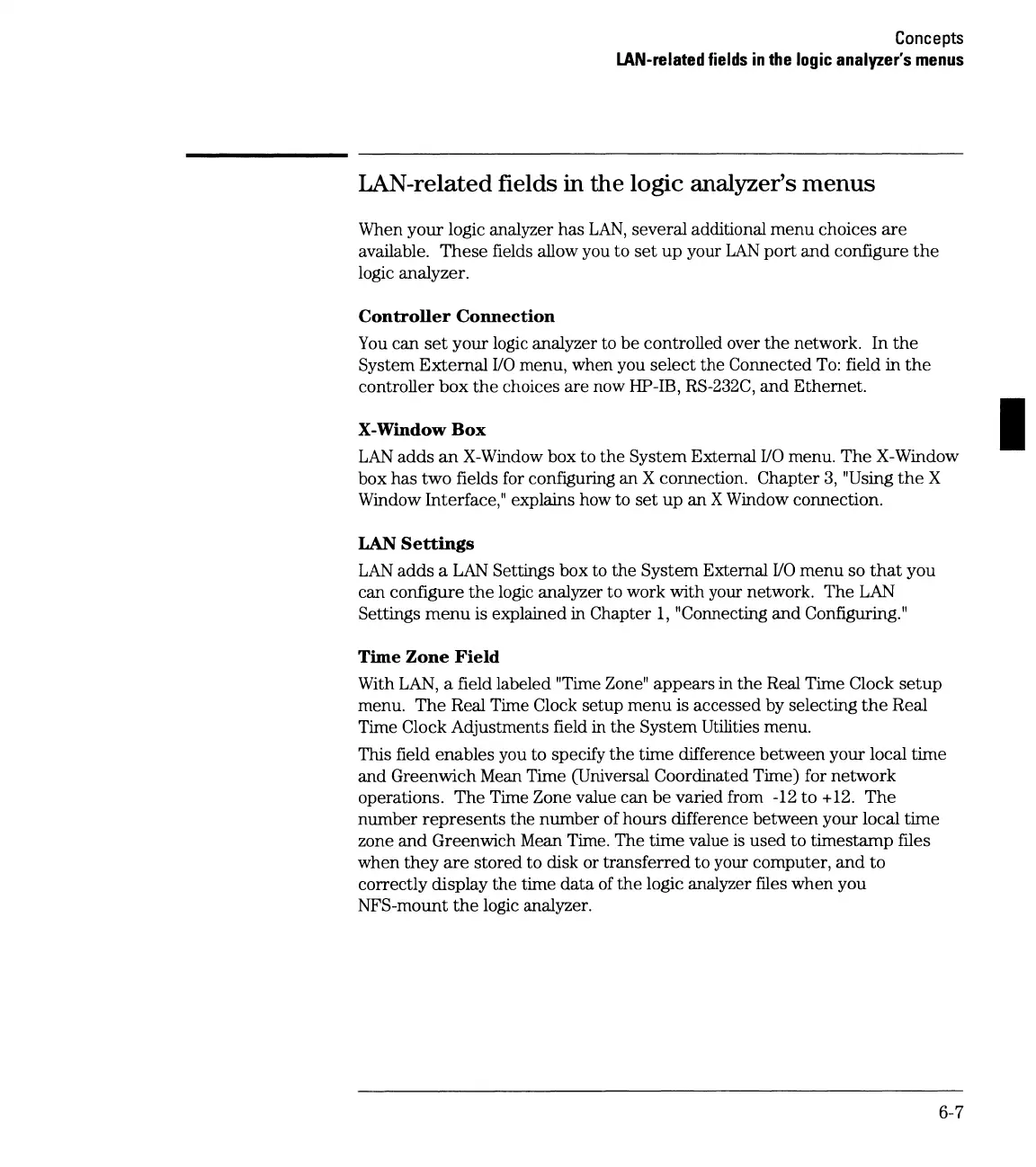

LAN-related fields in the logic analyzer's
menus
When your logic analyzer has
LAN,
several additional
menu
choices
are
available.
These
fields allow you to
set
up
your
LAN
port
and
configure
the
logic analyzer.
Controller
Connection
You
can
set
your logic analyzer to be controlled over
the
network. In
the
System
External
VO
menu, when you select the Connected
To:
field in
the
controller
box
the
choices are now HP-IB, RS-232C,
and
Ethernet.
X-Window
Box
LAN
adds
an
X-Window box to the System External VO menu.
The
X-Window
box has two fields for configuring an X connection. Chapter
3,
"Using
the
X
Window Interface," explains how to
set
up
an
X Window connection.
LAN
Settings
LAN
adds
a
LAN
Settings box to the System External
VO
menu
so
that
you
can configure
the
logic analyzer to work with your network. The
LAN
Settings
menu
is explained in Chapter
1,
"Connecting
and
Configuring."
Time
Zone
Field
With
LAN,
a field labeled "Time Zone" appears in
the
Real Time Clock
setup
menu.
The
Real Time Clock setup
menu
is accessed by selecting
the
Real
Time Clock Adjustments field in the System Utilities menu.
This field enables you to specify
the
time difference between your local time
and Greenwich Mean Time (Universal Coordinated Time) for network
operations.
The
Time Zone value can be varied from -12
to
+12.
The
number
represents
the number of hours difference between your local time
zone
and
Greenwich Mean Time. The time value
is
used to timestamp files
when
they
are
stored to disk or transferred
to
your computer,
and
to
correctly display the time
data
of
the
logic analyzer files when you
NFS-mount
the
logic analyzer.
6-7
