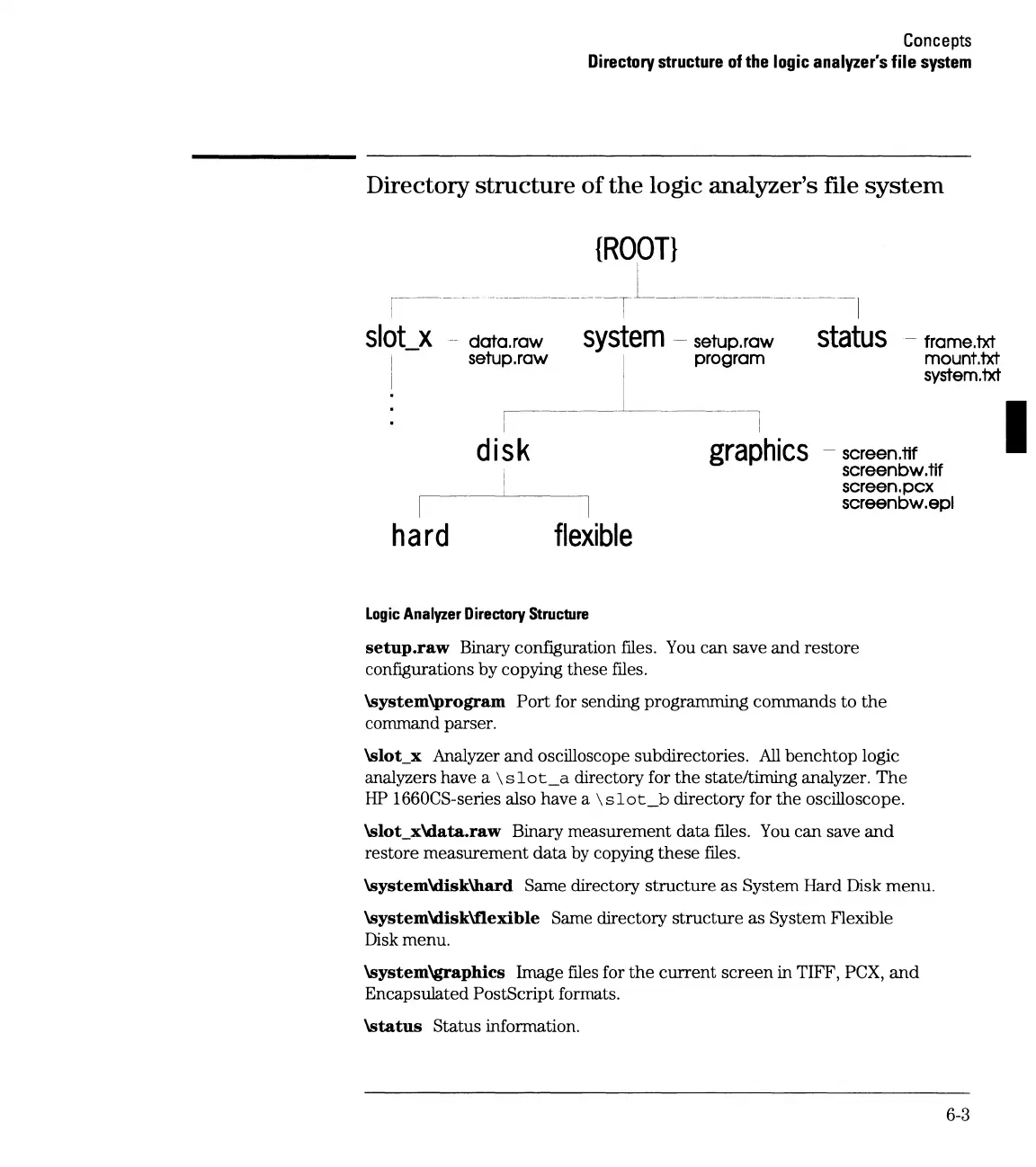

Directory structure of the logic analyzer's file system
Directory structure of the logic analyzer's file system
{ROOT}
····--1
slot_x - data.raw
setup.raw
system - setup.raw
I program
StatUS - frame.M
mount.M
system.M
,---·-
disk graphics
- screen.tit
screenbw.tif
screen.pcx
screenbw.epl
hard flexible
Logic Analyzer Directory Structure
setup.raw Binary configuration files. You can save and restore
configurations by copying these files.
\system\program Port for sending programming conunands to the
command parser.
\slot_x Analyzer and oscilloscope subdirectories. All benchtop logic
analyzers have a \slot_a directory for the state/timing analyzer. The
HP 1660CS-series also have a \slot_b directory for the oscilloscope.
\slot_x"\data.raw Binary measurement data files. You can save and
restore measurement data by copying these files.
\system\disk\hard Same directory structure as System Hard Disk menu.
\system"\disk\tlexible Same directory structure as System Flexible
Disk menu.
\system\graphics Image files for the current screen in TIFF, PCX, and
Encapsulated Postscript formats.
\status Status information.
