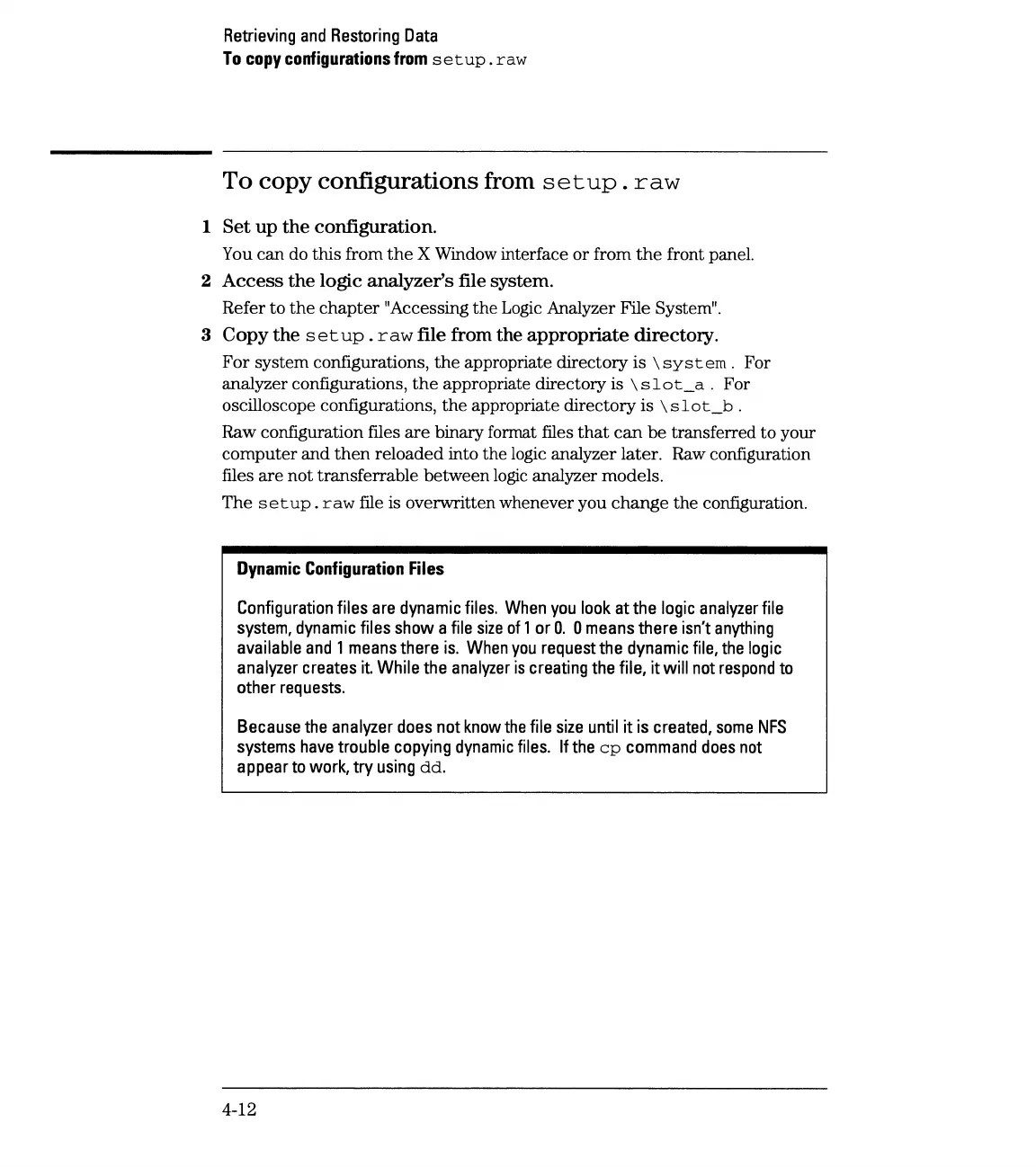

HP 1670A Series User Manual

Retrieving and Restoring Data
To copy configurations from setup.raw
To copy configurations from setup. raw
1 Set up the configuration.
You can do this from the X Window interface or from the front panel.
2 Access the logic analyzer's file system.
Refer to the chapter "Accessing the Logic Analyzer File System".
3 Copy the setup. raw file from the appropriate directory.
For system configurations, the appropriate directory is \system. For
analyzer configurations, the appropriate directory is \ slot_a. For
oscilloscope configurations, the appropriate directory is \slot_b.
Raw configuration files are binary format files that can be transferred to your
computer and then reloaded into the logic analyzer later. Raw configuration
files are not transferrable between logic analyzer models.
The setup. raw file is overwritten whenever you change the configuration.
Dynamic Configuration Files
Configuration files are dynamic files. When you look at the logic analyzer file
system, dynamic files show a file size of 1 or 0. 0 means there isn't anything
available and 1 means there is. When you request the dynamic file, the logic
analyzer creates it. While the analyzer is creating the file, it will not respond to
other requests.
Because the analyzer does not know the file size until it is created, some NFS
systems have trouble copying dynamic files. If the cp command does not
appear to work, try using dd.
4-12
