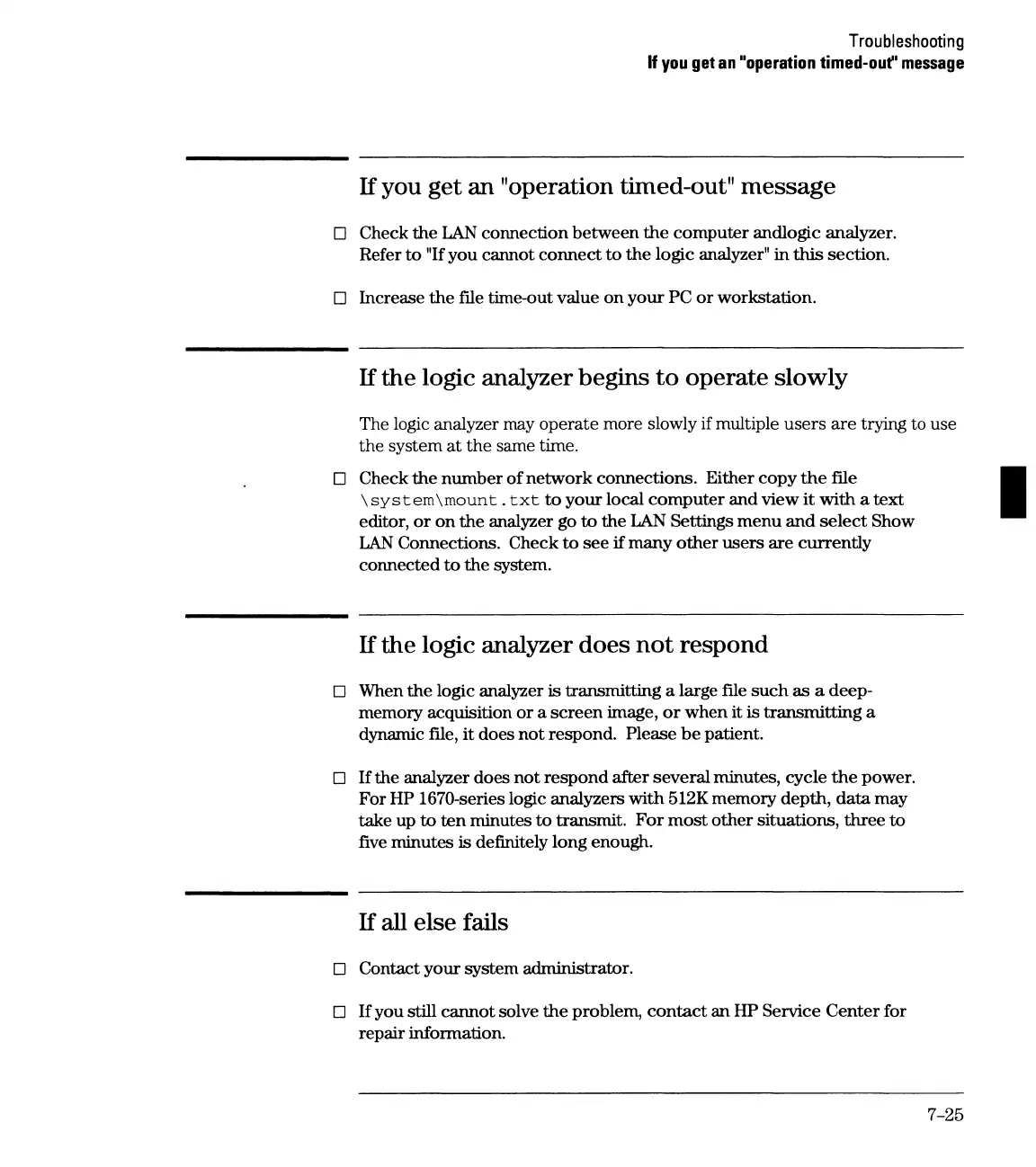

Troubleshooting
If you get an "operation timed-out" message
If you get an "operation timed-out" message
D Check the LAN connection between the computer andlogic analyzer.
Refer to "If you cannot connect to the logic analyzer" in this section.
D Increase the file time-out value on your PC or workstation.
If the logic analyzer begins to operate slowly
The logic analyzer may operate more slowly if multiple users are trying to use
the system at the same time.
D Check the number of network connections. Either copy the file
\system\mount. txt to your local computer and view it with a text
editor, or on the analyzer go to the LAN Settings menu and select Show
LAN Connections. Check to see if many other users are currently
connected to the system.
If the logic analyzer does not respond
D When the logic analyzer is transmitting a large file such as a deep-
memory acquisition or a screen image, or when it is transmitting a
dynamic file, it does not respond. Please be patient.
D If the analyzer does not respond after several minutes, cycle the power.
For HP 1670-series logic analyzers with 512Kmemory depth, data may
take up to ten minutes to transmit. For most other situations, three to
five minutes is definitely long enough.
If all else fails
D Contact your system administrator.
D If you still cannot solve the problem, contact an HP Service Center for
repair information.
7-25
