HP 1670A Series User Manual

Example
Using the X Window Interface
To close the interface

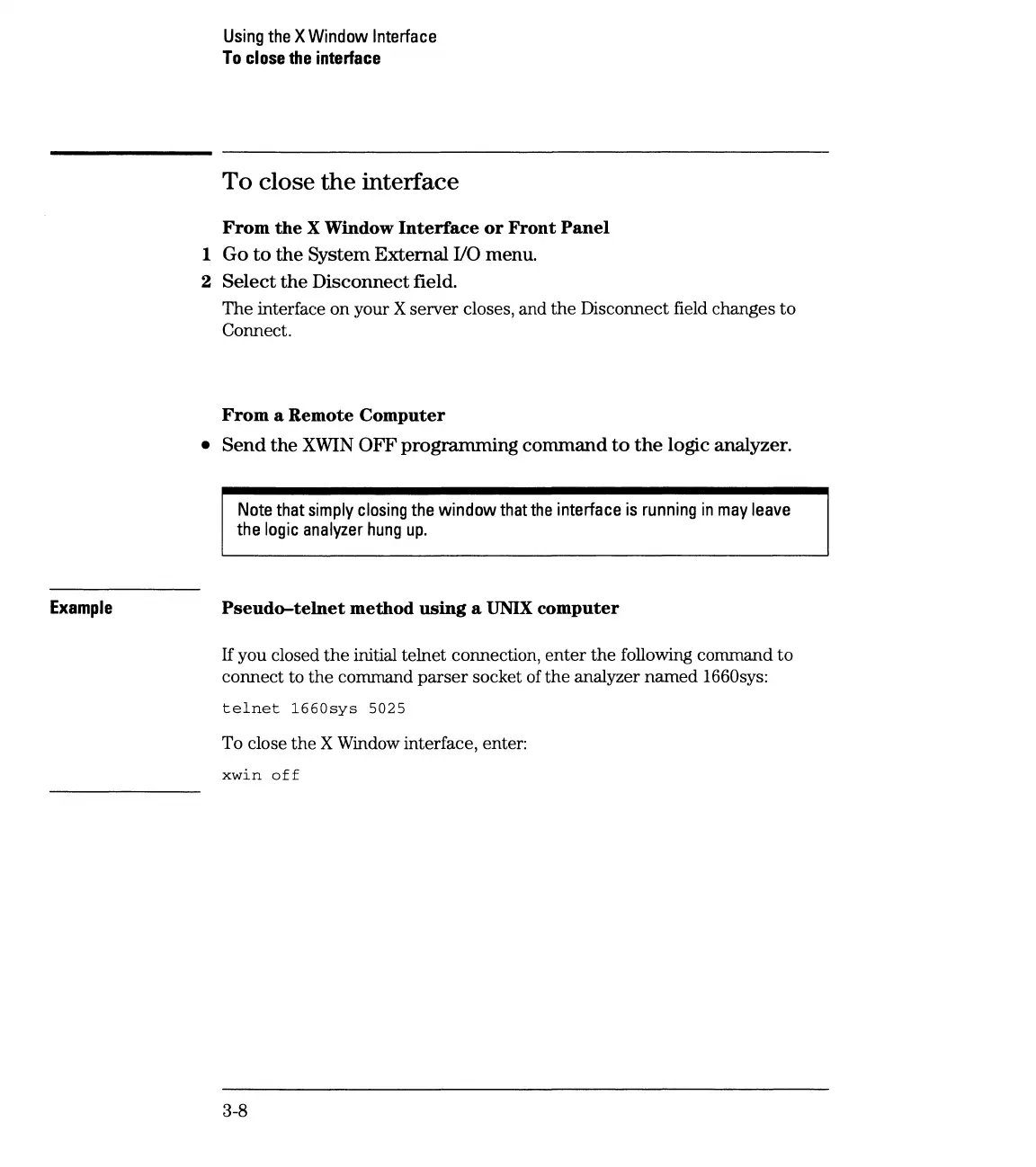

To close the interface
From the X Window Interface or Front Panel
1 Go to the System External 1/0 menu.
2 Select the Disconnect field.
The interface on your X server closes, and the Disconnect field changes to
Connect.
From a Remote Computer
• Send the XWIN OFF programming command to the logic analyzer.
Note that simply closing the window that the interface is running in may leave
the logic analyzer hung up.
Pseudo-telnet method using a UNIX computer
If you closed the initial telnet connection, enter the following command to
connect to the command parser socket of the analyzer named 1660sys:
telnet 1660sys 5025
To close the X Window interface, enter:
xwin off
3-8
