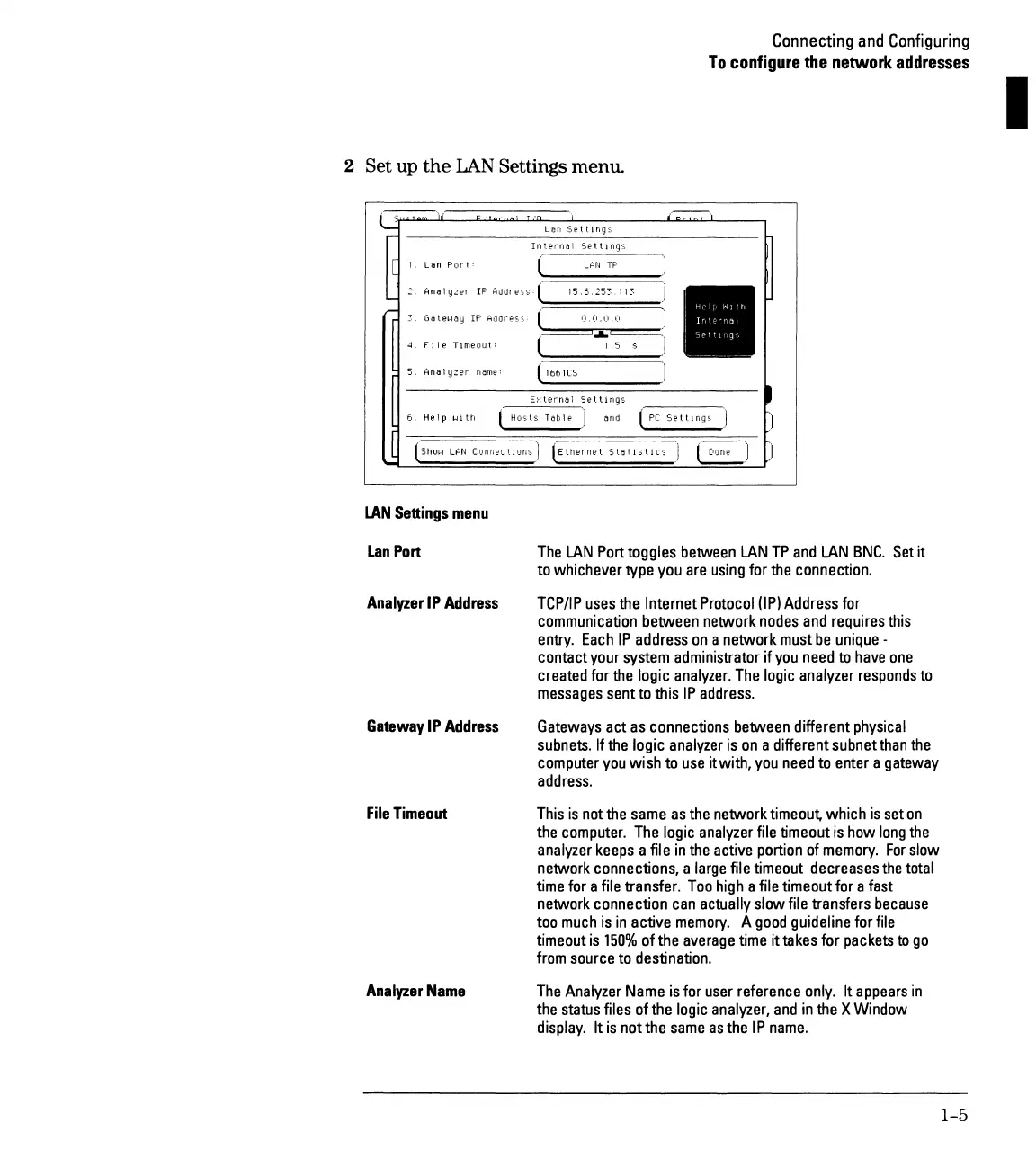

HP 1670A Series User Manual

Connecting and Configuring
To configure the network addresses
2 Set up the LAN Settings menu.
Len :=,ett1ng·:
In ter-n.:i I Set. t 1 ngs
1 Ltrn Port LAM TF'
15.6.253.11?· ::: Analy::er IP Address (
~=====:
•
" Gateway IP Addre·~·; ( n.r•.O.l1 I
======s.a.~
.:i File Timeout: ( 1.5 s ]
5. AnallJZfH namE" ( 1661CS 1
E>·:lernal Settings
6 Help i..nth (Ho .ts Tatile ·.I and {PC Setting~. _]
(Show LAN Connec t.1 on~._] f Ethernet Stat.is ti cs. _:I ~J
LAN Settings menu
Lan Port
Analyzer IP Address
Gateway IP Address
File Timeout
Analyzer Name
The LAN Port toggles between LAN TP and LAN BNC. Set it
to whichever type you are using for the connection.
TCP/IP uses the Internet Protocol (IP) Address for
communication between network nodes and requires this
entry. Each IP address on a network must be unique -
contact your system administrator if you need to have one
created for the logic analyzer. The logic analyzer responds to
messages sent to this IP address.
Gateways act as connections between different physical
subnets. If the logic analyzer is on a different subnet than the
computer you wish to use it with, you need to enter a gateway
address.
This is not the same as the network timeout, which is set on
the computer. The logic analyzer file timeout is how long the
analyzer keeps a file in the active portion of memory. For slow
network connections, a large file timeout decreases the total
time for a file transfer. Too high a file timeout for a fast
network connection can actually slow file transfers because
too much is in active memory. A good guideline for file
timeout is 150% ofthe average time it takes for packets to go
from source to destination.
The Analyzer Name is for user reference only. It appears in
the status files of the logic analyzer, and in the X Window
display. It is not the same as the IP name.
1-5
