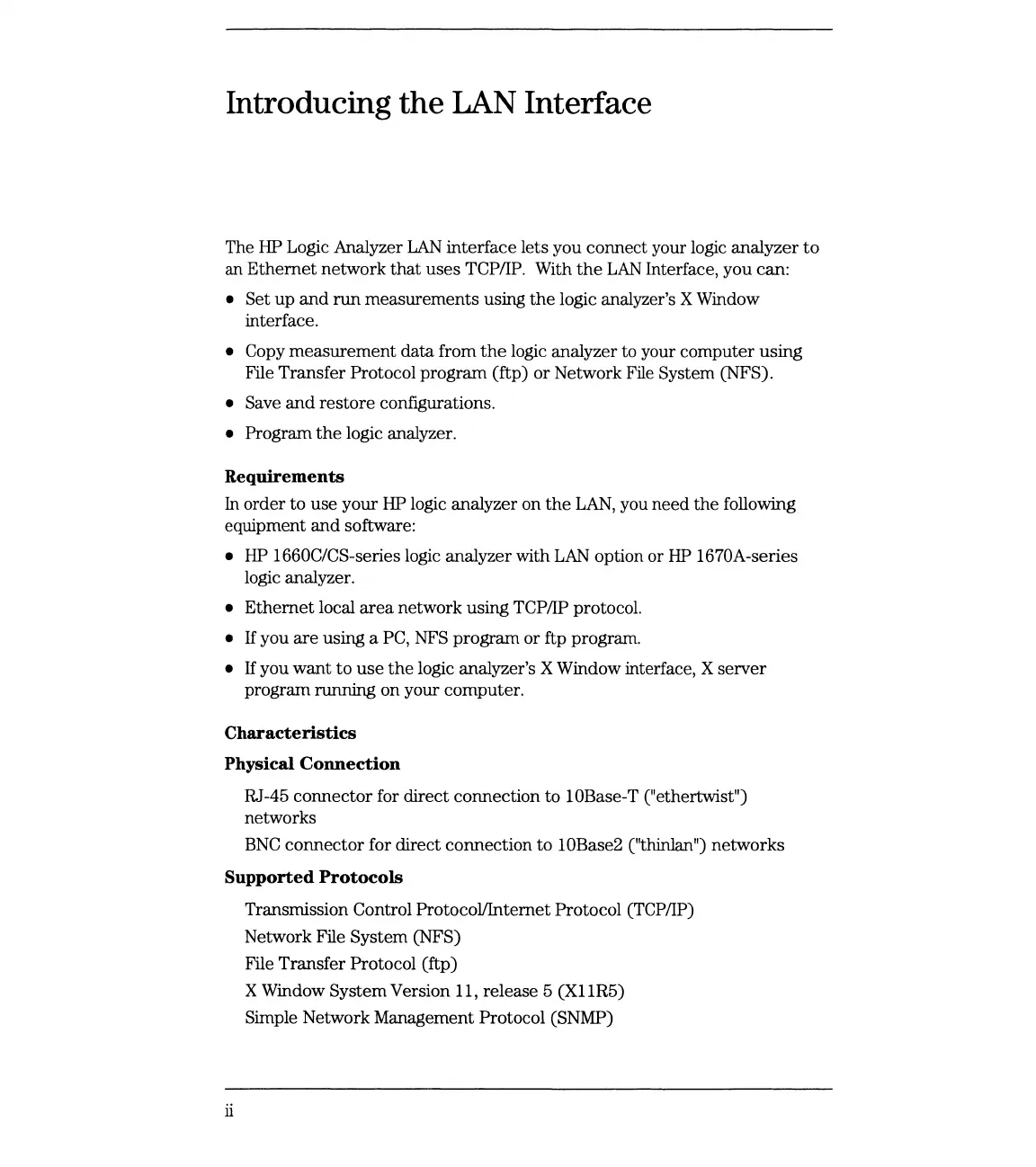

Introducing the LAN Interface
The HP Logic Analyzer LAN interface lets you connect your logic analyzer to
an Ethernet network that uses TCP/IP. With the LAN Interface, you can:
• Set up and run measurements using the logic analyzer's X Window
interface.
• Copy measurement data from the logic analyzer to your computer using
File Transfer Protocol program (ftp) or Network File System (NFS).
• Save and restore configurations.
• Program the logic analyzer.
Requirements
In order to use your HP logic analyzer on the LAN, you need the following
equipment and software:
• HP 1660C/CS-series logic analyzer with LAN option or HP 1670A-series
logic analyzer.
• Ethernet local area network using TCP/lP protocol.
• If you are using a PC, NFS program or ftp program.
• If you want to use the logic analyzer's X Window interface, X server
program running on your computer.
Characteristics
Physical Connection
RJ-45 connector for direct connection to lOBase-T ("ethertwist")
networks
BNC connector for direct connection to 10Base2 ("thinlan") networks
Supported Protocols
ii
Transmission Control Protocol/lnternet Protocol (TCP/lP)
Network File System (NFS)
File Transfer Protocol (ftp)
X Window System Version 11, release 5 (X11R5)
Simple Network Management Protocol (SNMP)
