Example
Programming the Logic Analyzer

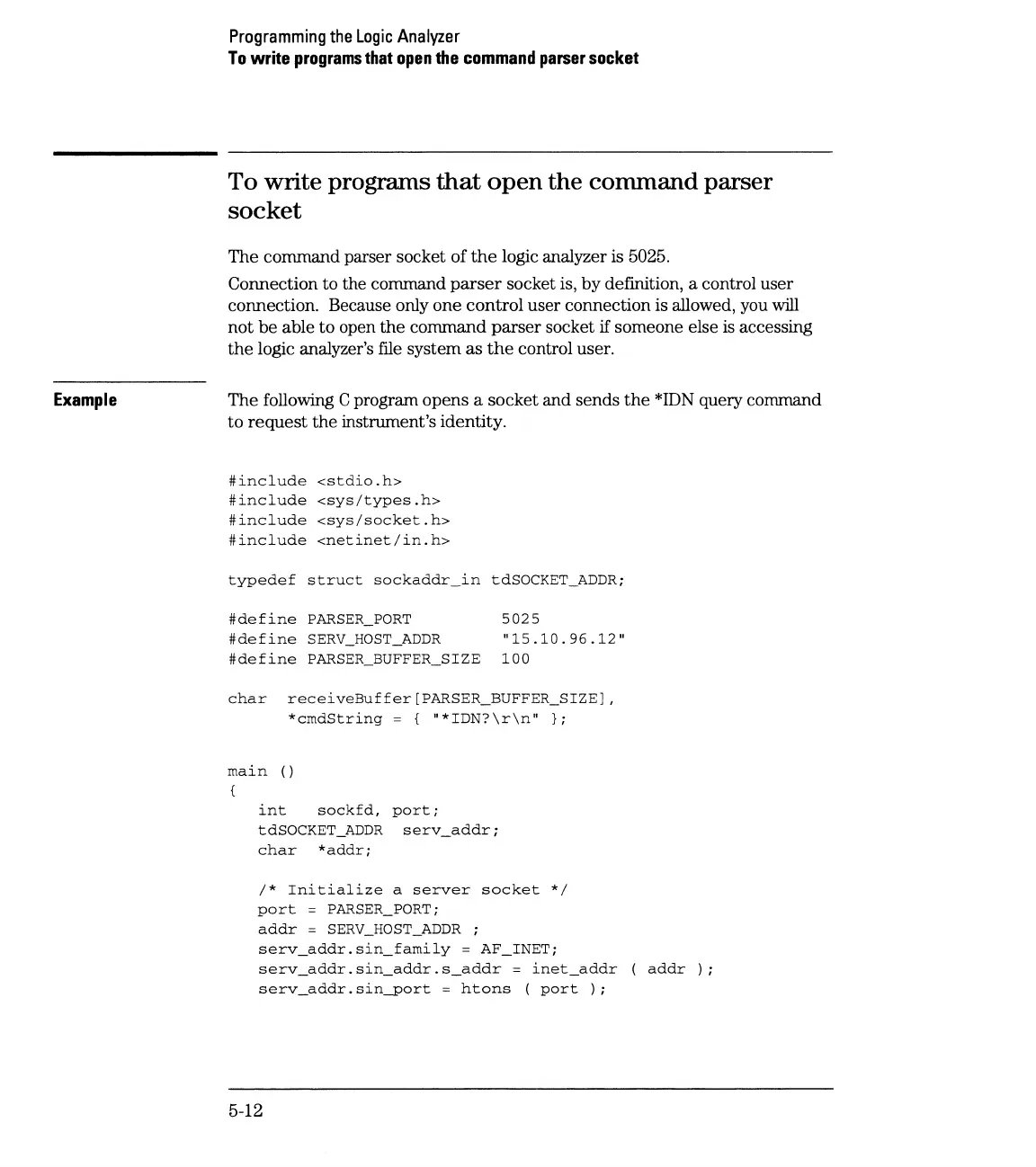

To write programs that open the command parser socket
To write programs that open the command parser
socket
The command parser socket of the logic analyzer is 5025.
Connection to the command parser socket is, by definition, a control user
connection. Because only one control user connection is allowed, you will
not be able to open the command parser socket if someone else is accessing
the logic analyzer's file system as the control user.
The following C program opens a socket and sends the *IDN query command
to request the instrument's identity.
#include <stdio.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/in.h>
typedef struct sockaddr_in tdSOCKET_ADDR;
#define PARSER_PORT 5025
#define SERV_HOST_ADDR "15 .10. 96 .12"
#define PARSER_BUFFER_SIZE 100
char receiveBuffer[PARSER_BUFFER_SIZE],
*cmdString = { "*IDN?\r\n" } ;
main ()
int sockfd, port;
tdSOCKET_ADDR serv_addr;
char *addr;
/* Initialize a server socket */
port = PARSER_PORT;
addr = SERV_HOST_ADDR ;
serv_addr.sin_family = AF_INET;
serv_addr.sin_addr.s_addr = inet_addr ( addr );
serv_addr.sin_port = htons (port);
5-12
