Table 5-6 Solid-state drive descriptions and part numbers
Description Spare part number
1 TB (M.2 2280) N45474-005
1 TB (M.2 2280) (for use in the People's Republic of China) N77394-005
512 GB (M.2 2280) N45476-005
512 GB (M.2 2280) (for use in the People's Republic of China) N77392-005
256 GB (M.2 2280) N45477-005
128 GB (M.2 2230) N42382-005
Before removing the solid-state drive, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 30).
2. Remove the rubber feet (see Rubber feet on page 30).
3. Remove the bottom cover (see Bottom cover on page 31).
4. Remove the battery (see Battery on page 32).

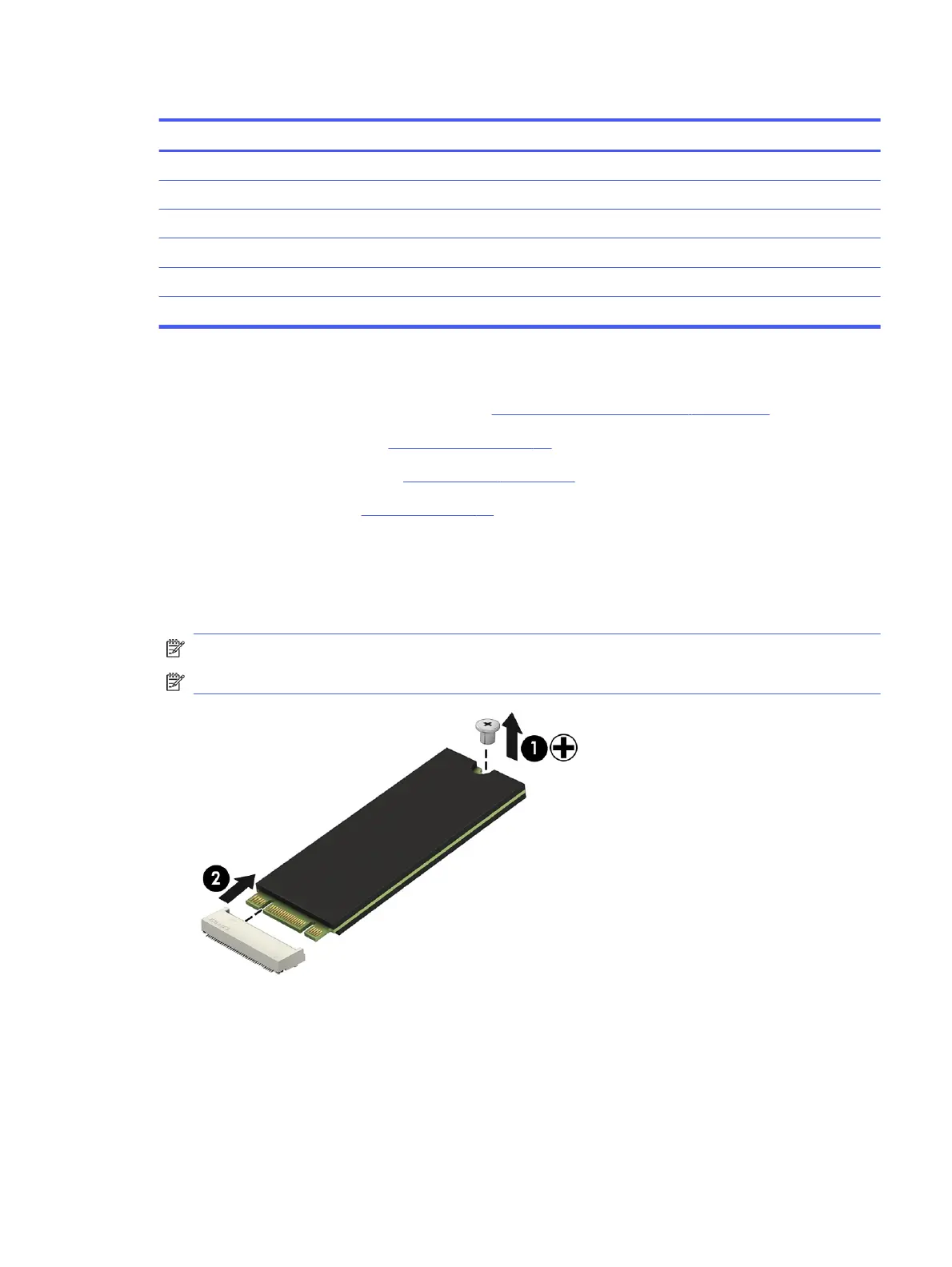

Remove the solid-state drive:
1. Remove the Phillips M2.0 × 2.0 screw (1) that secures the drive to the system board.
2. Remove the drive (2) by pulling it away from the connector.
NOTE: Solid-state drives are designed with notches to prevent incorrect insertion.
NOTE: The illustration below shows the M.2 2280 form factor.
To install the solid-state drive, reverse this procedure.
