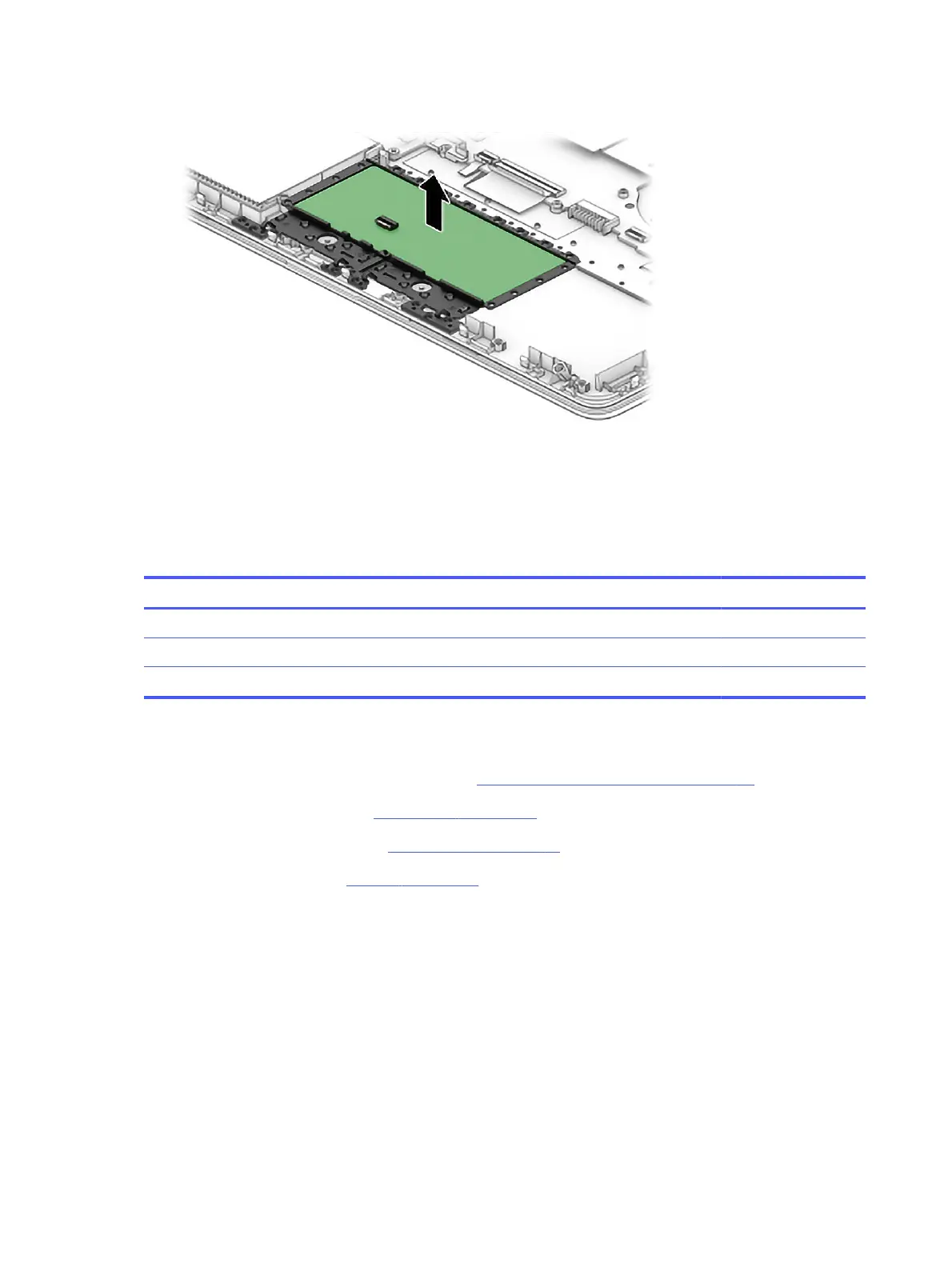

5. Lift the touchpad straight up to remove it from the computer.
To install the touchpad click board and touchpad, reverse this procedure.
USB/power button board
To remove the USB/power button board, use this procedure and illustration.
Table 5-9
USB/power button board and cable descriptions and part numbers
Description Spare part number
USB/power button board N96335-001
USB/power button board cable N96337-001
USB/power button board bracket P04607-001
Before removing the USB/power button board, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 30).
2. Remove the rubber feet (see Rubber feet on page 30).
3. Remove the bottom cover (see Bottom cover on page 31).
4. Remove the battery (see Battery on page 32).
To remove the USB/power button board:
1. Disconnect the cable from the ZIF connector (1) on the board
2. Remove the two Phillips M2.0 × 3.0 screws (2) that secure the board to the computer.
40
Chapter 5 Removal and replacement procedures for authorized service provider parts
