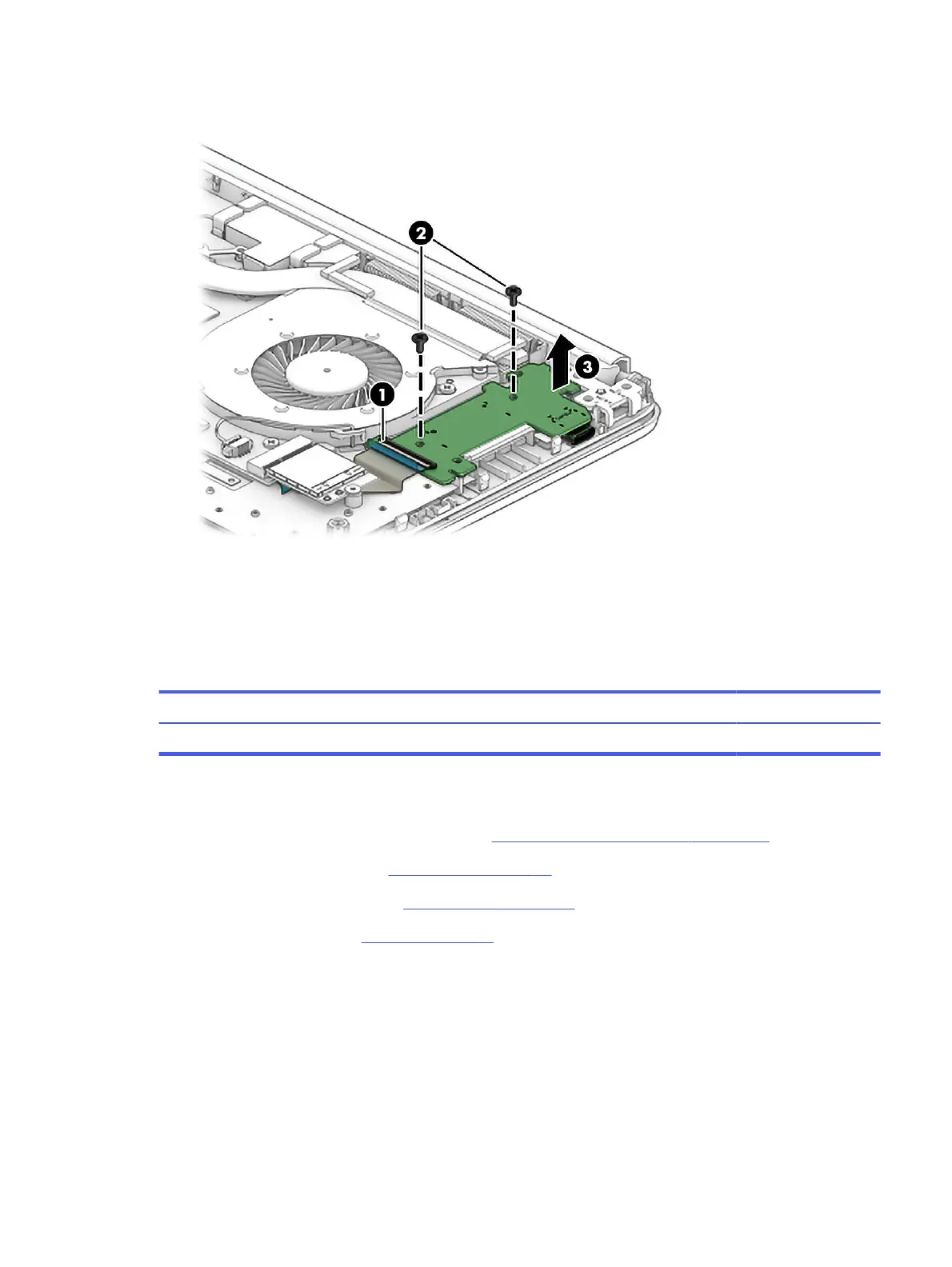

3. Remove the board (3) from the computer.
To install the USB/power button board, reverse this procedure.
Fan
To remove the fan, use this procedure and illustration.
Table 5-10
Fan description and part number
Description Spare part number
Fan N96333-001
Before removing the fan, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 30).
2. Remove the rubber feet (see Rubber feet on page 30).
3. Remove the bottom cover (see Bottom cover on page 31).
4. Remove the battery (see Battery on page 32).
Remove the fan:
1. Disconnect the fan cable (1) from the system board.
2. Remove the two Phillips M2.5 × 5.0 screws (2) that secure the fan to the computer.
Fan
41
