Display assembly
To remove the display assembly, use this procedure and illustration.
Before removing the display assembly, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 30).
2. Remove the rubber feet (see Rubber feet on page 30).
3. Remove the bottom cover (see Bottom cover on page 31).
4. Remove the battery (see Battery on page 32).
To remove the display assembly:

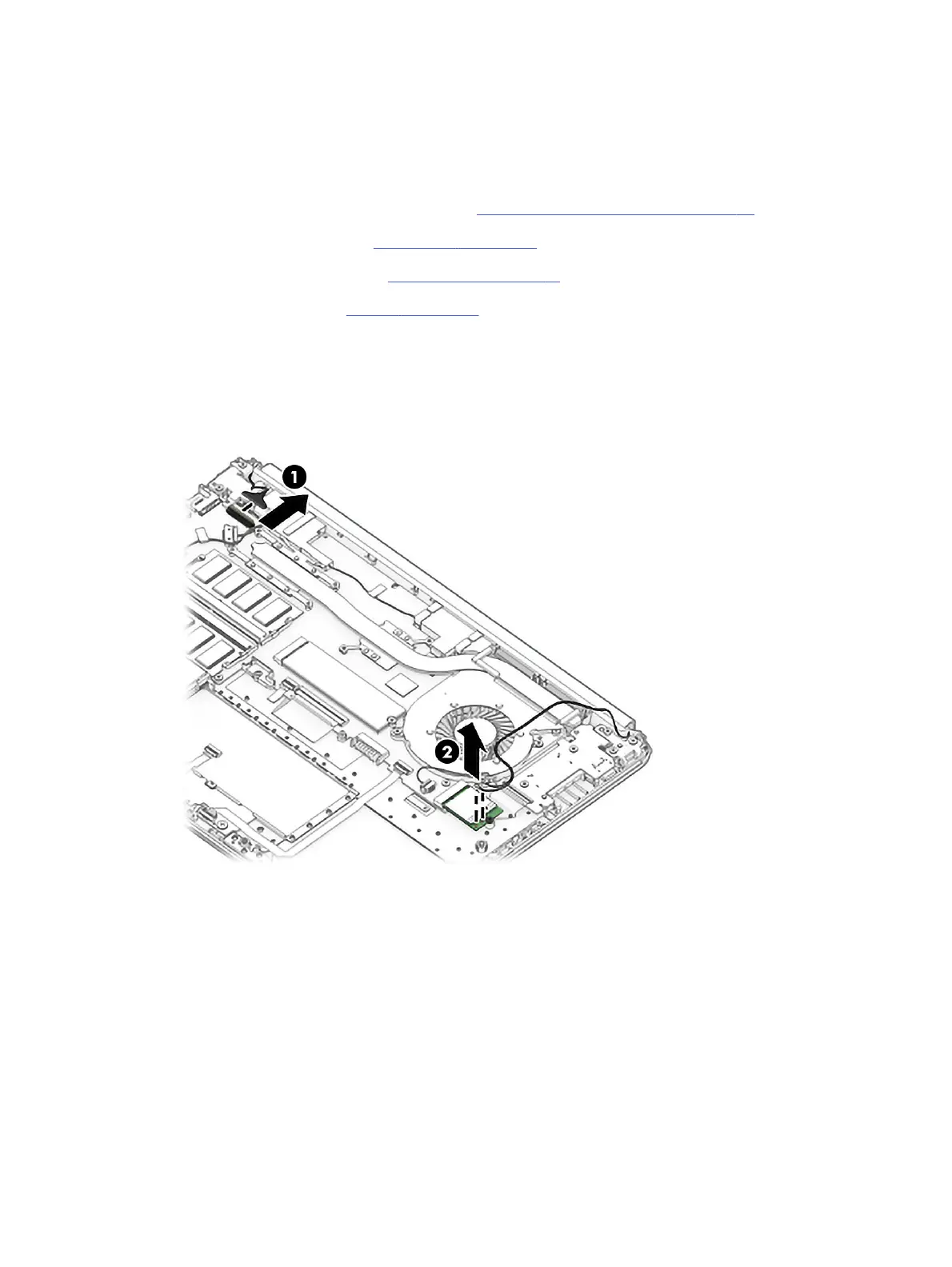

1. Disconnect the display cable (1) from the system board.
2. Disconnect the wireless antenna cables (2) from the WLAN module.
3. Position the computer so it is open with the display (1) hanging off the table.
4. Remove the six Phillips M2.5 × 6.0 screws (2) from the display hinges.
46
Chapter 5 Removal and replacement procedures for authorized service provider parts
