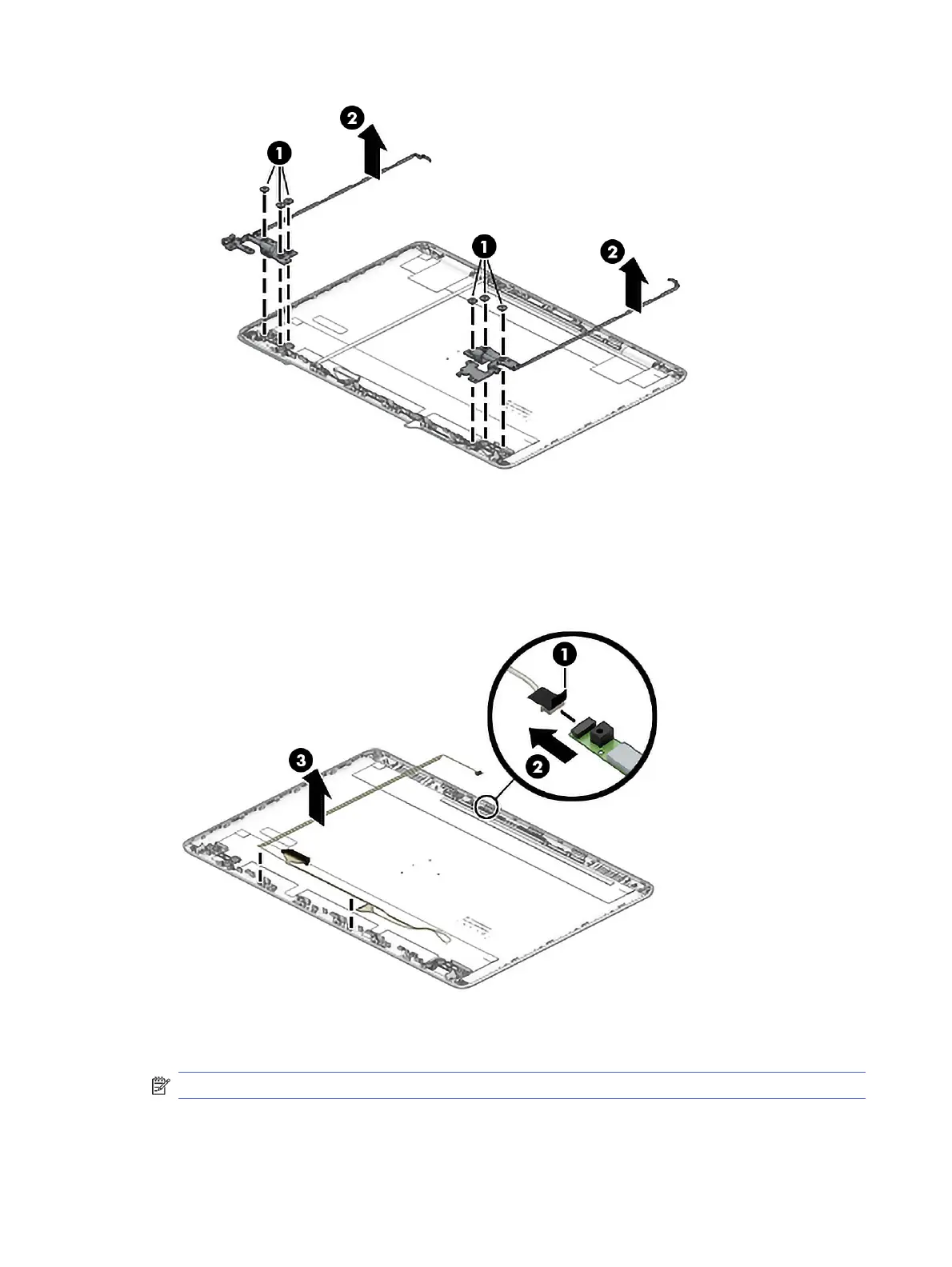

12. To remove the display/camera cable, lift the tape (1) from the connector on the camera module, and
then disconnect the cable (2) from the camera module. Lift the cable (3) from the display rear cover
to disengage the adhesive that secures the cable to the cover.
Display/camera cables are available as spare part number L24492-001 for HD models and
L24493-001 for FHD models.
13. To remove the wireless antennas and cables, peel the antennas (1) off the display enclosure, and
then release the cables from the clips (2) built into the side of the display enclosure.
NOTE: The number of antennas can vary.
52
Chapter 5 Removal and replacement procedures for authorized service provider parts
