HP 3000 Series Handbook

For HP Internal Use Only

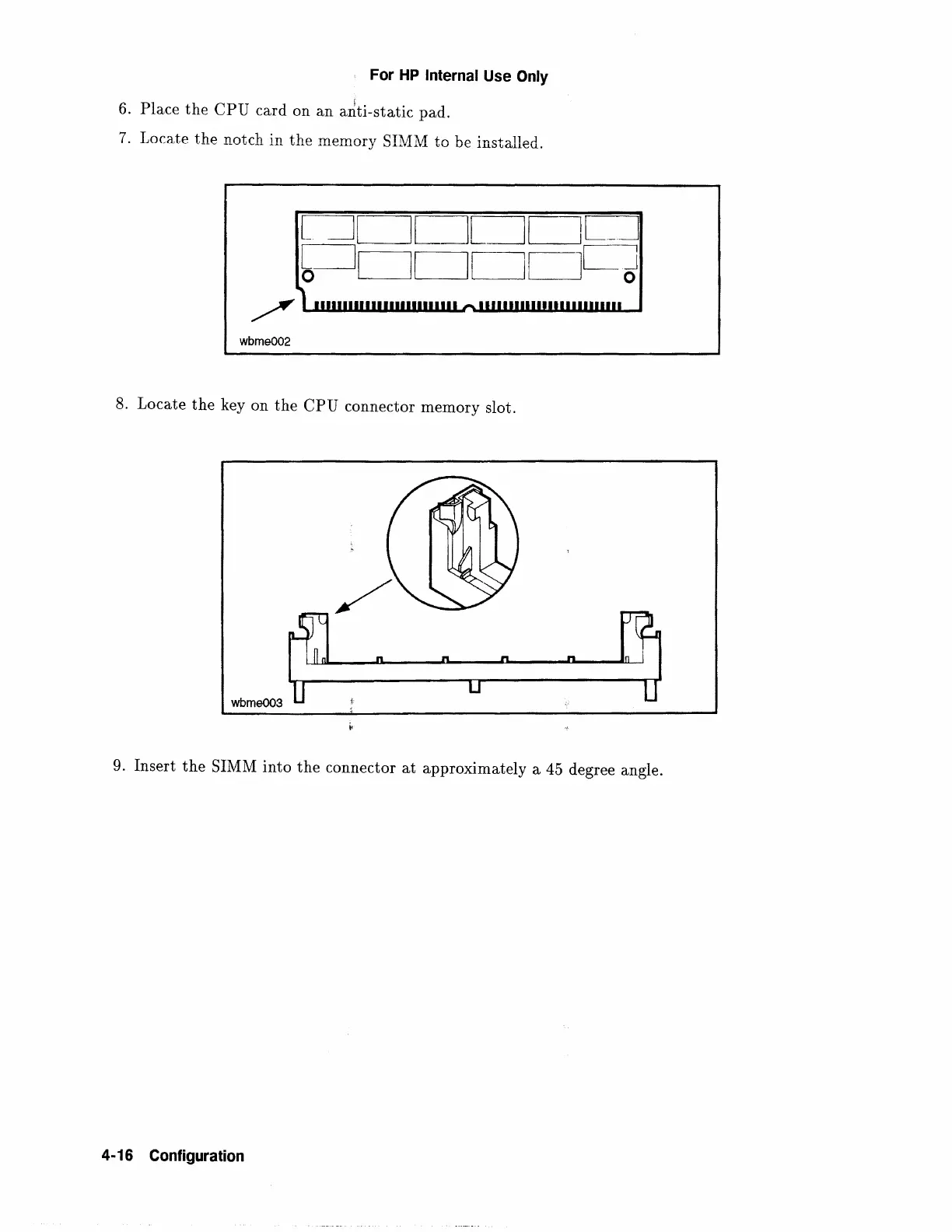

6. Place the CPU card on an a~ti-static pad.
7. Locate the notch in the memory SI1.11.1 to be installed.
wbme002
8. Locate the key on the CPU connector memory slot.
/
wbme003~ 1..---L--~-"L--_-_....lL-"~u~-"-_-_ ........ " _:-_~..,.,.
9. Insert the SIMM into the connector at approximately a 45 degree angle.
4-16 Configuration
