For HP Internal Use Only
'··-~~_:.:::.--~'
wbme004

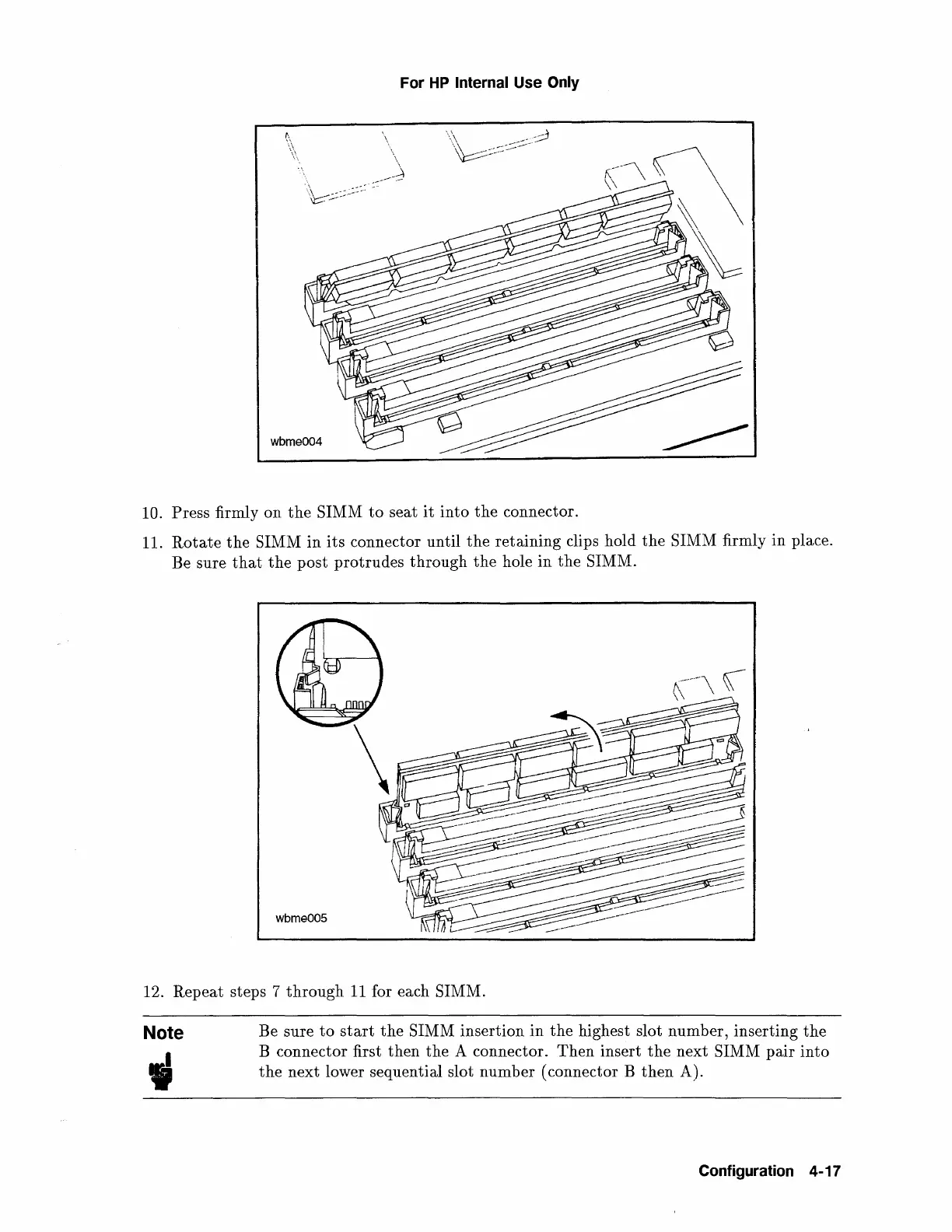

10. Press firmly on the SIMM to seat it into the connector.
11. Rotate the SIMM in its connector until the retaining clips hold the SIMM firmly in place.
Be sure
that the post protrudes through the hole in the SIMM.
12. Repeat steps 7 through 11 for each SIMM.
Note
i
Be sure to start the SIMM insertion in the highest slot number, inserting the
B connector first then the A connector. Then insert the next SIMM pair into
the next lower sequential slot number (connector B then A).
Configuration 4-17
