HP 3600 v2 Series Security Configuration Guide

60

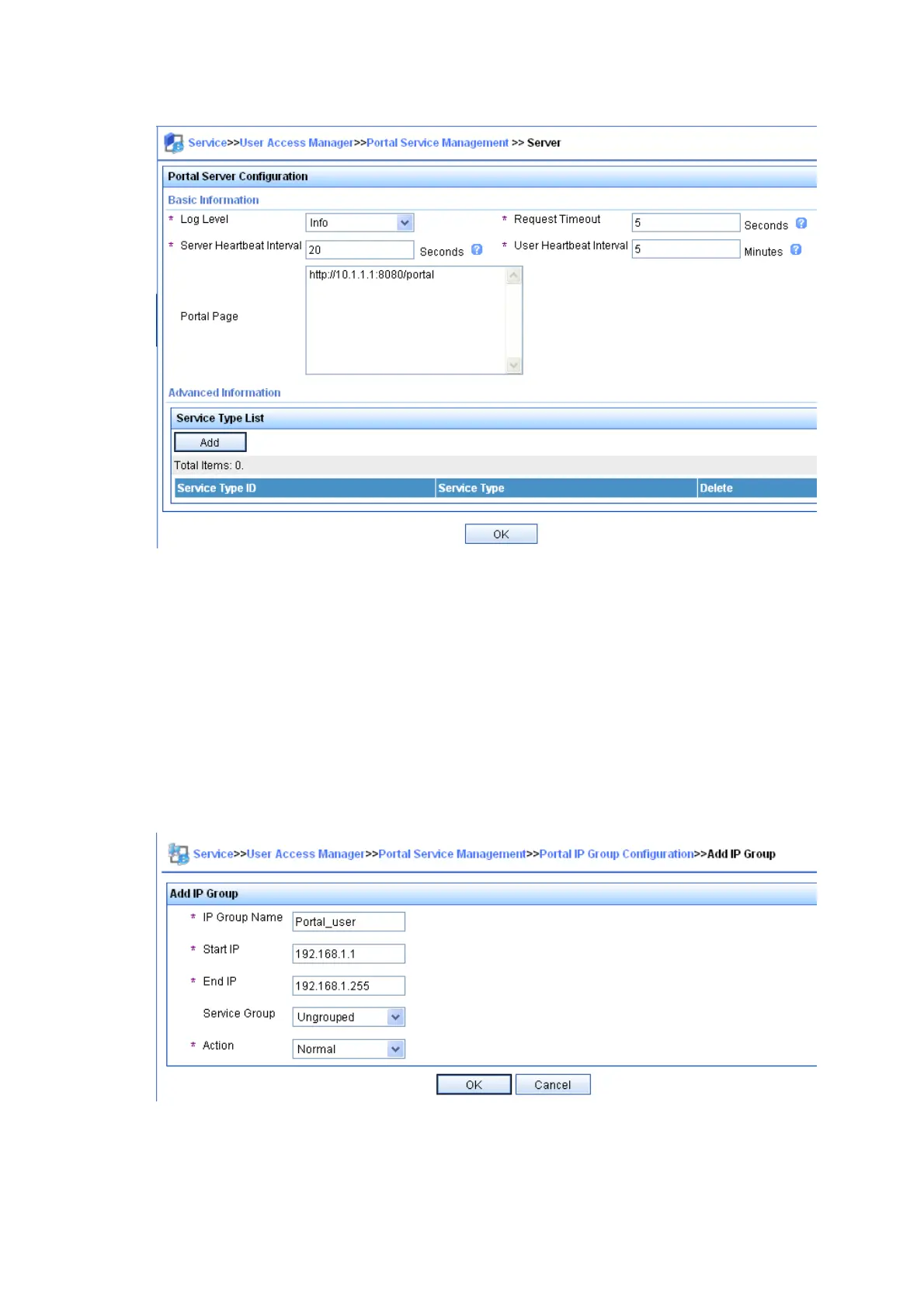

Figure 21 Portal server configuration
# Configure the IP address group.
Select User Access Manager > Portal Service Management > IP Group from the navigation tree to enter
the portal IP address group configuration page. Then, click Add to enter the page for adding an IP
address group, as shown in Figure 22.
• In
put the nam
e Portal_user
• Set the start IP address to 192.168.1.1 and the end IP address to 192.168.1.255. The host IP address
must be within this IP address group.
• Select Normal for Action.
• Click OK
Figure 22 Add an IP address group
# Add a portal device.
