On the port group configuration page, click Add to enter the page for adding a port group, as shown

in Figure 25. Pe

rform the following configurations:

• Type the port group name.

• Select the configured IP address group. The IP address used by the user to access the network must

be within this IP address group.

• Use the default settings for other parameters and click OK to finish the operation.

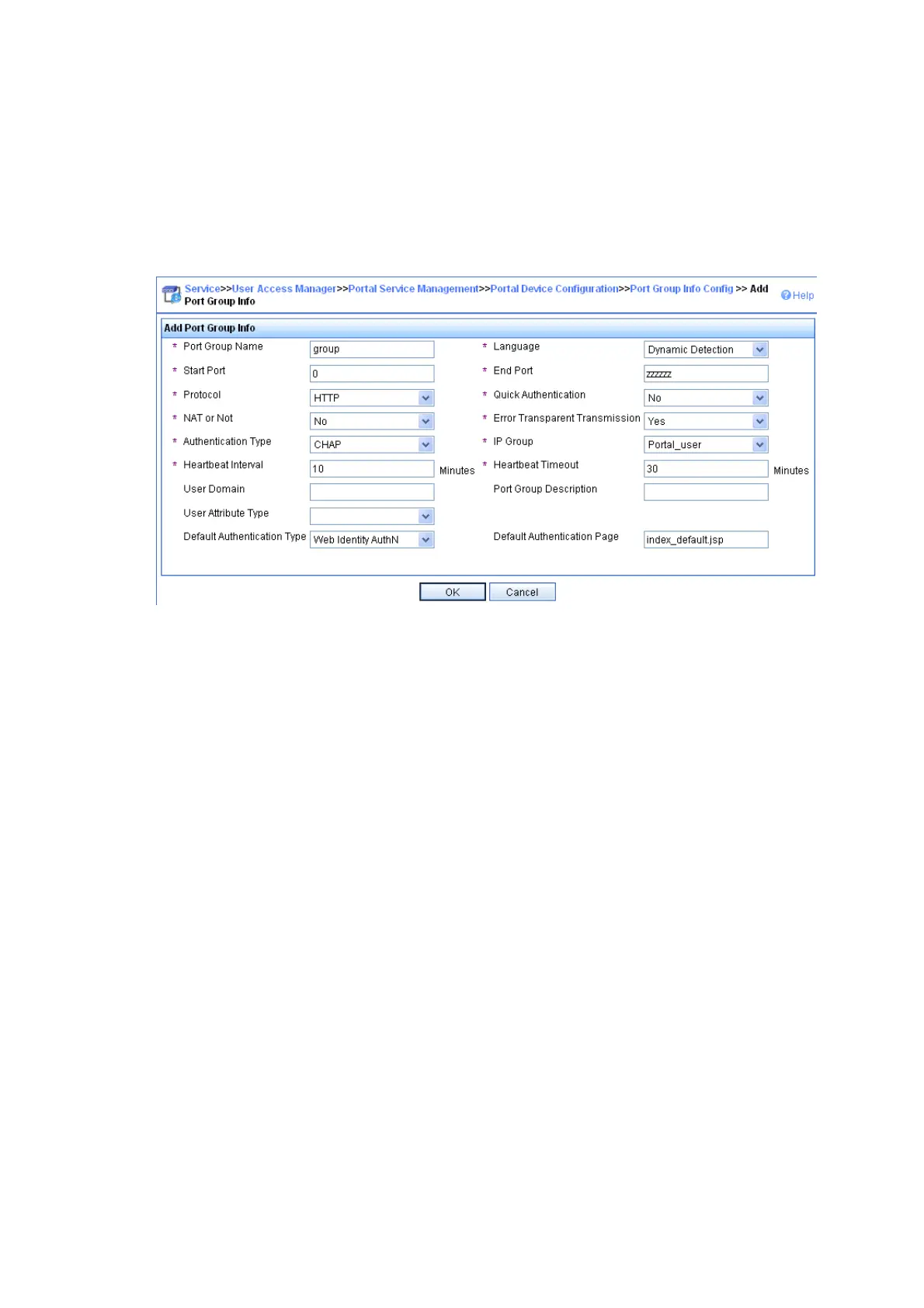

Figure 25 Port group configuration

# Select User Access Manager > Service Parameters > Validate System Configuration from the

navigation tree to validate the configurations.

3. Configure the switch

• Configure a RADIUS scheme

# Create a RADIUS scheme named rs1 and enter its view.

<Switch> system-view

[Switch] radius scheme rs1

# Set the server type for the RADIUS scheme. When you use the iMC server, set the server type to

extended.

[Switch-radius-rs1] server-type extended

# Specify the primary authentication server and primary accounting server, and configure the keys for

communication with the servers.

[Switch-radius-rs1] primary authentication 10.1.1.1

[Switch-radius-rs1] primary accounting 10.1.1.1

[Switch-radius-rs1] key authentication expert

[Switch-radius-rs1] key accounting expert

# Configure the scheme to include the domain names in usernames to be sent to the RADIUS server.

[Switch-radius-rs1] user-name-format with-domain

[Switch-radius-rs1] quit

• Configure an authentication domain

# Create an ISP domain named dm1 and enter its view.
