Performance Tests

SDH Frequency Offsets (Options US1, [US5], A1T, [A1U], A3R [A3S],

120)

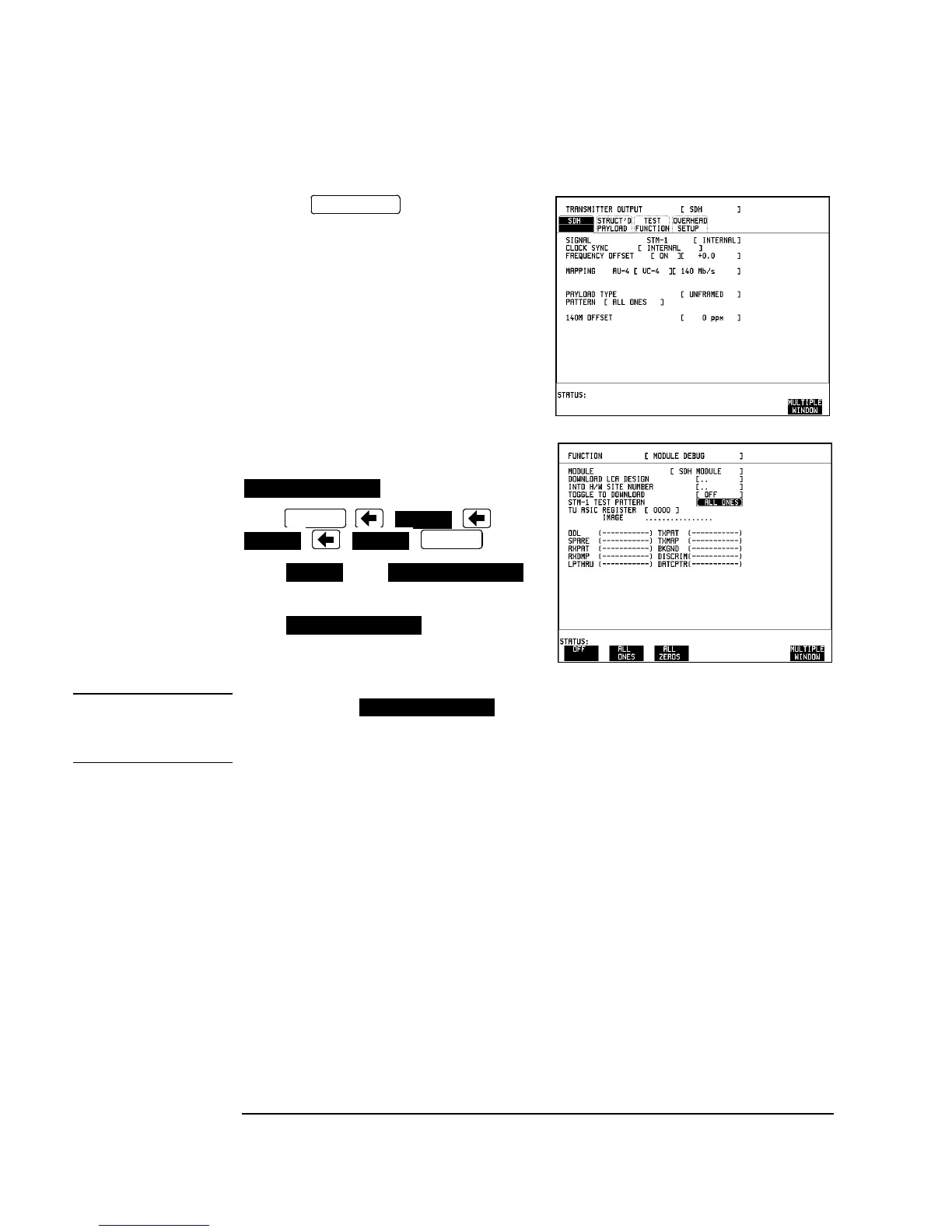

3. Press and set up the

display as shown opposite.

4. Make the following key sequence on

the HP 37717C to obtain the special

display.

Press ; ; ; ;

;; ; . .

Press until

appears in the softkey menu.

Press and set up the

display as shown opposite.

CAUTION When using the display, ONLY modify the STM-1 TEST

PATTERN. Altering other parameters can damage instrument ﬁrmware - exit this

display after setup to eliminate any possibility of accidental modiﬁcation.

5. Adjust the Frequency Counter Trigger Level to obtain a stable reading.

6. Take note of the measured frequency (MF).

7. Select the frequency offset settings given in Table 3-4 and verify the frequency at

each step against the measured frequency (MF) noted in step 6.
