Selecting and Using "Other" Features
Running Self Test
Running Self Test
Description Before using the HP 37717C to make measurements, you can run Self
Test ALL TESTS to ascertain the integrity of the HP 37717C. These tests
take between 15 minutes and 1 hour to complete depending on the
options fitted.

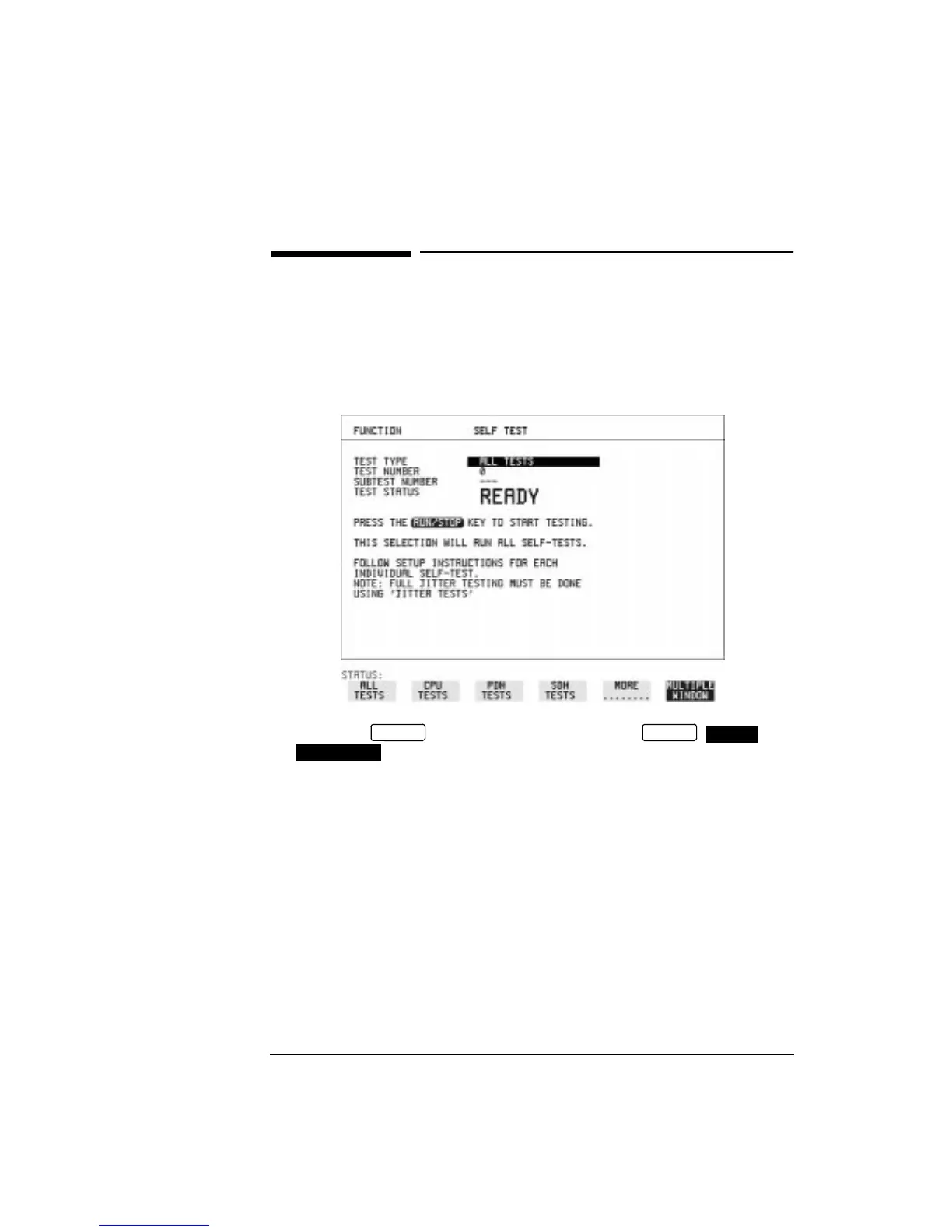

HOW TO: 1 Set up the display as shown above using , and
2 Insert a formatted disk into the instrument disk drive.
3 Make the required loopback connections.
The loopback connections required depend on the TEST TYPE
selection.
The following loopback connections are for the ALL TESTS selection.
PDH Loopbacks:
Connect 75 Ω Signal In to 75 Ω Signal Out.
Connect 120 Ω Signal In to 120 Ω Signal Out.
If Option UKJ or 110 is fitted, connect MUX port to DEMUX port.
OTHER OTHER
MORE
SELF TEST
