20
Setting the Interfaces

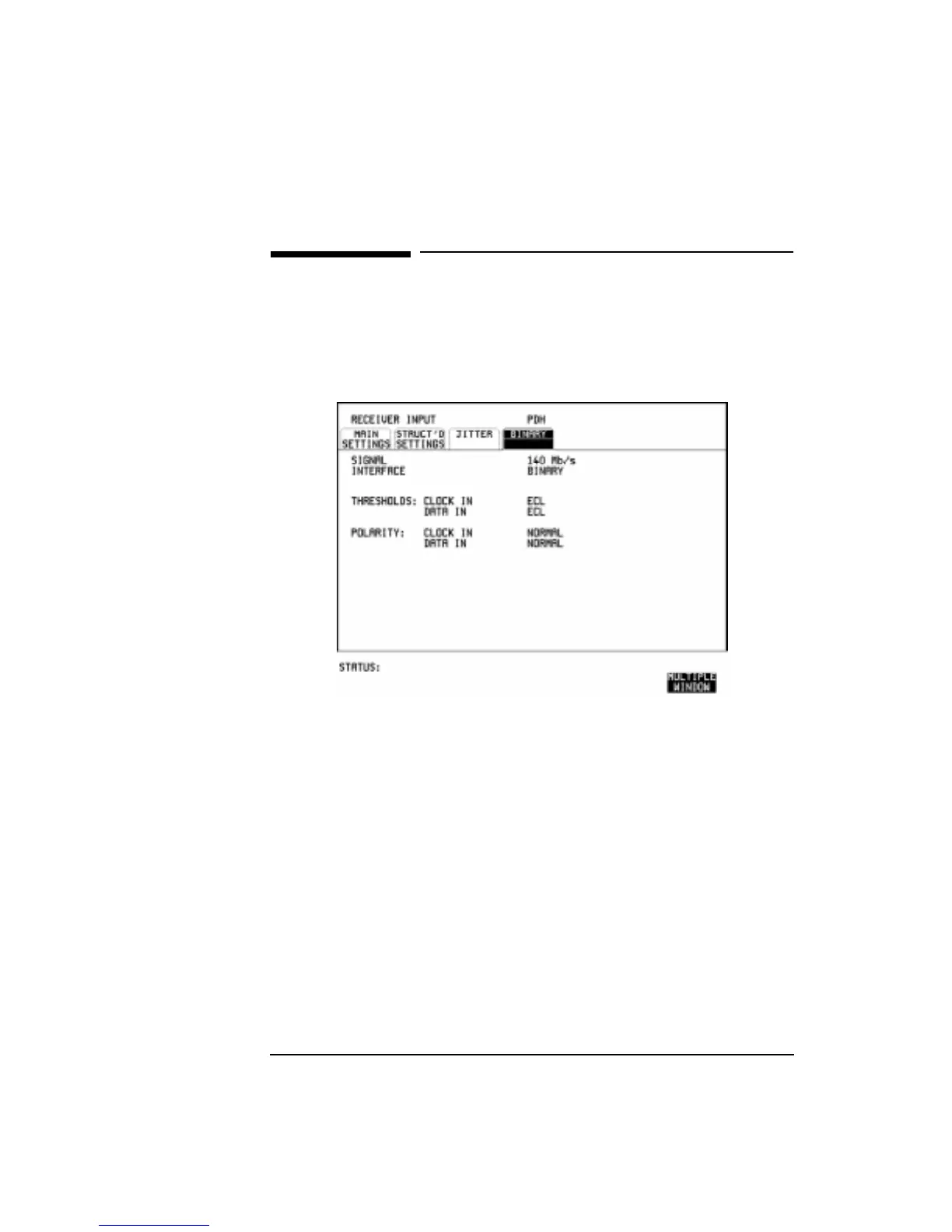

Setting PDH Receive Binary Interface
Setting PDH Receive Binary Interface
Description PDH Receive binary interface settings should match the network
equipment threshold and polarity requirements for the binary interfaces.
HOW TO: 1 Set up the PDH receive interface required. See "Setting PDH Receive
Interface " page 18.
If INTERFACE [CODED] is chosen, binary interfaces are not
available.
2 If INTERFACE [BINARY] is chosen, then choose the required
THRESHOLDS and POLARITY for Clock and Data.
