Setting the Interfaces
Setting Jitter Receive Interface
Setting Jitter Receive Interface
Description: PDH Jitter and PDH error measurements are made simultaneously
when a PDH jitter measurement Option is fitted. The measurements are
made on the normal input to the PDH receiver and the interface
selections are the normal PDH Receiver selections. The jitter receive
interface is selected with JITTER.
SDH/SONET Jitter and SDH/SONET error measurements are isolated
individual measurements. The SDH/SONET jitter measurement is made
on an SDH/SONET input to the Jitter module and there is a specific
receive interface displayed with .
The choices made on the jitter receive interface determine the jitter
measurement range, the threshold level for determining a jitter hit and
which filters are used in the jitter measurement.

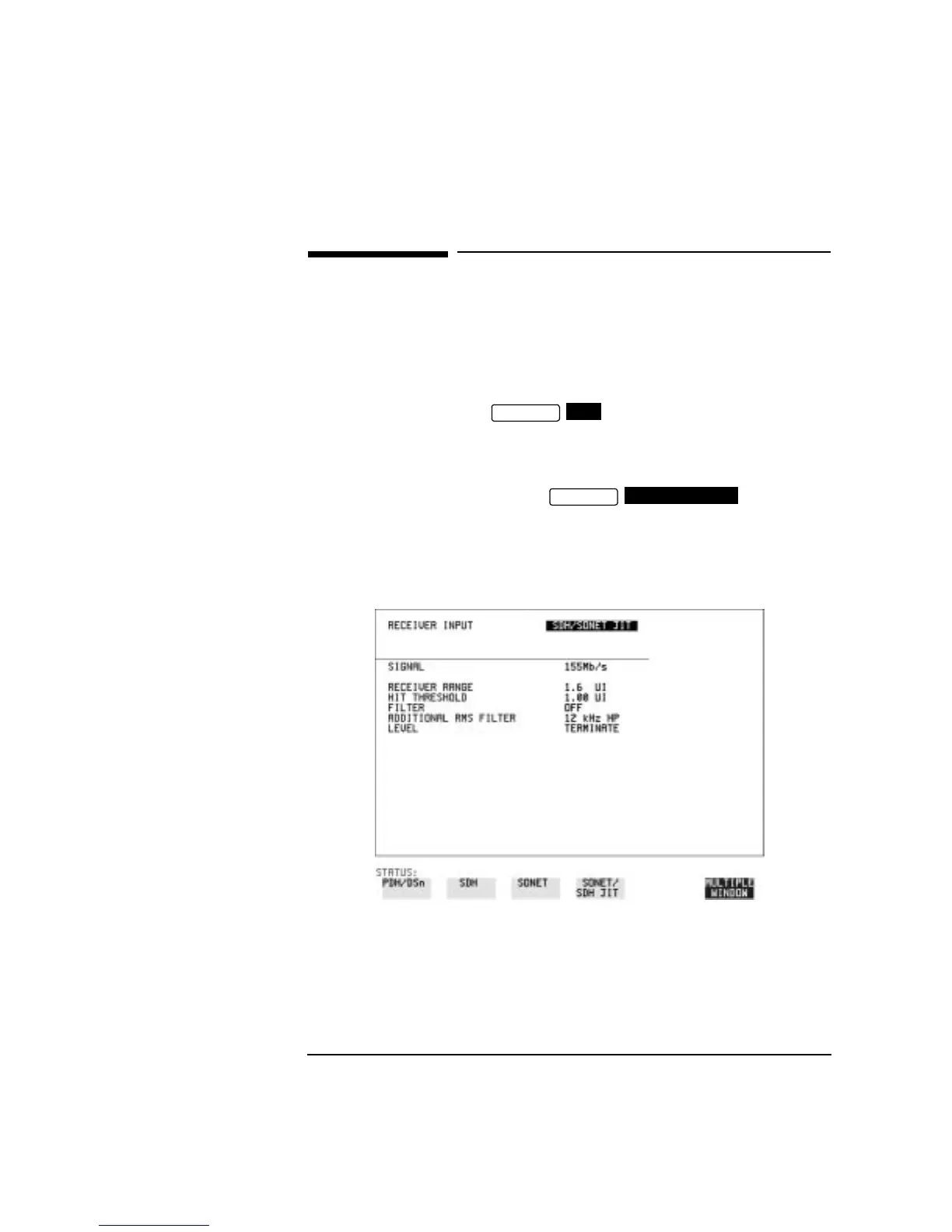

HOW TO: 1 Choose the RECEIVER RANGE - the jitter measurement range.
2 Choose the HIT THRESHOLD level - if the received jitter exceeds the
value chosen a jitter hit is recorded.
3 Choose the FILTER you wish to include in the peak to peak and RMS
jitter measurement.
RECEIVE
PDH
RECEIVE
SDH /SONET JIT
