Setting the Interfaces

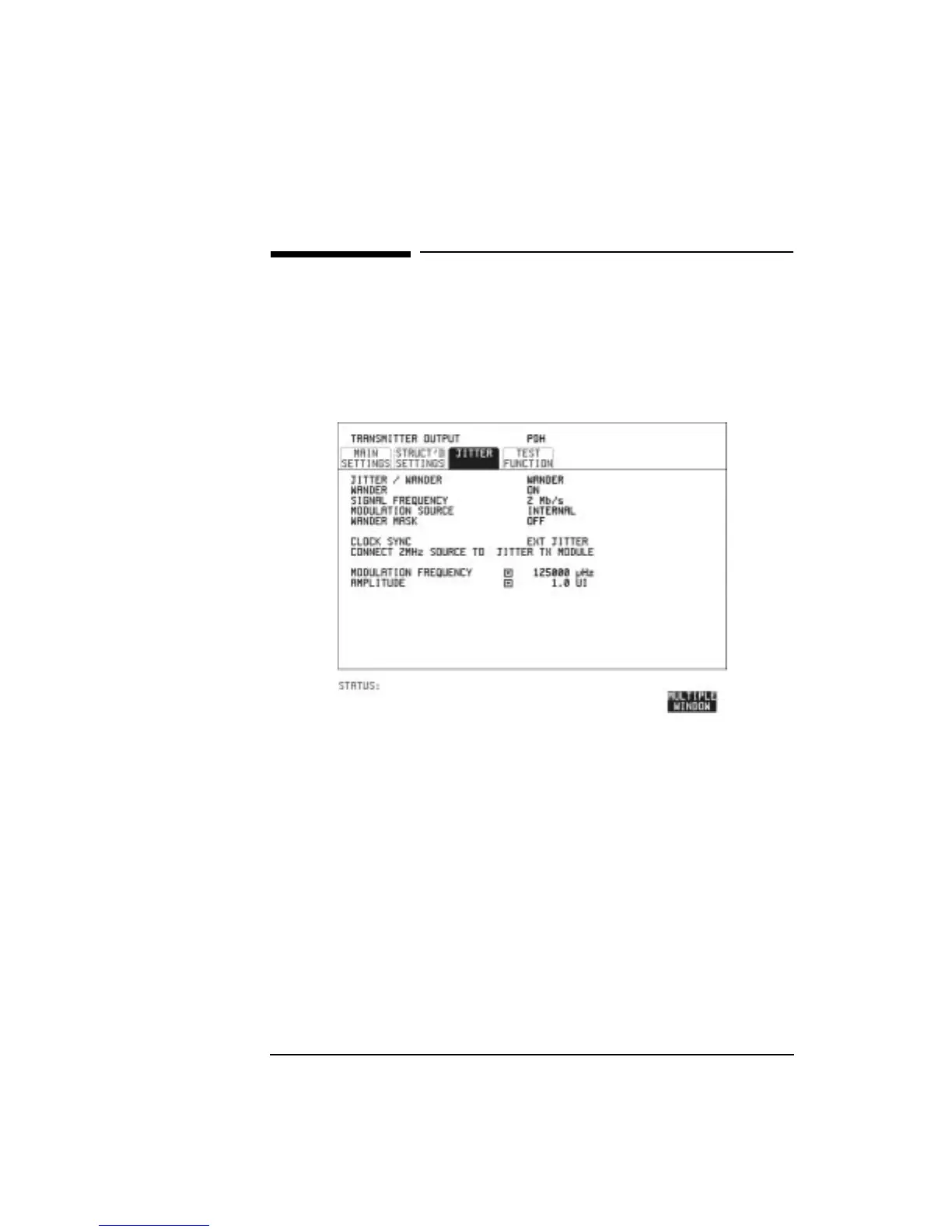

Setting Wander Transmit Interface
Setting Wander Transmit Interface
Description: You can add Wander to the 2 Mb/s PDH signal and the STS-3 and
STS-12 SONET signal. An external 2 Mb/s clock must be connected to
the 2M REF IN port of the Jitter TX module.
HOW TO: 1 Connect an external 2 Mb/s clock to the 2M REF port of the Jitter TX
module.
2 If you are adding jitter to the 2 Mb/s PDH signal set up the PDH
transmit interface and choose CLOCK SOURCE [EXT JITTER]. See
"Setting PDH Transmit Interface " page 2.
If you are adding jitter to the STS-3 or STS-12 SONET signal set up
the SONET transmit interface and choose an external CLOCK
SOURCE. See "Setting SONET Transmit Interface " page 6.
3 Choose JITTER/WANDER [WANDER].
If you wish to add jitter to the PDH or SONET signal, see "Setting
Jitter Transmit Interface " page 9.
4 Choose WANDER [ON].
