Storing, Logging and Printing

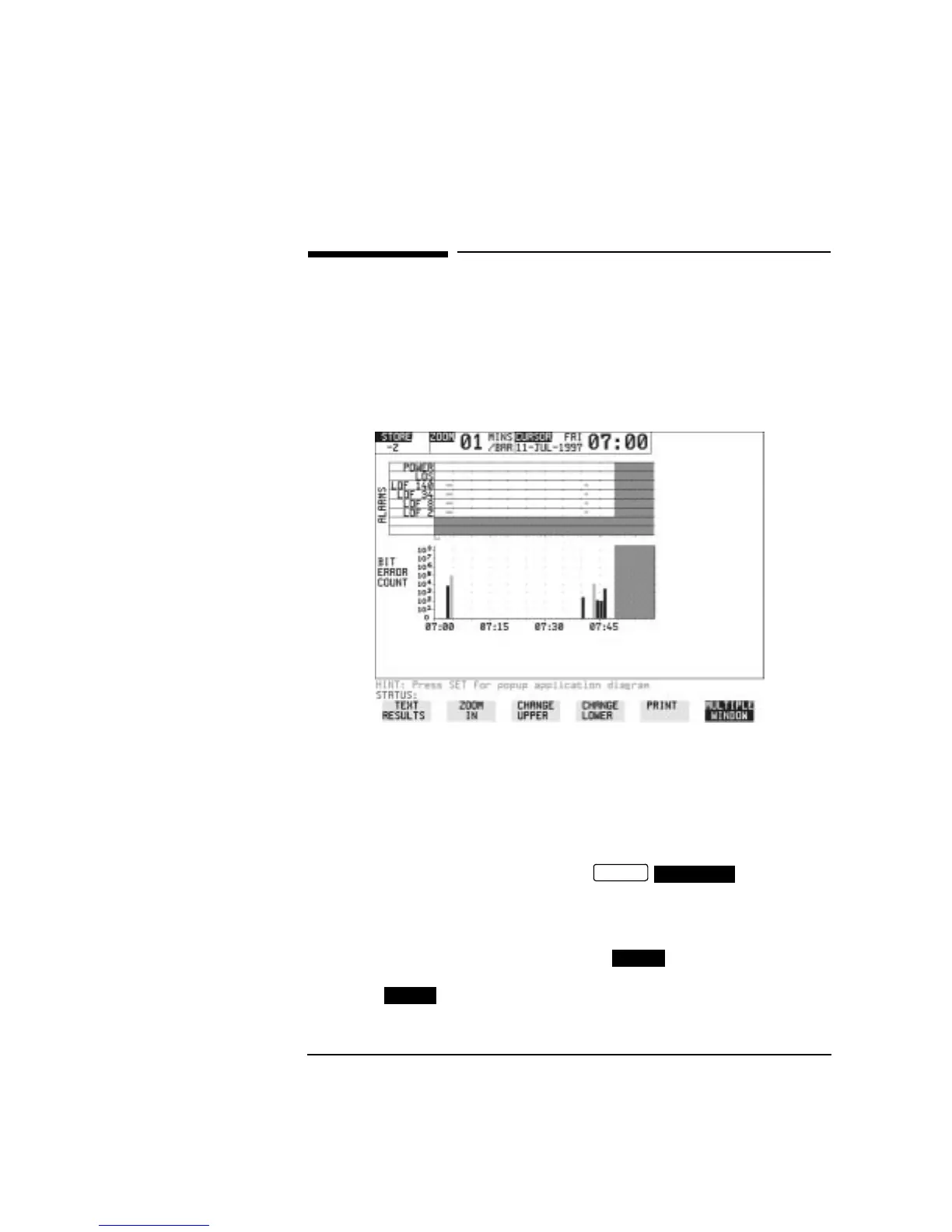

Logging Graph Displays
Logging Graph Displays
Description If Option A3B or Option A3D, Remote Control, is fitted, the bar graphs
and error and alarm summary can be logged to an external HP DeskJet
printer at the end of the test period. If a printer is not immediately
available, the graphics results remain in memory and can be logged at a
later time when a printer becomes available.
HOW TO: 1 Connect an external RS-232-C HP DeskJet printer to the HP 37717C
RS232 port. See "Logging Results to RS-232-C Printer " page 126 or
connect an external HP-IB HP DeskJet printer to the HP 37717C HP-
IB port. See "Logging Results to HP-IB Printer " page 124 or connect
a Parallel DeskJet printer to the HP 37717C Parallel port. See
"Logging Results to Parallel (Centronics) Printer " page 123.
2 Make the required selections on the display:
LOGGING PORT [HPIB] or [RS232] or [PARALLEL] and LOGGING
[ON].
3 To log the Error and Alarm summaries, the displayed Bar graphs and
the Alarm graph to the printer, choose on the bar graph
display. To log the selected Error and Alarm summaries to the printer,
choose on the Text Results display.
OTHER
LOGGING
PRINT
PRINT
