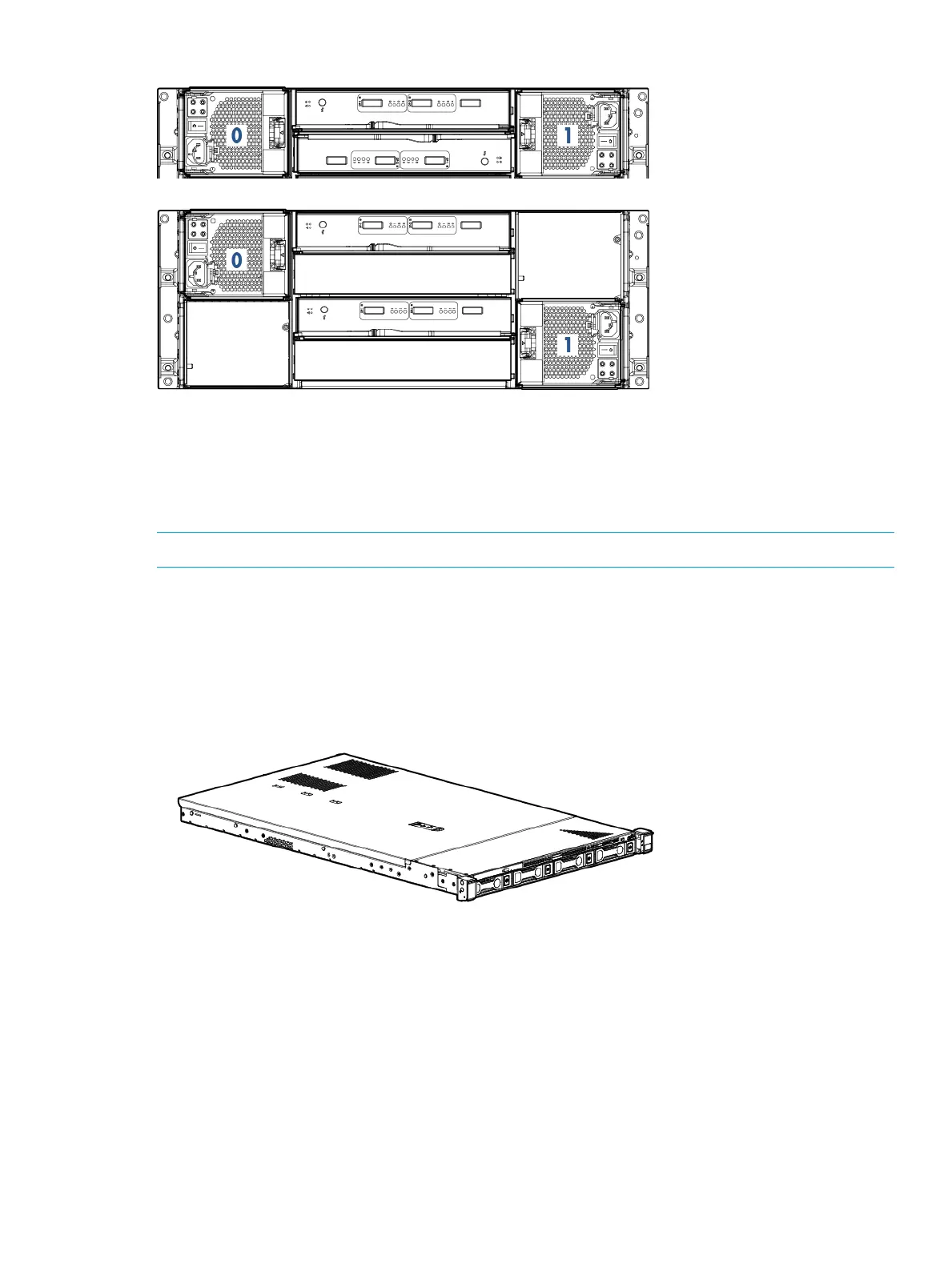

Figure 8 PCMs in a HP M6710 (2U) and HP M6720 (4U) Drive Enclosures
Power Distribution Units
Two power distribution units (PDU) are mounted horizontally at the bottom of the rack. The PDUs
are numbered 0 and 1 from bottom to top. The default configuration for the HP Intelligent Series
Racks is two PDUs mounted vertically at the bottom of the rack so to provide a front-mounting unit
space.
NOTE: Depending on configuration, PDUs can also be mounted vertically.
Service Processor
The HP 3PAR StoreServ 7000 and 7000c Storage system uses either a physical service processor
(SP) or virtual service processor (VSP). If your configuration includes an SP, the SP rests at the
bottom of the rack under the enclosures and above the PDUs.
Figure 9 HP 3PAR Service Processor DL 320e
Understanding Component Numbering 15
