4-14
Connecting Cables
Network Connection
Network Connection
LAN circuits use the Ethernet/IEEE 802.3 standard interface. Only the
Attachment Unit Interface (AUI) version is used; no BNC connector is pro-
vided for ThinLAN. Figure 4-7 shows the AUI LAN connector. Also refer to
Figure 4-1.
The AUI connector enables connections to an external MAU.

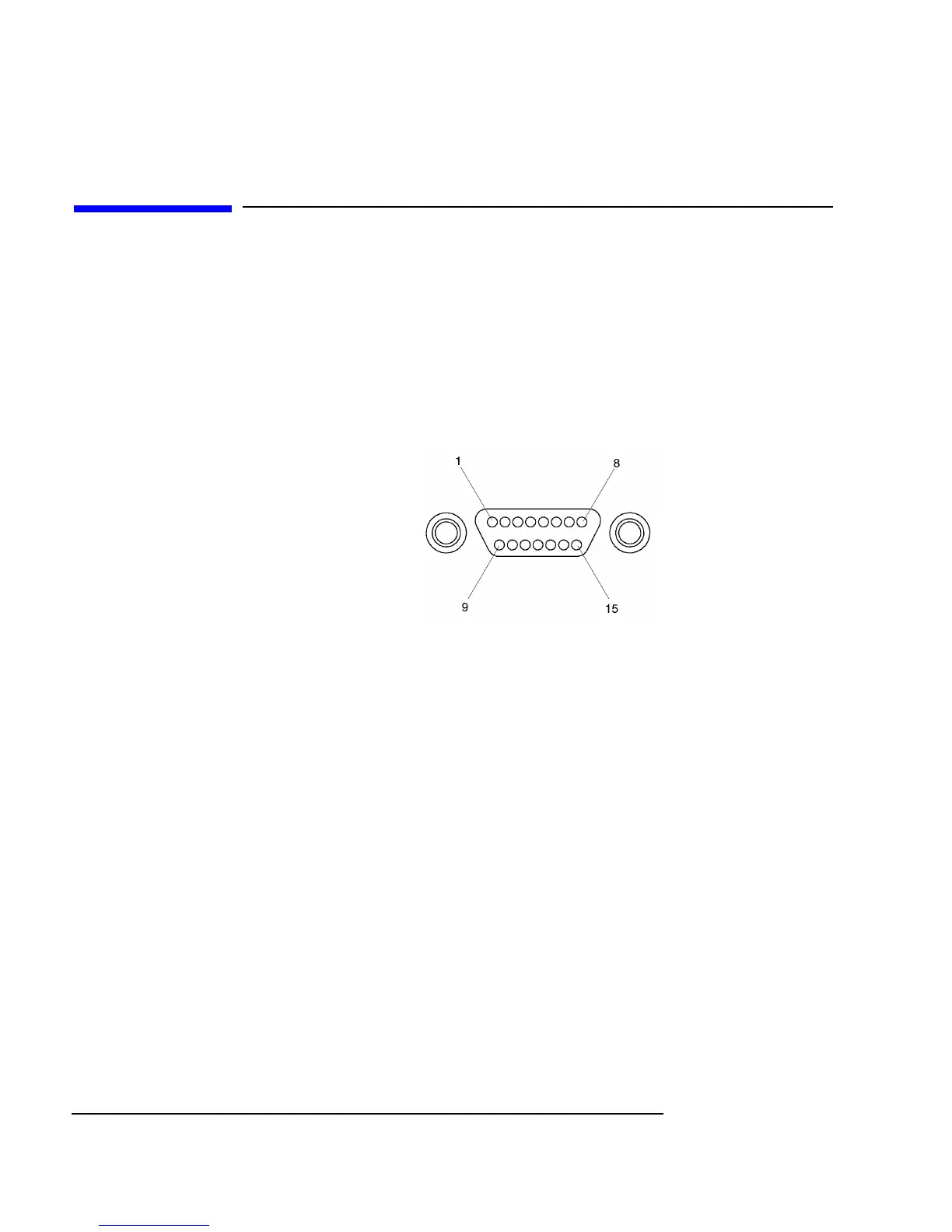

Figure 4-7 AUI LAN Connector
Table 4-6 shows the AUI LAN connector pinouts.
