Model 7475A
A7
10
A6
9
A5
8
A4
7
A3 6
A2
5
A1
4
Ae
3
A1e
25
A12
24
A9
21
AB
20
A11
23
cs
22
1-A-27-1
X+V
U16
2
4
8
16
32
64
128
256
512
1024
2048
4096
A0-8191
VPP
VCC
VSS
1
26,28
14
+5V
+5V
Read only
memory
with
8192
addr-s
and
8-bit parallel
output.
Each
output
byte
is
selected by
the
12-bit
address in
the
upper
left corner
of
the
control block.
Output
is
enabled only when
F1
is
high and G2
is
low.

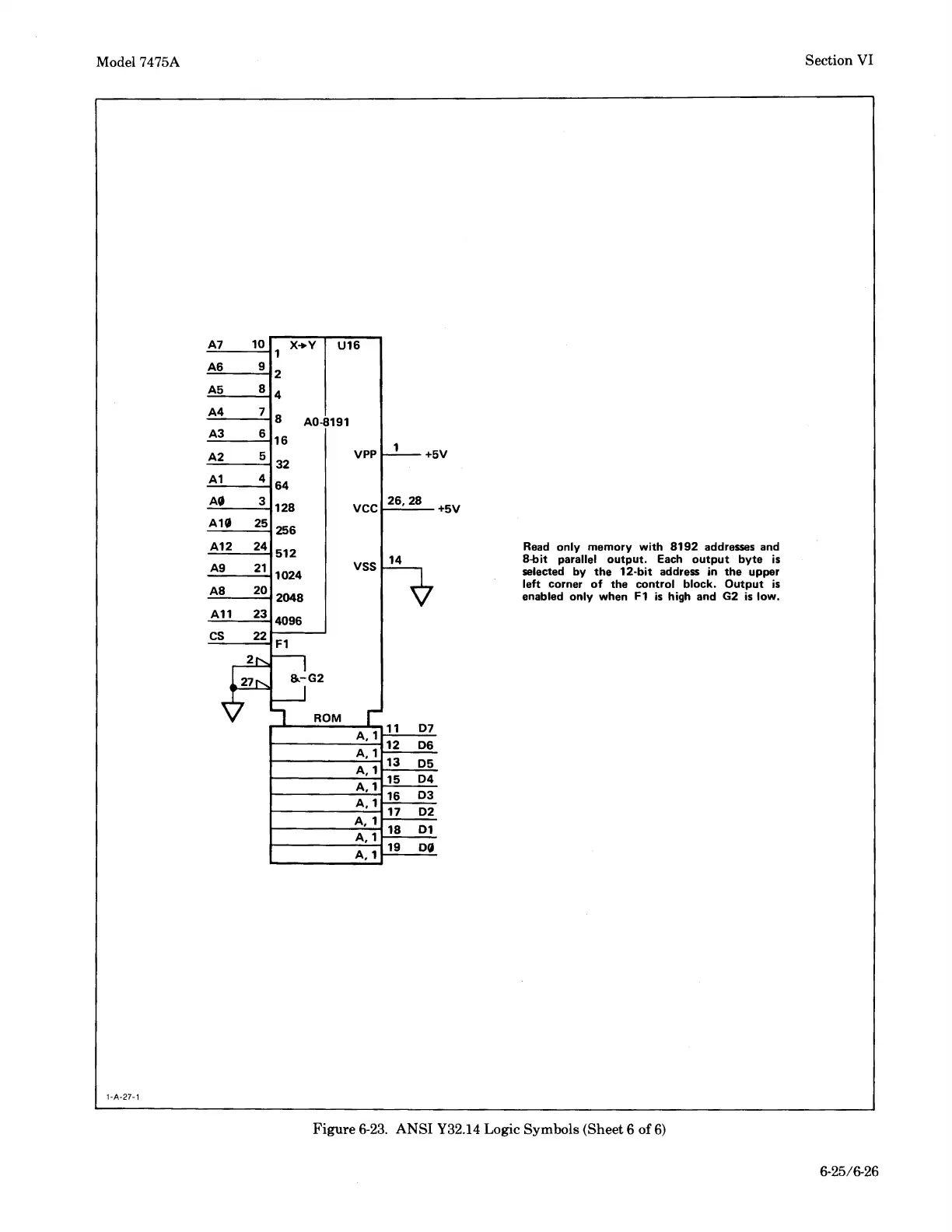

Figure
6-23.
ANSI Y32.14 Logic Symbols (Sheet 6
of
6)
Section VI
6-25/6-26
