HP Access Control - Figure 1-12 Remove EIO Plate - HP Laserjet M5035 MFP

5. Remove the existing EIO plate.

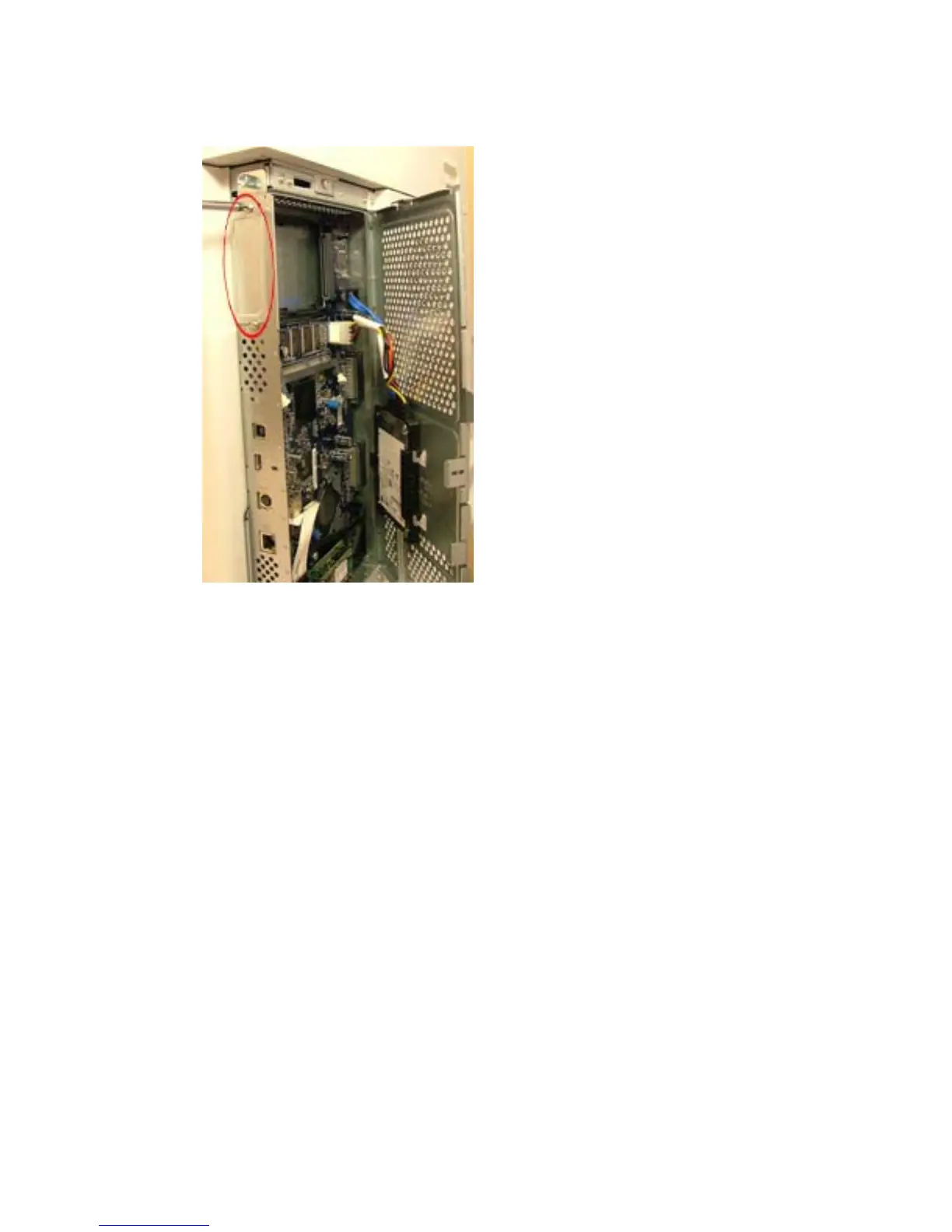

Figure 1-12 Remove EIO plate — HP LaserJet M5035 MFP
6. Insert the supplied EIO plate with cable protection. Make sure to route the card reader’s USB cable
through the plate.
ENWW Install USB card reader on internal USB port 13
