8. Connect and plug in the Compact Flash card reader’s power supply.

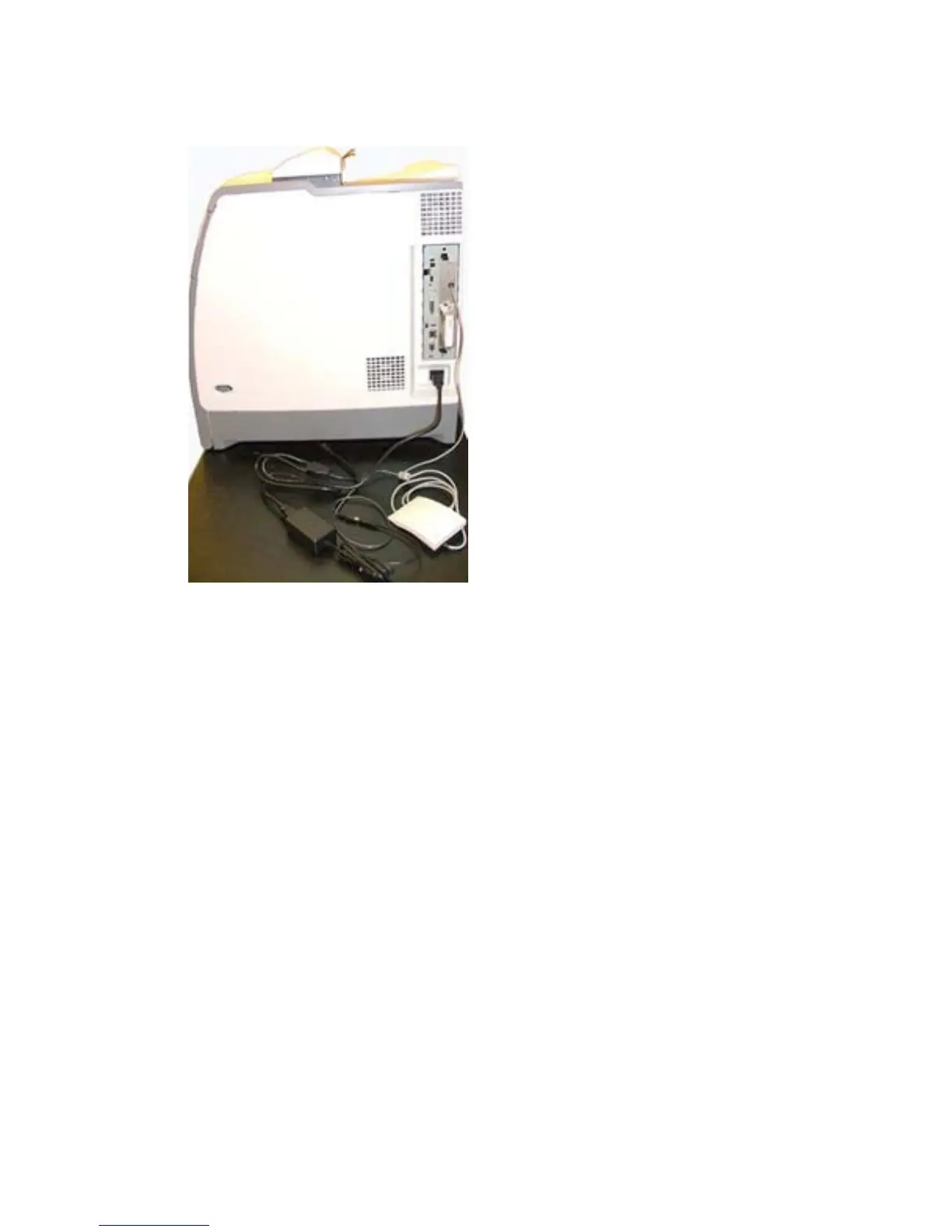

Figure 2-6 Connect Compact Flash power supply
9. Connect the power cable to the device.
10. Turn on the power to the device.
30 Chapter 2 External Compact Flash card readers ENWW
