HP Aruba 3810M Series

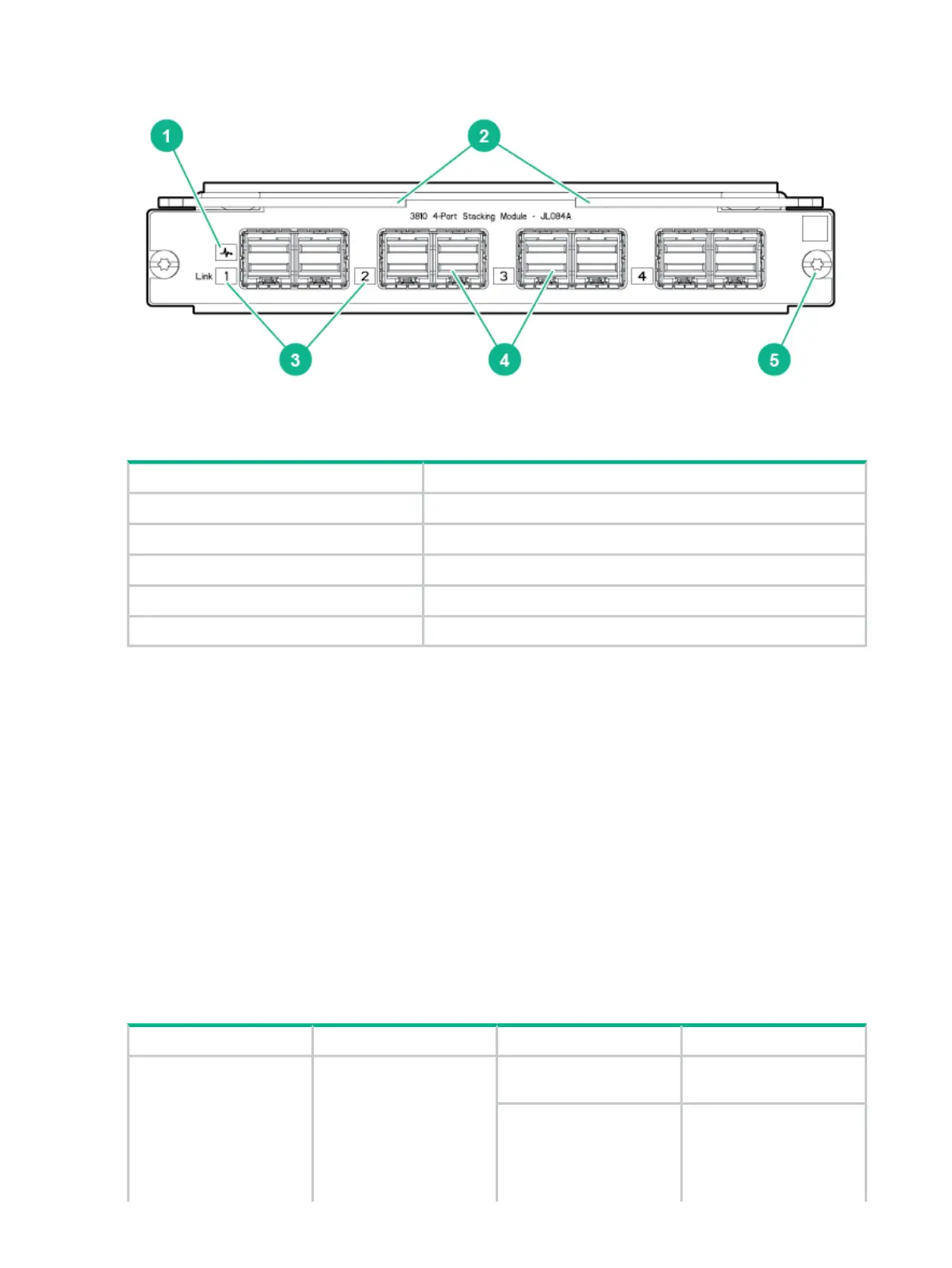

Figure 8 Front of 3810M 4-Port Stacking Module
Table 14 Front of 3810M 4-Port Stacking Module Label and Description
DescriptionLabel
Stacking Module Status LED1
Extractor Handles2
Link LEDs3
Stacking Connectors4
Retaining Screw5
The 3810M 4-Port Stacking Module JL084A has the following features:
• Four stacking connectors for connecting the 3810M switch to other 3810Ms in a stacked
topology (chain, ring, or mesh). Any of these available stacking cables can be used for these
connections:
◦ Aruba 3800/3810M 0.5m Stacking Cable (J9578A)
◦ Aruba 3800/3810M 3m Stacking Cable (J9579A)
◦ Aruba 3800/3810M 1m Stacking Cable (J9665A)
• LEDs, described in Table 15.
Stacking Module LEDs
The following LEDs are located on the 3810M Stacking Module itself and are only viewable from
the rear of the switch.
Table 15 Stacking Module LEDs
DescriptionModeFunctionName
Stacking module operating
correctly.
On GreenStatus of Stacking moduleStacking Module Status
Stacking module has
experienced a fault, or one
Slow Flash Orange
or more of the module ports
has experienced a fault. The
1.6 seconds cycle flash
24 Introducing the 3810M switches
