Table 20 Cable Connection for Chain Topologies Label and Description
DescriptionLabel
2-switch chain1
3-switch chain2
5-switch chain3
Ring Topologies
Up to 10 switches may also be connected in closed ring topologies. Ring topologies afford some
protection from a single failure because communication between the switches continues, in a
direction away from the failure.
A typical ring topology is illustrated in Figure 27 (page 50).

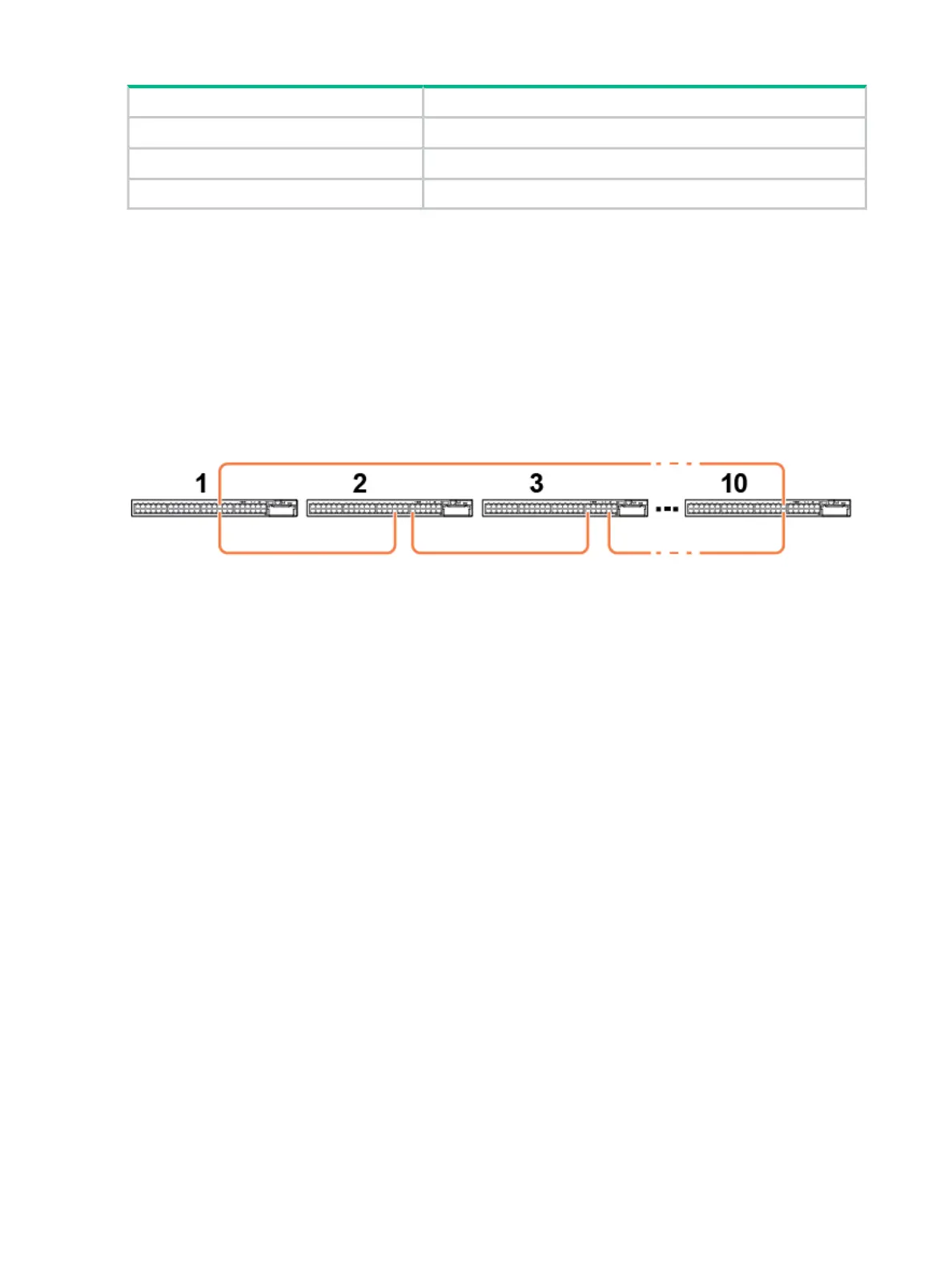

Figure 27 Typical Ring Topology
Cable connection examples for stacked rings are illustrated in Figure 28 (page 51).
50 Installing the Switch
