Figure 39 Replace Stacking Module.
Replacing the Flex Port Module
The 3810M Flex Port Module is not hot swappable.
To replace a Flex Port module:
1. Execute flexible-module <A/B> remove, or in case of stacking, stacking <member
Id> flexible-module <A/B> remove.
2. Remove the new Flex Port module from it’s packaging, being careful to not touch any of the
circuitry on the board.
3. Disconnect the cables and any installed transceivers from the failed module. You do not
need to disconnect the cables from the switches at the other ends of the cables.
4. Unscrew the two retaining screws on the module.
5. Pull on the two retaining screws toward you to disengage the module and pull the module
straight out.

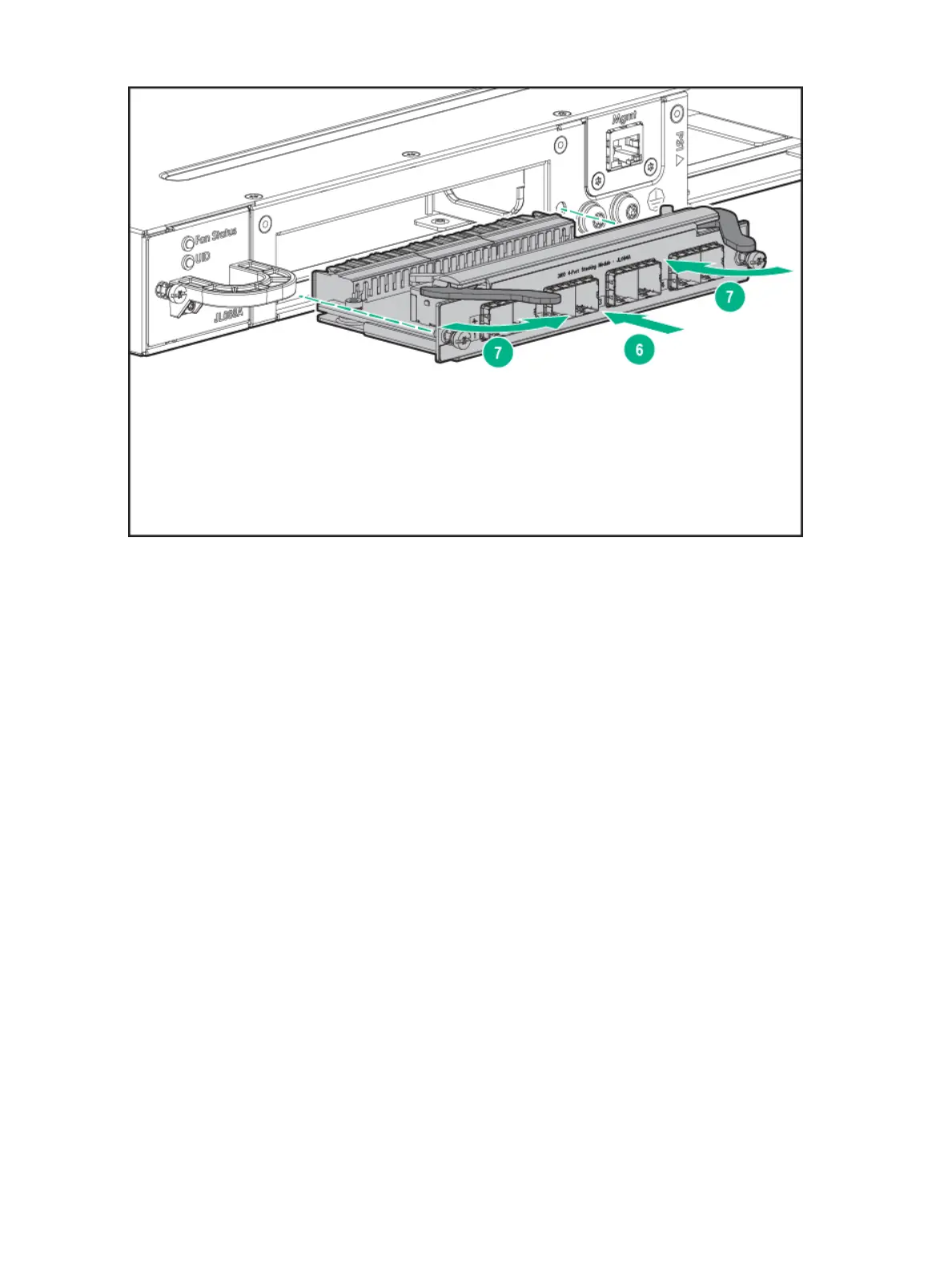

6. Insert the new Flex Port module fully into the slot as shown in the Replace Flex Port module..
The face plate of the module will be flush with the front face of the switch.
7. Engage the retaining screws and tighten them. Be sure to not over tighten the screws.
8. Make sure the module passes its self test. See Flex Port LED Error Indicators for the module
LED behavior that indicates correct installation.
