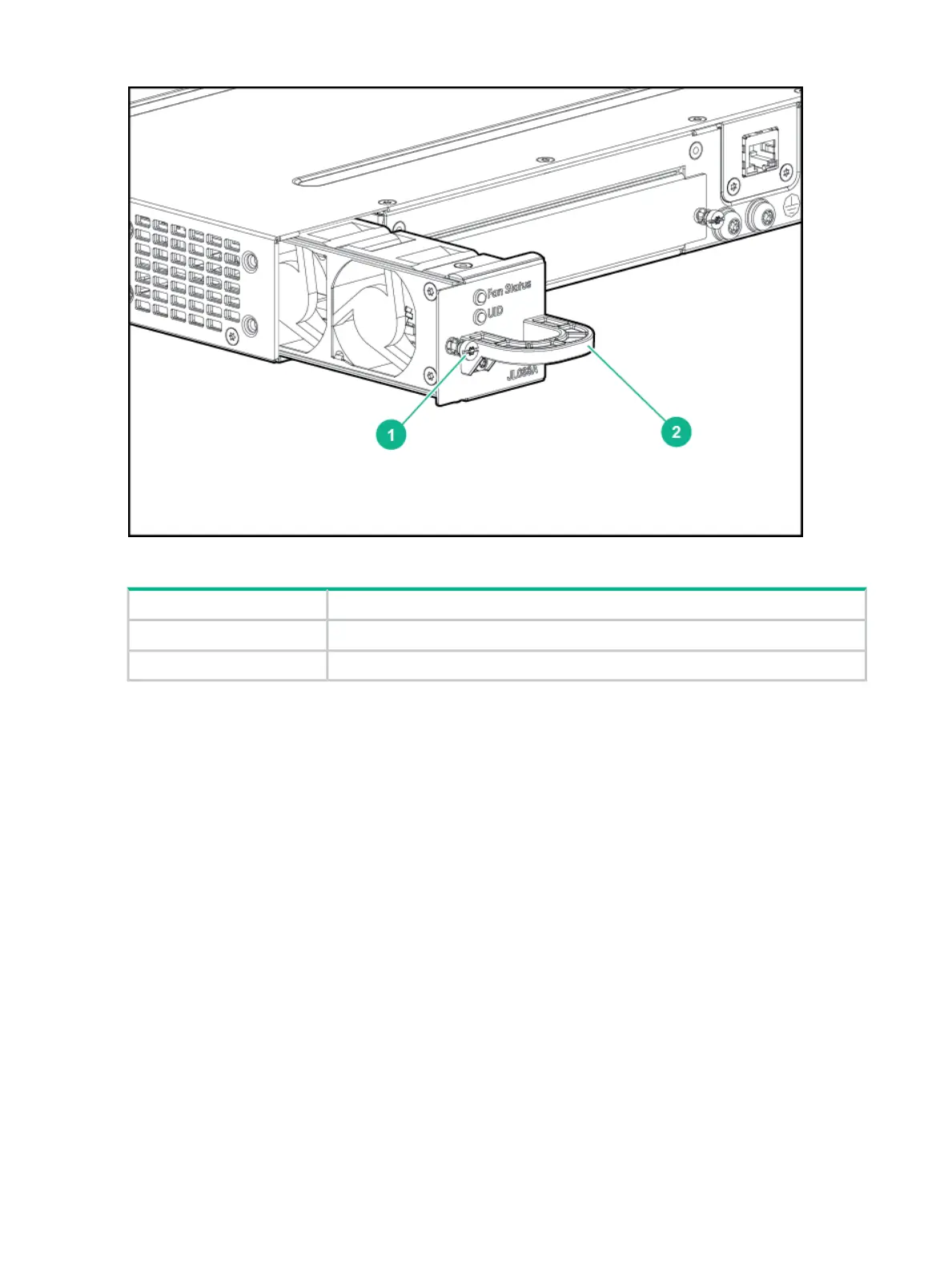

Figure 37 Fan tray retaining screw and handle
Table 24 Replacing Fan Tray Label and Description
DescriptionLabel
Retaining Screw1
Handle2
Replacing the Power Supply
If the 3810M switch is configured with redundant power supplies, the switch will not suffer any
loss of traffic or performance if a power supply fails. Replace the failed component as soon as
possible. The PS (Power Supply) LED will blink simultaneously with the switch Fault LED indicating
a power supply has failed.
To remove an AC power supply:
1. Remove the AC power cable from the failed power supply’s connector.
2. Grasping the handle of the failed power supply, release the locking mechanism by squeezing
the latch handle while removing the failed power supply.
